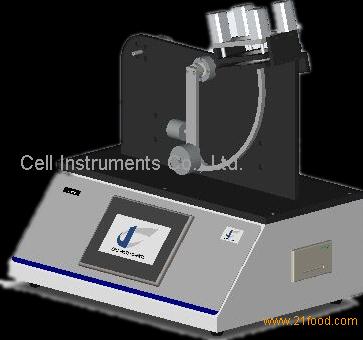

Pendulum Impact Tester ASTM D3420 is to measure the energy to burst and penetrate the center of a specimen, which is determined by loss in mechanical work capacity due to the expenditure of kinetic energy by a pendulum. The test gives a quantitative measurement of impact resistance properties of pendulum of films, sheets, composites, foils, paper and other materials.
Pendulum Impact Tester ASTM D3420 Features
l PLC control and touch screen operation
l Pneumatic specimen clamping and pendulum automatic release
l Data auto statistics, storage
l Adjustable range and electronic measurement
l Microprinter
l RS232 port and software (Optional)

Pendulum Impact Tester ASTM D3420 Technical Specifications
Impact Energy 1 J, 2 J, 3 J (Standard)
Resolution 0.001 J
Impact Head Size Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization is available)
Specimen Clamp Diameter Ф89 mm, Ф60 mm
Specimen Size 100 mm x 100 mm or Ф100 mm
Gas Supply Pressure 0.6 MPa
Port Size Ф6 mm
Power Supply AC 220V 50Hz
