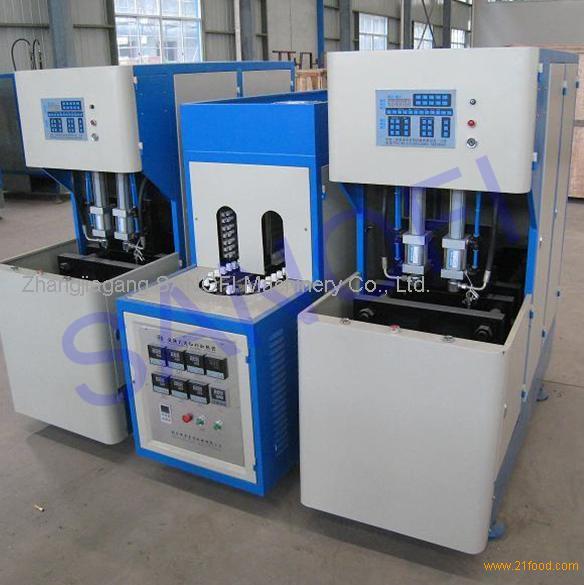

0.1L-2L Semi-automatic Bottle Blowing machine

FOB Price:Price can be negotiated

Update Time:2023-05-03

Contact Supplier

Product Description

Product Description:

This machine is suitable for producing PET plastic containers and bottles from 10 to 2000ml.

It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle

cosmetics,wide-mouth bottle etc.
1, Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared Oven to heat

the perform ,the perform rotated and heated equally.
2, The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the

different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing

large irregular shaped bottles.
3, The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4, The machine can be operated in the step-by-step mode and the semi-auto mode.
5, The machine is small with low investment, easy and safe to operate .

Technique parameter:

Items
SF-1500

One blower and one oven

SF-1500

Two blowers one oven

Clamping Force 10 T 10 T

Clamping Stroke 160 mm 160 mm

Max. Stretching Stroke 360 mm 360 mm

Number of Cavities 2 cavities 1pc 2 cavities 2pcs

Theotitical Output 0.1-1.5L 660bph-880bph 0.1-1.5L 1000-1600bph

Max. Mould Thickness 220mm 220mm

Mould Plate Size 470mm*350mm 470*350mm

Voltage Standard as customer required as customer required

Total Power 3-10kw 5-15kw

Min Air Consumption 1.0m3/min 3.0Mpa 1.6m3/min 3.0Mpa

Blowing Moulding Machine Dimension 1450mm*600mm*1700mm 1pc 1450mm*600mm*1700mm 2pcs

Preheater (Oven) Dimension 1800mm*700mm*1400mm 1800mm*700mm*1400mm

Net Weight 1.5T 2.0T

Container Volume 0.01-1.5L

Neck Diameter Range 8-60mm

Container Diameter 20-160mm

Container Height 10-360mm

Other Products

Automatic Shrink wrapping machine

Sleeve shrink labeling machine

0.1L-2L Semi-automatic Bottle Blowing machine

Automatic Bottle Blow Moulding Machine

Company Profile

Name: Zhangjiagang SANOFI Machinery Co., Ltd.

Main Products: mineral water and purified water production line,carbonated beverage production line, 3 gallons &5 gallons production line, flat and tube UHT device, CIP system.

Business Type: Manufacture & Trade & Service

Total Employees: 50 ~ 100

Established Year: 1995

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: No. 88 Lejiang Road, Leyu Town, Zhangjiagang City

ZHANGJIAGANG SANOFI MACHINERY CO.,LTD was founded at 1995,and starting with beverage machinery.It is located in Leyu Town, Zhangjiagang city, Jiangsu Province. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .

Items	SF-1500 One blower and one oven	SF-1500 Two blowers one oven
Clamping Force	10 T	10 T
Clamping Stroke	160 mm	160 mm
Max. Stretching Stroke	360 mm	360 mm
Number of Cavities	2 cavities 1pc	2 cavities 2pcs
Theotitical Output	0.1-1.5L 660bph-880bph	0.1-1.5L 1000-1600bph
Max. Mould Thickness	220mm	220mm
Mould Plate Size	470mm*350mm	470*350mm
Voltage Standard	as customer required	as customer required
Total Power	3-10kw	5-15kw
Min Air Consumption	1.0m3/min 3.0Mpa	1.6m3/min 3.0Mpa

Blowing Moulding Machine Dimension	1450mm600mm1700mm 1pc	1450mm600mm1700mm 2pcs
Preheater (Oven) Dimension	1800mm700mm1400mm	1800mm700mm1400mm
Net Weight	1.5T	2.0T

Container Volume	0.01-1.5L
Neck Diameter Range	8-60mm
Container Diameter	20-160mm
Container Height	10-360mm
