0.7MW,1.4MW automatic grated coconut fired hot water boiler,China Yuanda boiler price supplier

0.7MW,1.4MW automatic grated coconut fired hot water boiler

FOB Price:Price can be negotiated

Production Capacity:2000 Set/Sets per Year

Payment Terms: US $3,000 - 50,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

Lass="description"> 0.7MW,1.4MW automatic grated Coconut fired hot water boiler
1.Three-pass structure
2.Fire-water tubes
3.1-20ton

Product Description

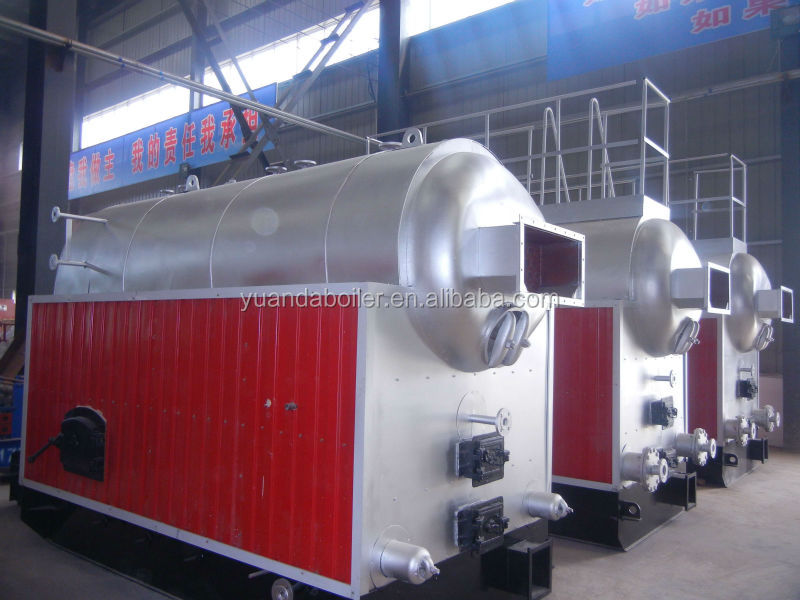

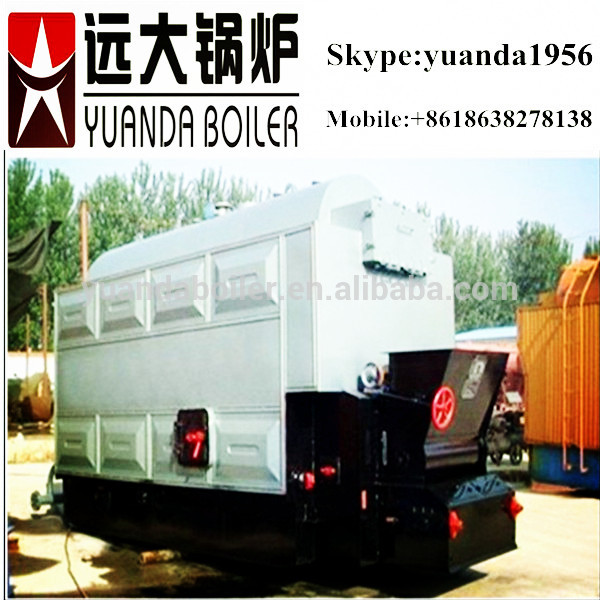

0.7MW,1.4MW automatic grated coconut fired hot water boiler

Features:

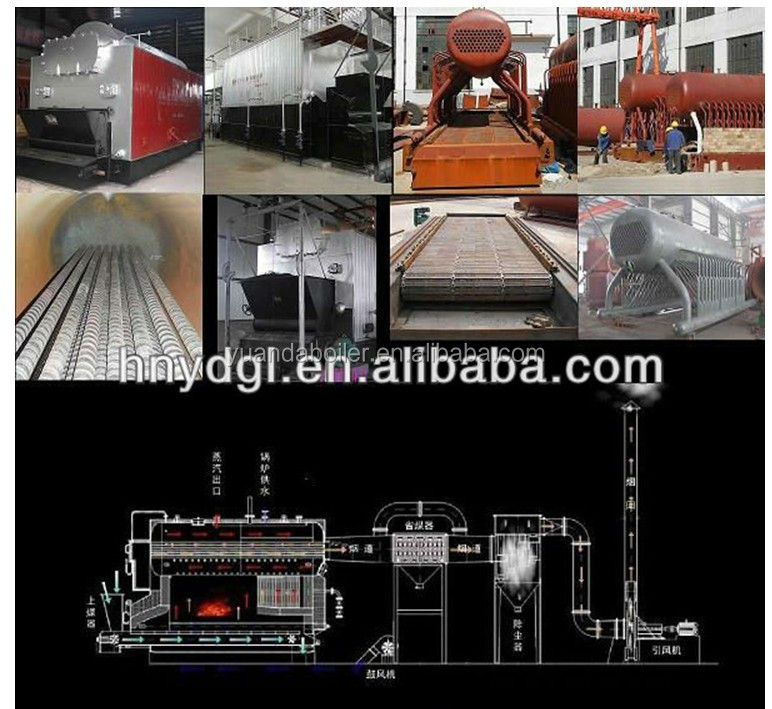

1. 0.7MW,1.4MW automatic grated coconut fired hot water boiler here belongs to DZL boiler series

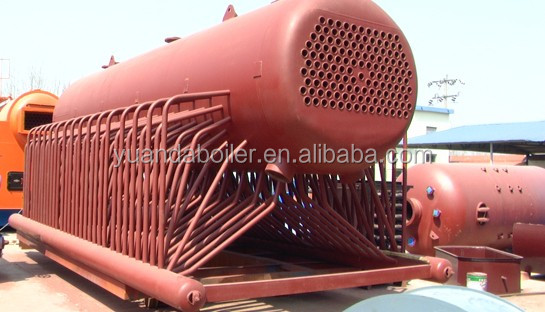

2.Spirally corrugated tubes are specially designed to strngthen heat tansfer

3.Low pressure operation, horizontal type

4.We provide two water pumps to assure the boiler's normal running

5.New type of arch to strengthen fuel burning and improve burning efficiency

6.The best customized boiler type to improve the economical efficiency

Model	DZL0.7-0.7/95/70	DZL1.4-0.7/95/70	DZL2.8-0.7/95/70
Rated thermal power(MW)	0.7	1.4	2.8
Rated pressure(M pa)	0.7	0.7	0.7
Outlet water temperature( °C )	95	95	95
Return water temperature( °C )	70	70	70
Efficiency(%)	80.31	80.9	80.96
Fuel consumption(kg/h)	110	222	432
Fire grate area( m2 )	1.85	3.4	5.18
Exhaust gas temperature( °C )	165.4	180	154.6
Delivery weight(t)	14.2	22.6	27
Boiler dimension(mm)	548824003330	590031003686	692032003748

Our Services

Guarantee and After-sale service

l One year guarantee for boiler body and Accessories

l 24 hours technical support by email

l Engineers available to service overseas

Quality control

Yuanda boiler company is a professional boiler,pressure vessel manufacturer with 58 years of experience.

The product goes through ISO certification, all welders have the welder certification, so their expertise level

are excellent; besides, the flaw detection technologies are adopted to assure the product quality.

Company Information

Condition:	New	Type:	Natural Circulation	Usage:	Industrial
Structure:	fire-water tube	Pressure:	Low Pressure	Style:	Horizontal
Fuel:	grated coconut	Place of Origin:	Henan China (Mainland)	Brand Name:	Yuanda boiler
Model Number:	DZL	Output:	Hot Water	Dimension(LWH):	548824003330
Weight:	14.2t	Certification:	ISO	After-sales Service Provided:	Engineers available to service machinery overseas
Color:	red, green, sliver,blue	boiler type:	0.7MW,1.4MW automatic grated coconut fired hot water boiler

Company Profile

Name: Henan Yuanda Boiler Co., Ltd.

Main Products: steam boiler,hot water boiler,coal boiler,oil boiler,gas boiler

Business Type: Manufacturer, Trading Company

Total Employees: 201 - 300 People

Established Year: 2007

Main Markets: Domestic Market, Africa, Southeast Asia, South America, South Asia

Address: East Hanghai Road

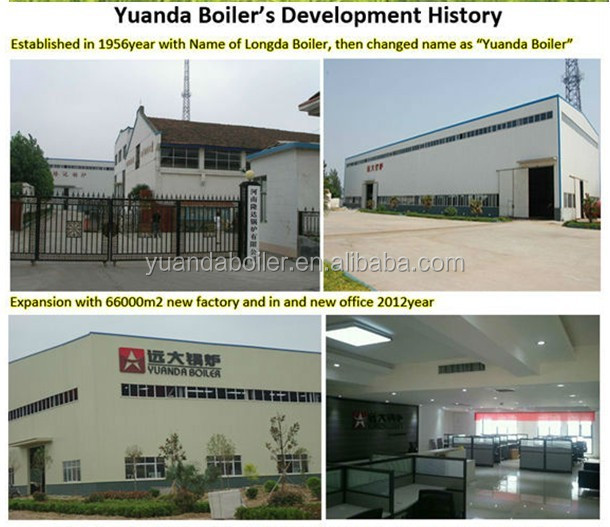

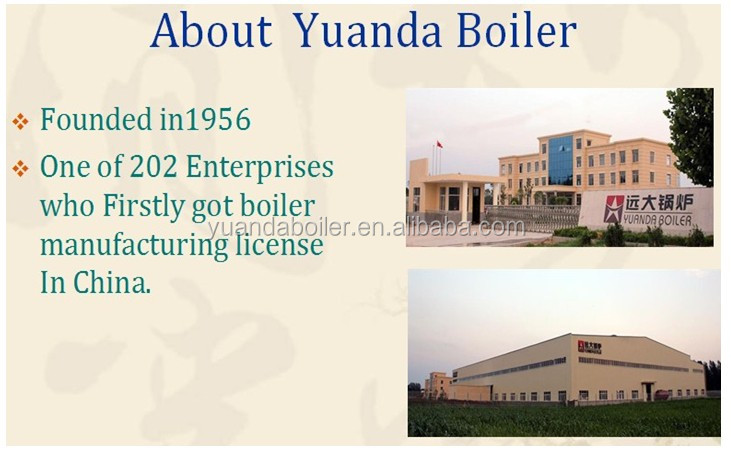

Our company was established in 1956, as one of the leading enterprises firstly obtaining the national boiler manufacturing license in China.

We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include more than 150 kinds:
1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
2. WNS series oil/gas fired boilers (0.3-20T/H, 0.35-14MN)
3. SZL series water tube biomass boilers (2-35T/H, 1.4-29MW)
4. LNB series gas boilers (0.3-10T)
5. LHS series vertical gas/oil fired boiler (0.3-1T)
6. AAC brick/block making machine

We sell well in more than 30 provinces and regions in China and in Southeast Asia, Asia, Africa, South America, the Middle East, Russia, etc. more
