Combination Bagging Scale BT-10-2B-01X
Application for small dry granule
1.3/2.5L Hopper
CE

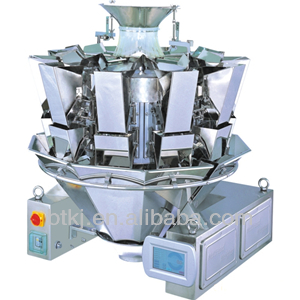

10.4" Color Touch Screen Dustproof Combination Bagging Scale of Packing Machine For Chicken feet BT-10-2B-01X

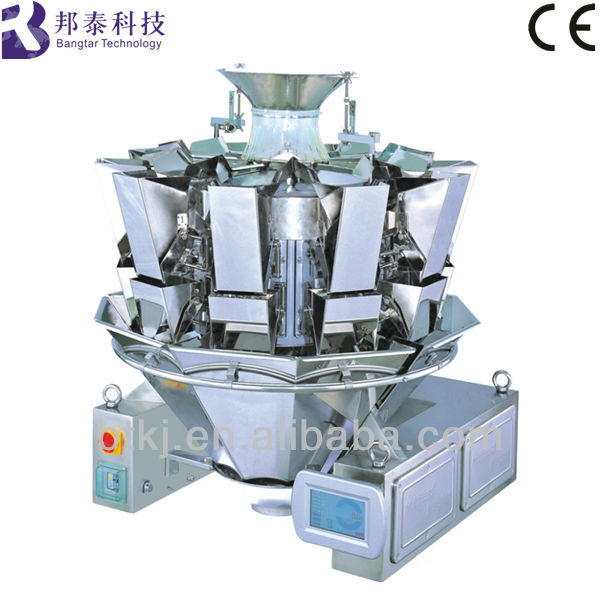

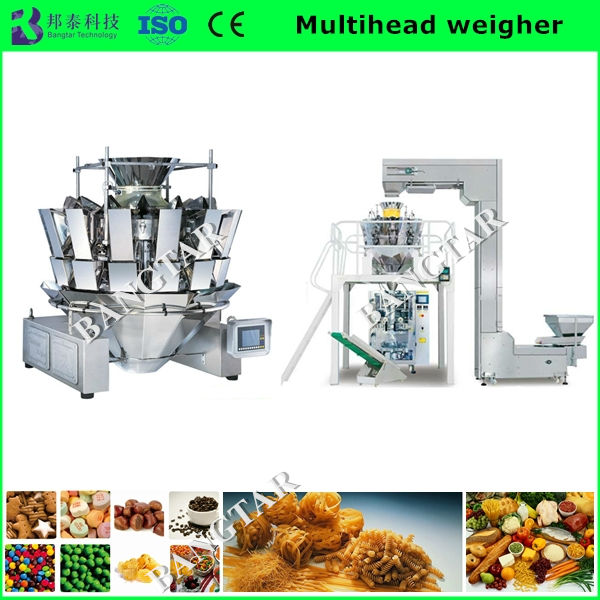

Standard 10-heads multihead weigher 1.3/2.5L hopper
Special Features:
A) High running stability, best sale for 10 years.
B) Full stainless steel construction, waterproof, dustproof, rustproof.
C) Simple operation, 10.4" color touch screen with 3 language.
D) 1.3L, 2.5L hopper for optional.
Main Features:
A) The most efficient and accurate weight calculation by computer when compared to manual process.
B) Stagger dump avoid materials pile up.
C) User friendly touch screen quipped with multiple language.
D) Adjustable backlight control for vision protection

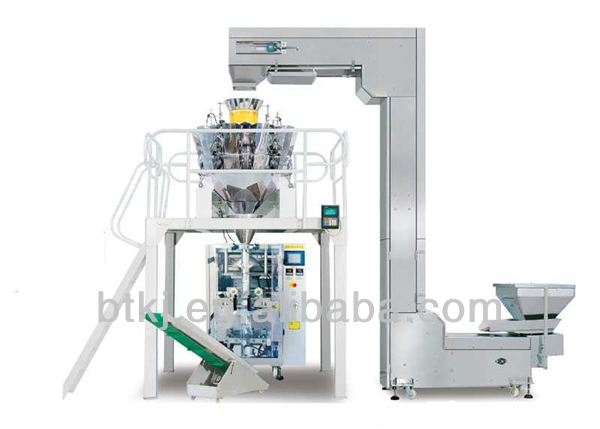

E) Compatible with single Packaging Machine for automatic weighing.
F) Instant hopper vibration index for better control.
G) 99 preset programs for multiple tasks.
Application:
It is suitable for weighing of small dry granule and irregular shape products, such as candy, peanut, pistachio nuts, green beans, jelly, rice grains cereal, small cookies/ biscuit, coffee beans, etc. it`s also suitable for small hardware, plastic & rubber parts etc.
Technical Parameters:
Name | Standard 1.3L 10 heads multihead weigher | Standard 2.5L 10 heads multihead weigher |
Model | BT-10-2B-01X | BT-10-2B-03X |
Weighing range | 25g-500g*n | 25g-500g*n |
Weighing accuracy | ±0.5g-2g | ±0.5g-2g |
Max. speed | 70 batch/minute | 70 batch/minute |
Electric requirement | 220V/ 50Hz/ 1.5kW | 220V/ 50Hz/ 1.5kW |
Hopper volume | 1.3L | 2.5L |
Display | 10.4 inch color touch screen | 10.4 inch color touch screen |

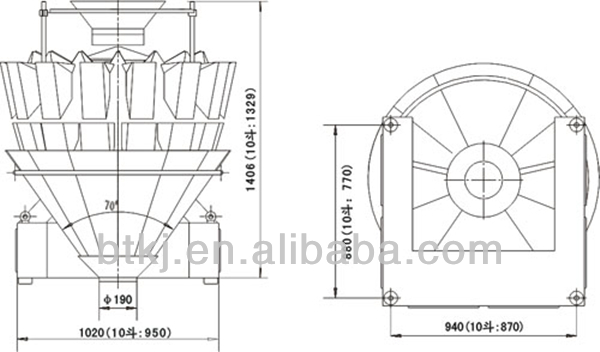

Packing size | 1436*1086*1258mm | 1436*1086*1388mm |

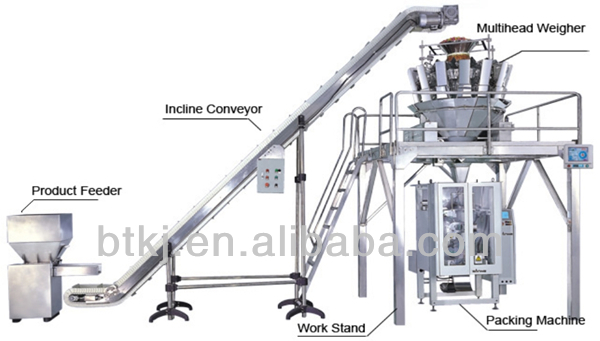

Related Equipment:
Product Feeder, Incline Conveyor, Work Stand, Packaging Machine, Check Weigher,
Quick Inquiry:
Type: |
Other
|
Condition: |
New
|
Application: |
Food,Commodity,Medical,Chemical,Machinery & Hardware
|
Packaging Type: |
Stand-up Pouch,Film,Pouch
|
Packaging Material: |
Plastic,Paper
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220V/50Hz
|
Power: |
1.5kW
|
Place of Origin: |
China (Mainland)
|
Brand Name: |
Bangtar
|
Model Number: |
BT-10-2B-01X
|
Dimension(L*W*H): |
1436*1086*1258mm
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Range of weighing precision: |
25g-500g*n
|
Weighing accuracy: |
±0.5g-2g
|
Maximum weighing speed: |
70batch/minute
|
Hopper volume: |
1.3L
|
Display: |
10.4" color touch screen
|
Material: |
Stainless Steel
|
Waterproofing grade: |
IP 64
|
Preset number for product: |
99 kinds
|
![]() |
![]() |
![]() |
![]() |
