10 micron water filter PP membrane filter cartridge for coconut water,China TS Filter price supplier

10 micron water filter PP membrane filter cartridge for coconut water

FOB Price:Price can be negotiated

Production Capacity:500000 Piece/Pieces per Month

Payment Terms: US $1 - 10 / Piece

Update Time:2014-09-16

Contact Supplier

Product Description

Made of 100% high quality polypropylene material
Micron:0.1um
Length:10"
ADAPTER: DOE
Gakset: Silicone/EPDM

Product Description

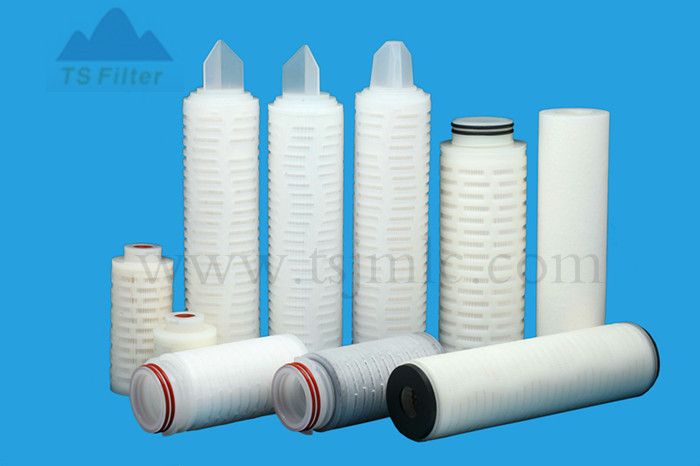

Membrane Filter PP Pleated Filter Cartridge

Complete Polypropylene structure

Made of 100% high quality polypropylene material

Wide chemical compatiblity

Can be used in the solvent which PH value is from 1 to 13

No media migration into the process fluid

All the material have passed the migration test

Effective Filtration Area

0.65M2 per 10"

Materials

Filter Media	Polypropylene Membrane
Support Layers	Polypropylene
Inner core	Polypropylene
Outer Support	Polypropylene Cage

Cartridge Dimensions (Nominal)

Outer Diameter	69mm (2.75")
Inner Diameter	33mm (1.30")
Length	10"- 254mm 20"- 508mm 30"-762 mm 40"- 1016mm
Note	Length is based on DOE Adapter)

Cartridge Purity

Free of surfactants, resins, binders and adhesives.
Standard: Clean and flushed with Pyrogen-free water.
Rinse: up to 17-18MΩ.cm with a minimum of throughput

Typical Applications

Pharmaceuticals; APIs; Biologics;
Fermentation Broths;
Food & Beverages, Wine, Beer, Mineral Water;
Semi-Conductor, LCD Display; Discs.
Fine Chemicals;

Pharmaceuticals; APIs; Biologics;

Fermentation Broths;

Food & Beverages, Wine, Beer, Mineral Water;

Semi-Conductor, LCD Display; Discs.

Fine Chemicals;

Operating Conditions

Normal Operating Temperature	Up to 55°C (131°F)
Max.Operating Temperature	80°C (172°F)atP≤1.0 bar (14psi)
Normal Flow direction	4.2 bar (60 psi) at 25°C (77°F)
Reverse flow direction	2.1 bar (30psi) at 25°C (77°F)
PH Value compatibility	1-13

Packaging & Shipping

Package:

Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton , or according to customer's requirements.

Shipping:

By air/By sea/By express etc....

Our Services

1. Free Samples are available for customer's test

2.Quick delivery of the goods

3.Quick reply of your E-mail

4.Technicial Support

5. OEM Service

Company Information

Hangzhou Tianshan Precision Filter Material Co., Ltd., founded in 2001 in Hangzhou, is one of China’s largest professional manufacturers of precision folded filter cartridges, filter membranes, filter cloth, filter bags and stainless steel filters . Our products are widely used for liquid and gas filtration in pharmacy, food and beverage, chemical engineering, electronics and other industries.

FAQ

Q: How can we get the quotation of flter cartridges

A: Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....

Q: What's the minimal quantity requested?

A: We do not the requirement on teh minimal demand.Thank you.

Q: How long about your delivery ?

A: The order is always arranged in 10 working days as soon as receiving the deposit or payment

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	TS Filter	Model Number:	DOE, 222, 226, 214, 215
Material:	polypropylene membrane	Product:	Membrane Filter PP Pleated Filter Cartridge	Length:	5/10/20/30/40/50 inch
Micron:	0.1/0.22/0.45/0.65/1/3/5/10/30/50/60	Application 1:	Water Filtration	Applicaton 2:	Food and Beverage
Application 3:	Fine Chemical	Certificate:	FDA;EC;ISO9001 Etc.	Adapter:	DOE, 226/FIN, 222/FIN, 222/FLAT SEAL...
Brand:	T.S.Filter

Other Products

Water Filter Parts,Refillable Type Refillable Water Filter Cartridge Housing

single and double cartridges Water Filter Housing

pp filter material pleated water filter cartridge 0.2micron

Micropore Pleated PP membrane water filter cartridge

Company Profile

Name: Hangzhou Tianshan Precision Filter Material Co., Ltd.

Main Products: Membrane Filter Cartridges,Pleated PP Membrane Filter Cartridges,Pleated PES Membrane Filter Cartridges,Pleated PTFE Membrane Filter cartridges,Pleated PVDF Membrane Filter cartridges

Business Type: Trading Company

Total Employees: 11 - 50 People

Established Year: 2001

Main Markets: Eastern Europe, South Asia, Southern Europe, Western Europe, Eastern Asia

Address: No. 2630 Nanhuan Road, Binjiang district

Hangzhou Tianshan Precision Filter Material Co., Ltd. is an ISO9001:2000 certified company.

Since 2001, we have focused on manufacturing pleated membrane filter cartridges and filtration equipment. Our sincere service and excellent quality win the trust of customers. Many famous pharmaceutical groups in China choose our products to purify the water, such as:
Lijun Pharmaceutical Co., Ltd. - Listed on Hongkong with over 2,000 employees;
Harbin Pharmaceutical Group - one of the top 500 large scale groups in China.

Our main products:
1. Pleated membrane filter cartridges: PP, PES, PVDF, PTFE, nylon (PN6, PN66), ACF (activated carbon filter), melt blown filter, string wound filter, etc.
2. Antiseptic shelter filter
3. Filtration equipment: made of stainless steel (SS304, SS316)

Applications:
our products can be widely used in many industries including medicine production, food and beverage production, biological engineering, microelectronic industry, fine chemical industry, galvanization, super purification of water, sewage processing, etc.

Quality Assurance:
Complete quality management system;

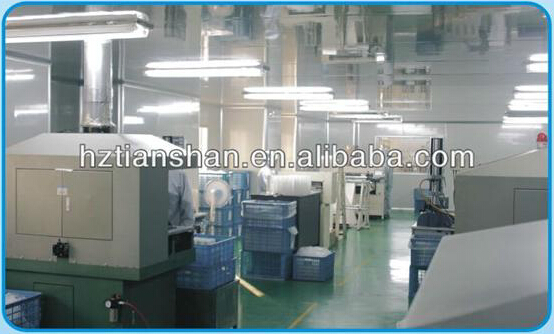

Workshop organized as per pharmaceutical criterions (GMP);
Materials reach pharmaceutical grade;
Membranes are made by American companies, like MILLIPORE, PALL, etc. (certificates are available);

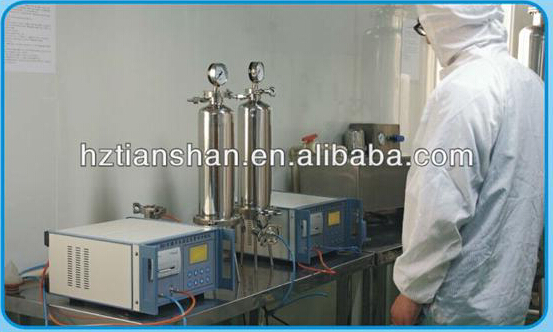

Integrity testing;
Strictly inspected by advanced instrument before packing.

Welcome to visit us. more
