10 tons ice making machine for Fish keeping fresh,industrial ice making machines,China HOILINGCOOL price supplier

10 tons ice making machine for Fish keeping fresh,industrial ice making machines

FOB Price:Price can be negotiated

Production Capacity:250 Set/Sets per Month

Payment Terms: US $2,000 - 1,000,000 / Set

Update Time:2014-09-18

Contact Supplier

Product Description

10 tons ice making Machine for Fish keeoping fresh,industrial ice making machines

Product Name: 10 tons ice making machine for Fish keeoping fresh,industrial ice making machines

Advantages

Advantage

Flake Ice Machine - 10T/Day Flake Ice Machine for Fish keeoping fresh

1. To ensure quality control.

2. The best price. 3. New design of Flake ice machine.

4. Easy operation. 5. With over 20 years of professional engineers.

6. We are supplied the Evaporator to the relevant ice machine factory at domestic market.

Product Description

10Tons/Day Flake Ice Machine

Material Description:

1. Compressor:	Danfoss hermetic scroll compressor
2. Evaporator: (Self-Made)	(Self-Made) Efficient heat-exchanging alloy tank
	A. Top and bottom base: Cast aluminium alloy
	B. Reducer: KOKI (worm gear and worm wheel)
	C. Ice Blade: 304 stainless steel spiral blade
	D. Water tank: 304 stainless steel insulated tank
	E. Anti-corrosion vertical circulating water pumps & Anti-corrosion pulse-metering pump
3. Condenser:	High-efficient air cooling finned condenser
4. Expansion Valve:	ALCO(TI series)
5. Refrigerant:	Environmental R404A
6. Controller:	LG PLC
7. Power Supply:	3N/380V/50Hz
8. Water Supply:	Diameter 1/2’’ , Pressure 0.15 -0.5MPa

Ice Machine Parameter Description:

Model	KC-10T	Production/Day	10000kgs per day(in 24 hours)
Ref.Capactiy(kcal/H)	44827	Total power(KW)	31.5KW
Power Supply	380V/3PH/50HZ	Material	S/S304
Compressor	Danfoss/ Maneurop/ Hanbell/ Bitzer	Evaporating Tem( °C )	-22 °C
Refrigerant	R202/R404A	Cooling Way	Water Cooling
Unit Size	218018401620mm	Ice Bin Size
Weigh(exclude bin)	850kgs

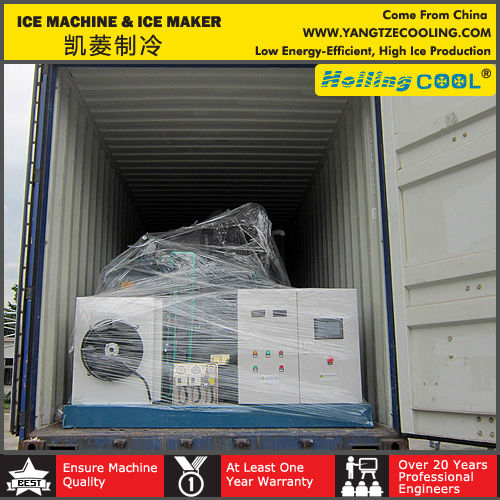

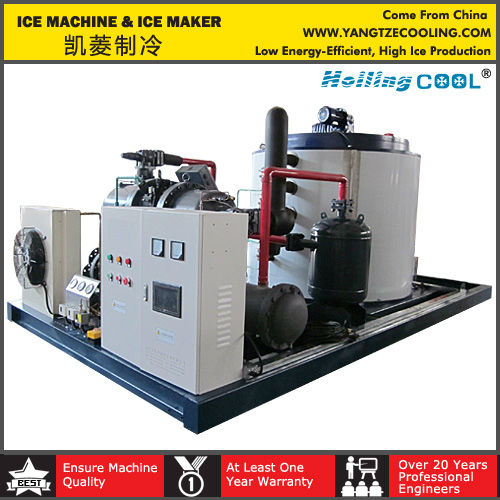

Detailed Images

Buying Guides

Check below for more information on placing an order

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, payment term etc.
3. Sales send the Proforma Invoice with company seal.
4. Customer makes the payment for deposit and send us Bank receipt.
5. During Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time.
6. Clients make payment for balance and Ship the goods.
7. When machine on your hand and satisfied with them then order is done.
8. Feedback to us about Quality, Service, Market Feedback & Suggestion. And we can do better.

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, payment term etc.

3. Sales send the Proforma Invoice with company seal.

4. Customer makes the payment for deposit and send us Bank receipt.

5. During Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time.

6. Clients make payment for balance and Ship the goods.

7. When machine on your hand and satisfied with them then order is done.

8. Feedback to us about Quality, Service, Market Feedback & Suggestion. And we can do better.

We are supplied the Evaporator to the relevant ice machine factory at domestic market.

Place of Origin:	Guangdong China (Mainland)	Brand Name:	HOILINGCOOL	Model Number:	KC-10T
Type:	Meat Processing Machinery"> Meat Processing Machinery	After-sales Service Provided:	Engineers available to service machinery overseas	Power:	31.5Kw
Size:	218018401620mm	Flake thickness:	1.5mm-3.0mm	cooling Way:	Water cooled
Ambient temperature:	25°C	water temperature:	15°C	Ice blade:	304 stainless steel spiral blade
Advantage:	Quality & Price	Application:	Food/Marine Fisheries Processing/Slaughtering Industry/Concrete Mixing	Weight:	1360Kgs
