NO .

Name

Spec .

Description

Qty

1

Self-priming pump

15t/h

SUS304,H=24m

1

2

Plate heat exchanger

10m ²

SUS304

1

3

Double filter

SUS304 , 150meshes

1

4

Milk Storage Tank

2000L

SUS304, double layer,Inner shell 3mm,outer shell 1.5mm. Manhole,

Thermometer,Vertical blender, Anti vortex board.Adjustable legs.

Dimension:1340*1500*3410(mm),Inlet&outlet diameter:51

2

5

Milk pump

5T/H

SUS304, H=24M.

1

6

High-speed Emulsify tank

500L

SUS304,Inner shell 3mm,outer shell 2mm,Motor 7.5kw,  double layer,

heat insulation, thermometer, CIP clearing head, high-speed emulsify head.

1

7

Milk pump

5T/H

SUS304, H=24M.

1

8

Batching tank

1000L

SUS304, double layer,Inner shell 3mm,outer shell 1.5mm. Manhole,

Thermometer,Vertical blender, Anti vortex board.Adjustable legs.

Dimension:1060*1220*3150(mm),Inlet&outlet diameter:51

2

9

Milk pump

5T/H

SUS304, H=24M.

1

10

Pipe filter

  SUS304,2 5 0mesh

2

11

Pasteurizer

1000L

1

12

Homogenizer

1000L

1

13

300s holds tank

1000L

SUS304,Three layers

1

14

Fermentation bacillus tank

200L

SUS304,Inner shell 3mm,outer shell 2mm,Miller jacket plate  1.5mm,

Diameter of inlet and outlet:38mm,Blending Speed:40r/min

1

15

Milk pump

5T/H

SUS304, H=24M.

1

16

Fermentation tank

1000L

SUS304,Inner shell 3mm,outer shell 2mm,Miller jacket plate 1.5mm.

 Thermometer ,.Adjustable legs.Pressure In tank 0.2MPa,

Pressure in jacket 0.3MPa

4

17

Yogurt conveying pump

1t/h

SUS304

1

18

Plate heat exchanger

12m ²

SUS304

1

19

Finished product tank

1000L

SUS304, double layer,Inner shell 3mm,outer shell 1.5mm. Manhole,

Thermometer,Vertical blender, Anti vortex board.Adjustable legs.

Dimension:1060*1220*3150(mm),Inlet&outlet diameter:51,Power=0.75kw,

2

20

Yogurt conveying pump

2t/h

SUS304

1

21

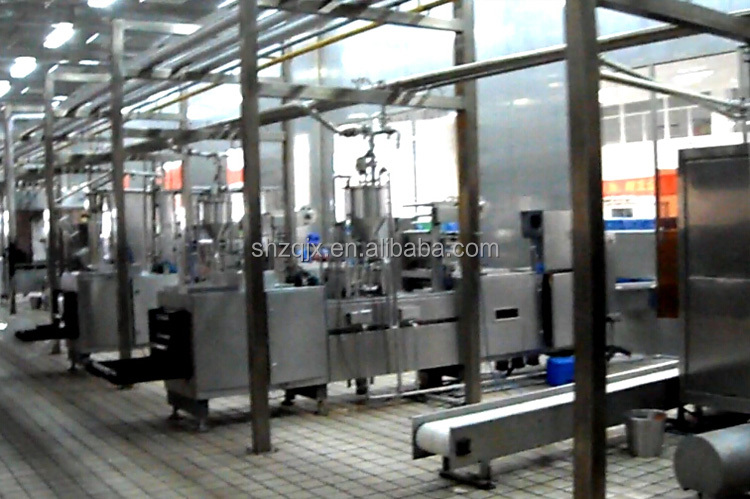

Yoghurt Cup Filling &

Sealing Machine

Volume: 50 — 300ml/cup,Cup diameter:50-60mm,Capacity:2000--3000 Pcs/h,

Thickness of the film:0.055 — 0.065mm,Pneumatic:0.6 m ³ /min

,Power:5.5kw,Voltage:380V/50Hz 3 phase 4 lines,Machine material:Stainless steel,

Al-alloy 304,Weight:800kg,Dimension:.L3000*W800*H1680mm,

1

22

CIP cleaning system

500L

SUS304, semi-automatic control, automatic temperature control

cleaning fluid, 500L acid, lye , hot water , cleaning water tank,steam pressure

reducing valve, pneumatic steam control valve, stainless steel frame, stainless steel

pipe valves, fittings, 100L concentrated acid, concentrated lye each one tank,

diaphragm two sets, 15T/H CIP process pump, stainless steel electrical control

cabinet,Plate heat enchanger.20T/H double filter

1

23

Compressor

1

24

Chiller Plant

Cooling water to 2 °C ,water tank,water pump

1

25

Oiler Steam Boiler

0.5t/h

Burner,water pump,oil tank,electric box,valves,Water softener

1

26

Cooling warehourse

4 0m ²

Insulation materials,Wind chiller

1

27

Pipe and valve

SUS304

1

28

Electrical  cabinet

Stainless steel body

3
