100tons Maize flour meal production line:
1. Certified by CE test;
2. Low price, high quality;
3. high quality,low power.
Name: 100tons complete set of Maize flour meal production line.
We are a professional manufacturer of complete Maize flour meal production line .
We can design and produce different capacity from 20-500tons/day for different user.
Description of this whole procedure:
(1) Cleaning system : Screening→Destoner→Magnetic separator→ Dampening
(2) Peeling and crushing system: Peeling machine → germ separator
( 3 ) Flou r milling system : Milling → Sifting
( 4 ) Packing system : pack 1kg -50kg per bag .
(5) Other related machines: Bucket elevator, Screw conveyor, Air lock, Electric control cabinet,etc.
Model |
6FYDT-100 |
Output |
100 tons/24h |
Main machines |
Vibrating sifter, Gravity classifying destoner, Dampener, Corn peeling crusher, Degerminator, Pneumatic Roller mill ,double-section plansifter, Packing machine, and other full complete set of accessories. |
Main products and extraction rate |
Corn flour: 70-75% Corn bran & germ:15-20% It also can produce other size corn flour. |
Products quality |
Sand content:≤0.02% Magnetic m e t a l content:≤0.003% Moisture content:≤13.5-14.5% Fat content :≤2.5% |
Power |
217kw/h |
Size |
30*8*10m |

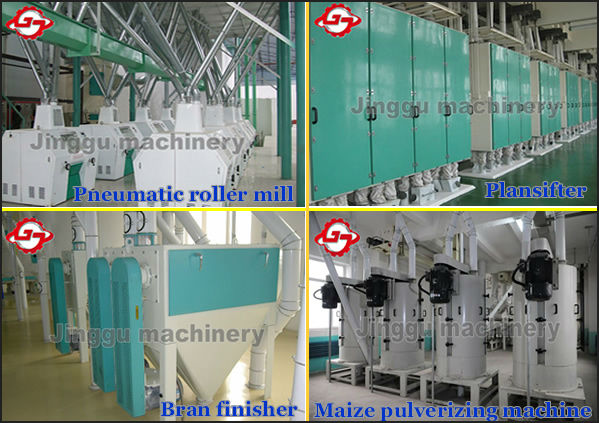

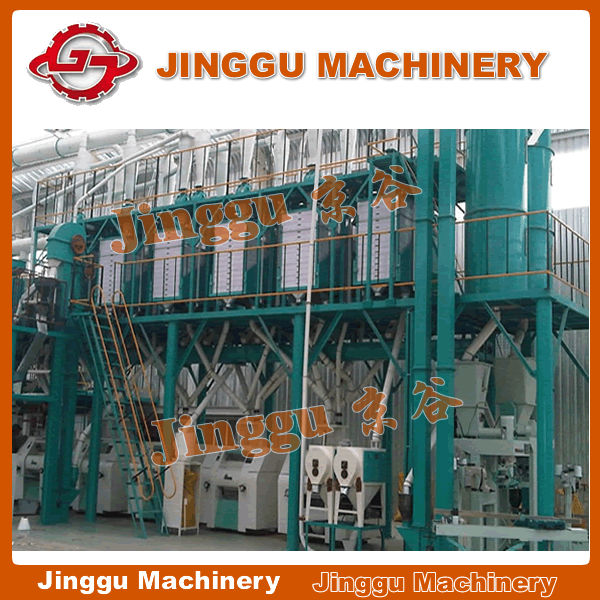

Factory photos of this 100tons Maize flour meal production line:
1. Cleaning system:
--Vibrating sifter: remove the light & small & middle impurities.
--Magnetic separat or: remove the irom impurity.
--Gravity classifying destoner: remove the big and heavy stone.
--Maize Peeling Machine & Maize pulverizing machine : make the maize into small piece.
--Spray dampener: adjusting the moisture.
--and so on.
2. Flour milling system:
--Pneumatic roller mill: mill the wheat into flour.
--Plansifter: sifting the flour.
--and so on.
3. Packing system: packing size from 1-2kg,5-10kg,10-25kg,25-50kg.
Feature:
( 1) Turnkey project of flour production line.
(2) Advanced technology support and customized design.
(3) Thorough crafts and rational allocation.
(4) Low power consumption ,high quality, best price.
( 5 ) P rofessional installation team and p erfect after-sales service.
Certifications of our company:
Above are the basic info about our 100tons complete Maize flour meal production line.
After processed by t hese machines , you can get high quality flour.
Welcome your inquir to us, i will answer you soon.
Condition: |
New
|
Place of Origin: |
Hebei China (Mainland)
|
Brand Name: |
JG
|
Model Number: |
6FYDT
|
Production Capacity: |
100tons per day.
|
Voltage: |
380v,50hz
|
Power(W): |
217kw/h.
|
Dimension(L*W*H): |
30*8*10m
|
Certification: |
ISO9001
|
Warranty: |
1 year for free, lifetime warranty period
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Color: |
blue,green,white, or as Buyer's request.
|
Product name: |
Maize flour meal production line.
|
Installation service: |
yes if you need.
|
Structure: |
steel-frame
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
