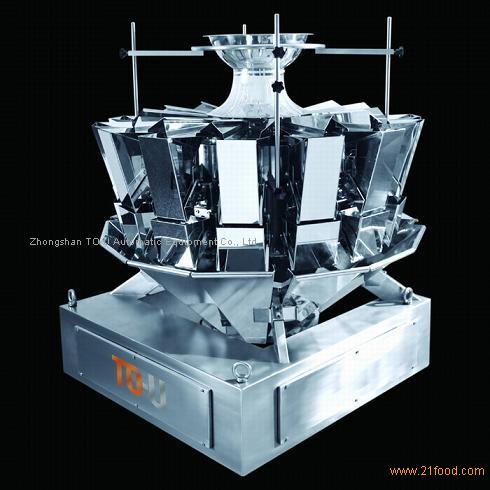

14 Head Intelligent Combination Weigher,China TO-U price supplier

I. Application:

Suitable for weighing of granule, slice, roll or
Irregular Shape materials such as candy, seed, jelly, fries, peanut, puffy food biscuit, chocolate, nut, yogurt pet food, frozen foods and other small hardware, plastic products.

II. Features:

1. Stable and strong anti-jamming PLC system makes machine run accurately and reliably with high efficiency and low fault rate.

2. With the adoption of high-speed and intelligent A/D module, PLC can read weight signal accurately. A/D module's fast speed and strong tare function ensure high precision.

3. Digital high-precision weighing sensor usage for accurate measurement.

4. The single linear vibration plate can be auto-adjusted to ensure the material flow equally and improve combination accuracy.

5. Set open angle of weigh hopper according to feature of measurement objects to avoid crumbling and blockages and achieve fast and high-precision weighing.

6. Powerful statistics collection function, take record of total weight, packages quantity and qualification rate etc.

7. Step motor drive runs stably and reliably with low noise.

8. Multi-language menu in HMI color touch Screen.

9. Super Self-diagnosis capability.

10. IP65 waterproof and dustproof design, simple construction, which are easy to clean and maintain.

III. Specifications

Model: TY-P-14A
Weighing Range(g): 10-1200g
Weighing Accuracy(g): 0.3g-1.2g
Max. Weighing Speed: 130 bags/min
Hopper Volume: 1300ml/2500ml/5500ml
Driving System: Step Motor
Options: Collection Hopper/Printer/Timing Hopper
Control Panel: 5.7" / 7" / 10.4"Touch Screen
Power Requirements: 220V /110V 50/60Hz
Dimensions(mm): 1210(L)*1200(W)*1300(H)mm
Gross WGT: 490Kg
