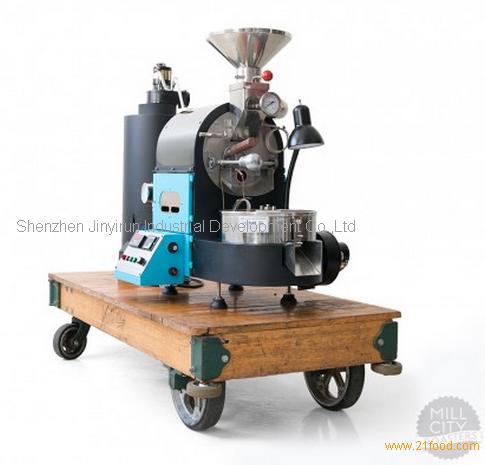

| NC-001 1kg Gas Coffee Roaster Parameters | |
| Roaster Dimensions: | 31.5×23.6×33.8 in (800×600×860mm) |
| Roaster Weight: | 198.4lb (90kg) |
| Chaff Collector Dimension： | 30.7×13.4×17.7 in（78×34×45mm） |
| Chaff Collector Weight： | 44.1lb (20kg) |
| Net/Gross Weight: | 242.5/308.7lb (110/140kg) |
| Crate Dimension(One Crate): | 45.7×38.2×39.4lb (1160×970×1000mm) |
| Drum Thickness: | 0.2 in (4mm) |
| Drum Diameter/Length: | 8.6/9.1 in (218/230 mm) |
| Drum Construction: | 430 stainless steel, welded |
| Cooling Tray Dimension: | 12.4 in (315mm) |
| Cooling Tray Stirring Arm Length: | 5.1 in (130mm) |
| Average Roasting Time: | 15 minutes batch |
| Production: | 13.2lb/hr,105.8lb/day (6kg/h, 48kg/day) |
| Roaster Voltage/Frequency: | Single phase 220v,15 amp service 50-60Hz |
| Step-up Transformer: | 120v to 220v, 1000 watt |
| Drum Motor | 45w |
| Exhaust Fan Motor: | 50w |
| Exhaust Fan Max. Airflow: | 70m³/h |
| Cooling Fan Motor: | 90w |
| Cooling Tray Stirring Motor: | 15w |
| Heating Mode: | Natural Gas or Propane |
| Max. BTU: | 20,000 |
| Burner Control: | Ball Valve |
| Gas Connection: | 3/8'' NPT |
| Typ. Chaff Collector Exhaust Temp: | 300F(during normal use) |
| Recommended Temp Controller Limit: | 455F (about 30 seconds into rolling second crack) |
| Max. Gas Usage | 0.9lb/hr (0.4kg/h) |
| USB Logging Interface: | Phidget 1048 |
| Logging Thermocouples: | BT,ET, incoming air |
Shenzhen Jinyirun Industrial Development Co.,Ltd isi head office of North Coffee Equipment Co., Ltd. We are located in Shenzhen City.It is a professional coffee roaster equipment manufacturing company which is dedicated to design and manufacturing, sales and services of coffee roasters.
Thanks to top quality and best service,our products are getting more and more popular overseas. We are specialized in manfucaturing coffee roasters and here other products are considered subsidiary.We also offer consultation services, provide equipment service and after sales service.
We have more than 10 years experience in manufacturing coffee roasting equipment and more than 5 years experience in OEM & ODM projects service.
The company is adhering to the spirit of "to be faster, more professional, to be more responsible, to be more grateful", and will continue to pursue the corporate aim of offering a better service.
Sole distributors: USA, Canada,New Zealand, Australia, UK, Indonesia, Poland,costa rica,Spain and South Africa.
