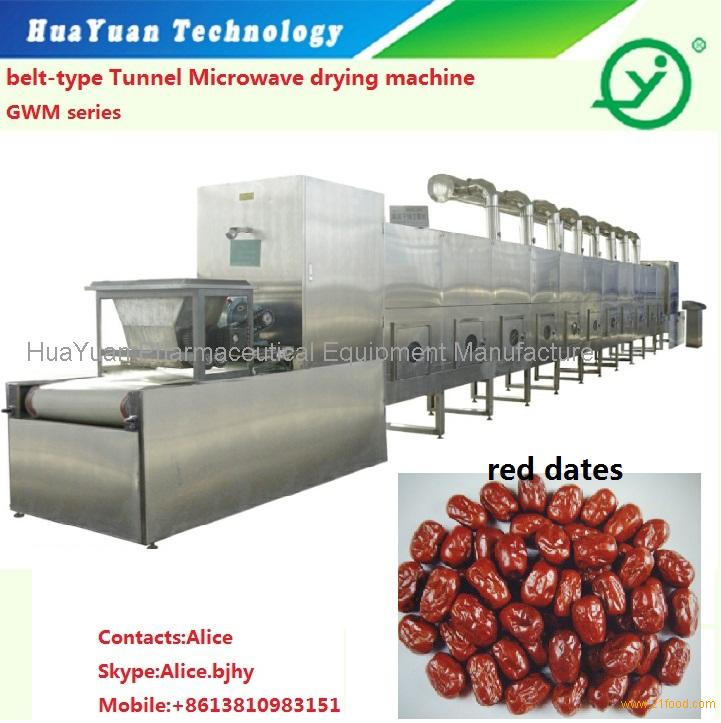

WMG series microwave sterilizing & drying machine is a mulity-pipe tunnel mode,which can be divided into horizontal Model WMG,vertical Model LWMG and track-type Model GWMG etc. It adopts our company’s many patent technologies,such as PLC controlling system,upending and stirring mechanism,and anti-sliding mechanism etc.Over 90% surfaces of the macine are mde of stainless steel.Its core electronic components are imported with original packing.The machine is mainly composed of electric-heating pre-heated oven,microwave heater,micorwave suppresser,blower and dehumidifier monitoring system,mechanical drive mechanism,and pionner PLC automatic control.Microwave heater is consisted of several units of heating boxes.The whole machine adopts modular design,resulting in convenient cleaning,installation,disassembly,inspection and repair.
Feature:
(1) High efficiency : compared with general drying technologies,it can increase work effciency at least four times above.
(2) Even heating : As micorwave heating heats up the inside and outside of materials at one time.Temperature difference between the inside and outside of materials is tiny,Thus,there is no question of apperaring heating variance of inside and outside which general heating will happen.Drying quality is greatly improved.
(3) Easy to control: it is convenient for continuous production,and it realizes automatization.Based on its characteristics of quick arrangement of microwave power and no inertia, it is easy to instant control,as well as arrangement and determination of process parameters.
(4) Small size .There is monitour installed in the interior,which can observe all courses of drying.
(5) Besides,microwave equipment owns sterilization and disinfection effects,whcih can make the processed products safe and healthy,as well as long quality guaranteed period.
(6) By processing dehydrated vegetables,the comparative results of different drying equipment’ processing property,economic benefit,product quality etc.
Application:
1. chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.
2.all kinds of teas,herbs, flowers, green leaves,etc.
3.various dried meat, like beef, pork, chicken,duck, fish etc
4. powder for various material,such as spices, other Food Additives
5. agricultural products,such as china date,nuts,grains,peanut,etc
6.snakefood, such as melon seeds,photo chips,etc.
Parameters:
| Model | Working Frequency (MHZ) |
Output power -kw |
Microwave leakage | External Dimension Adjustable | Productivity of Drying (kg/h) |
productivity of Sterilization (kg/h) |
| GWM_ 15A \ B | 2450± 50 | 15 | ≤ 5 | 9.8× 1.2× 1.6 | 40-75 | 150-180 |
| GWM_ 20A \ B | 2450± 50 | 20 | ≤ 5 | 12.4× 1.2× 1.6 | 50-120 | 200-250 |
| GWM_ 30A \ B | 2450± 50 | 30 | ≤ 5 | 14.6× 1.2× 1.6 | 65-160 | 300-400 |
| GWM_ 50A \ B | 2450± 50 | 50 | ≤ 5 | 20.5× 1.2× 1.6 | 120-200 | 500-600 |
| GWM_ 80A \ B | 2450± 50 | 50_ 80 | ≤ 5 | 30× 1.2× 1.6 | 200-300 | 600-1000 |
| GWM7_ 80A \ B_ L | 2450± 50 | 7_ 80 | ≤ 5 | 9-30× 1.2× 1.8 | 40-360 | 60-1000 |
| GWM7_ 80A \ B | 2450± 50 | 7_ 80 | ≤ 5 | 9-30× 1.2× 1.8 | 40-360 | 60-1000 |
Our company is located in Beijing and is specialized in the R&D and manufacture of traditional Chinese pill making equipment series, microwave extracting equipment series, microwave drying & sterilizing machine series, traditional Chinese medicine packaging machine series, and medical sterilizing cabinet series. Our enterprise now possesses 8 national patent licenses with independent intellectual property, all developed independently, and over 20 patents. We have exist types of CNC equipment, machining centers and other modern proceeding equipment of more than 300 units, with installation and debugging capabilities from the stand-alone processing production to the complete sets of equipment. We can recommend the best equipment and program according to customers' different conditions.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially France, Australia, Japan, Russia, Southeast Asia, and other countries and regions. Our products enjoy a good reputation among our customers. We welcome customers, business associations and frie
|
|
|
|
|
|
|
|
|
|
|
|
|
