2013 high productive pure coconut oil filling machine,China Jieswisu price supplier

2013 high productive pure coconut oil filling machine

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month

Payment Terms: US $1,000 - 10,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

1.automatic oil Filling Machine
2.Container:bottle,can,cup,barrel
3.Filling for liquid, Juice, Beverage ,oil etc
4.GMP

2013 high productive automatic oil filling machine

Product information :

Basic Info.

Model NO.:	CJXH-JF2500
Automatic Grade:	Automatic
Packing Capacity:	250-2000ml
Carton Material:	PET bottle,glass bottle
Machine Material:	Food-Class Stainless Steel
Output:	2500boxes/Hour
Export Markets:	Global

Additional Info.

Trademark:	JieSwisu
Packing:	One Wooden Case
Standard:	3.7m1.6m2.8m
Origin:	Wuhan, China
HS Code:	8422303090
Production Capacity:	2500 Cartons/Hour

Product Description

CJXH-JF2500 type gable top carton filling machine is automatic with top configuration. The entire machine is made of food-grade stainless steel, and the surface is special processed to be beautiful.

1. Work flow:

Put cardboard into carton holder (manually) -- Bottom preforming -- Bottom heating and sealing -- Ultrasonic capping (Optional) -- Filling -- Top preforming -- Top heating and sealing -- Date printing -- Finished product

The whole process is controlled by PLC, and only need one person to operate.

2. Suitable for filling:

Various kinds of juice, such as acid juice, tea drink, corn drink, soy milk, pure water, oil etc.

technical parameter

1 . Capacity: 250--1000ml (can be filled by one machine)

2. Output: 1800-2500 cartons/hour

3. Packing material: PET bottle,glass bottle

4. Shelf life: Depend on different product and different process

5. Capping: With capping (Optional)

6. Filling temperature: Hot filling: 88-92 degC / cold filling: 2-50 degC

7. Overall power: 25KW (three phases of electricity)

8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4-2M3/min, without oil, water and dust

9. Cooling water: Flow volume: ≥ 40L/ min Temperature: &le: 30 degC

10. Size: (L*W*H): 3.7m*1.6m*2.8m

11. Net Weight: 3500kg

12. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.

Product show:

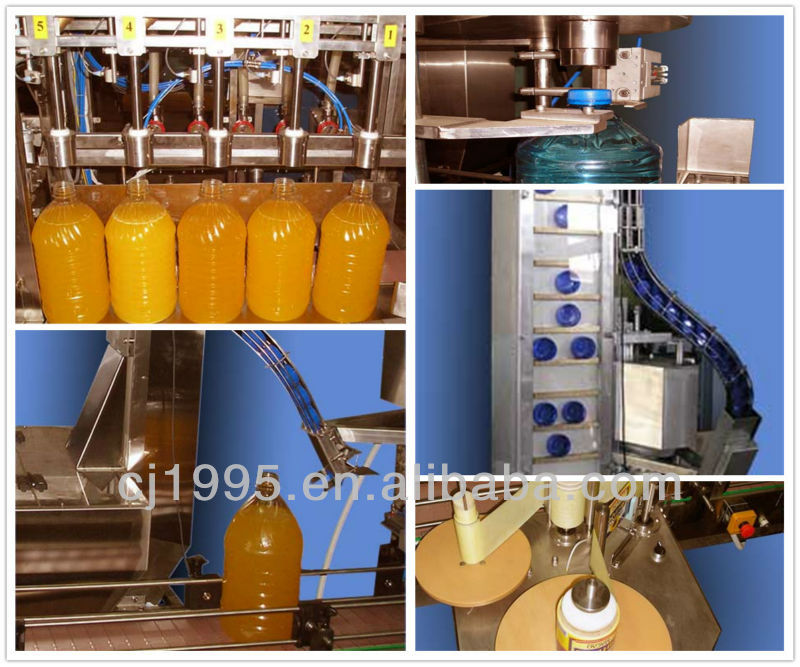

The Automatical type:

6 heads juice .oil,liquid filling machine:

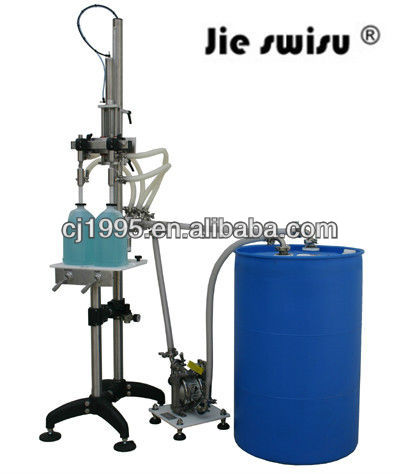

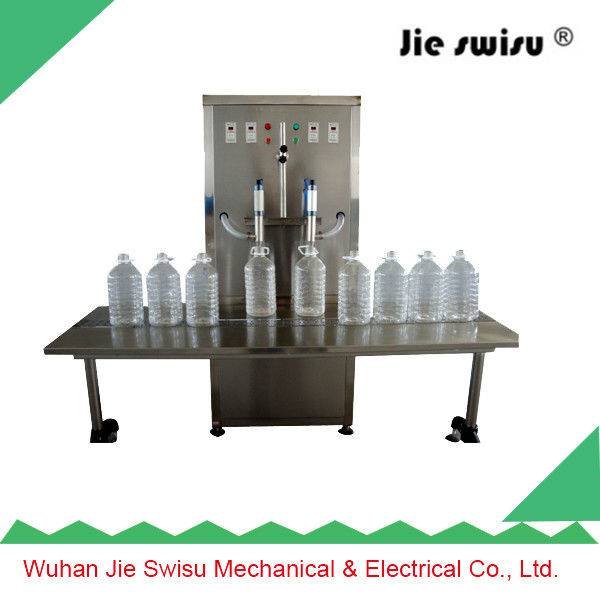

2 heads juice .oil,liquid filling machine:

Small Semi-automatical type:

Our machine widely used for :

Welcome friends from all over the world :

Come on,dear friends,Contact us!

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Medical,Chemical
Packaging Type:	Bottles,Stand-up Pouch,Bags,Pouch	Packaging Material:	Plastic,Metal,Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	0.35kW
Place of Origin:	Hebei China (Mainland)	Brand Name:	Jieswisu	Model Number:	CJXH-JF2500
Dimension(LWH):	3.7m1.6m2.8m	Weight:	300KG(20-500ml type ),30KG(20-500ml type )	Certification:	CE
After-sales Service Provided:	Overseas service center available	Machine Type:	Filling Machine	Product Type:	liquid ,juice ,oil.milk,pure water etc.
pressure:	0.4-0.6 MPa	Carton Material:	PET bottle,glass bottle	Size:	3.7m1.6m2.8m
Filling range:	5-100ml 10-280ml 20-500ml 100-1000ml	Main spindle:	304SS,precision grinding,Static balance test	Filling speed:	2500 bottles/Hour
Export Markets:	Global
