1,screen hole:2-500mu
2,layer from 1 to 5.
3,continuous screening.
4,customize for you.
5,factory direct sell
Part one:Company profile
Yongqing Machine is a professional manufacture of Screening equipment, Conveyor system, vibration motor, vibration table. So far, There are 1 advanced mechanical and manufacturing engineer, 1 secondary mechanical engineer, 1 design engineer and a few senior mechanics in our company. Their average working experience is more than 15 years. 7 years professional manufacturer, 4 years Alibaba golden supplier. We are focus on quality, pursue innovation and devote ourselves to technology development all the time. With the professional technical teams and richly manufacturing experience, we can supply excellence vibrating machines for global customers..
Part two:Product description
2013 Xinxiang YongQing circular motion Dia800mm three-phase electric
vibrator machine for Black Pepper

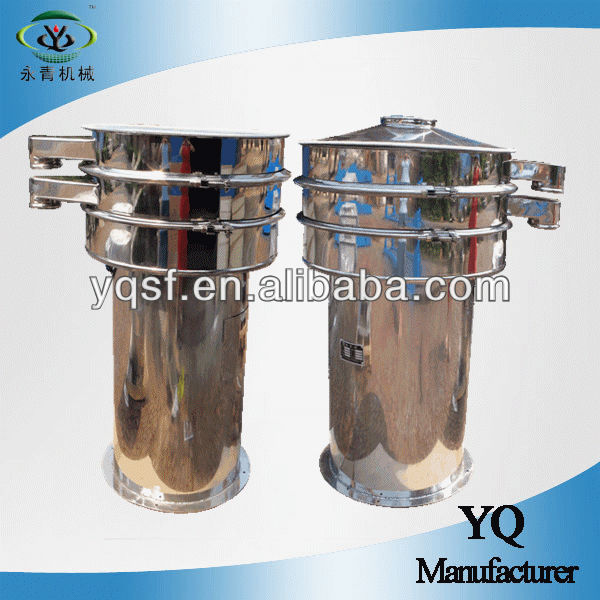

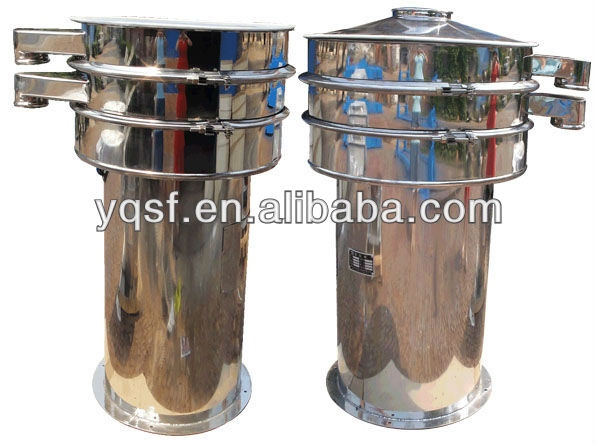

Product main picture,shining appearance!
Notable features of the machine!!!
1.All stainless steel,anti-corrosive and easy to maintain and clean,shining appearance.
2. Outlets can be adjusted freely around the circumference.
3.The height of basement:900mm.
4.Can be designed multi layers,5 layers at most.
5. Good sealing performance,decrease powder flying or float.
6.Mirror polishing treatment,you can use it as a mirror!
1.Screen mesh size:0.5~0.002inch,stainless steel woven mesh,square hole
2.Below 0.1inch mesh are very fine and easy to be blocked by materials, but don't worry,we have method to solve this,we add many bounce balls under the fine mesh,when the machine work,they jump and hit the mesh sharply and avoil the mesh from being blocked.
1440RPM high rated speed vibrating motor: theoretically the motor can work 24hours day continuously,but in order to keep a long service life of the motor,pls do Periodic maintenance.
1.Material running trajectory:
It has a upright motor as vibration source.There are two eccentric blocks fixed at the upper and bottom of the motor,which turn the motor’s rotary motion into horizontal vertical inclined three dimensional movement,then deliver the motion to the sifter.
By adjusting the phase angle ,can change the trajectory of materials in the sifter.
2.Noise level:
usually the noise level is 73~80 dB,BUT i have to sincerely tell you if has bounce balls under the mesh,the noise maybe much lounder...
3.Application:
Three main applications: classification or sieving; solidliquid separation or filter; washing and cleaning .
Screening spots(token in our customers' factories):
4.Details:
all accessories: we enclose some spare easily damaged accessories(like:springs,mesh,sealings and so on) when delivery,of course free of charge!!!
Technical data |
||||||||
Model |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
Diameter(mm) |
500 |
600 |
800 |
970 |
1170 |
1470 |
1770 |
1970 |
Layer |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-3 |
1-3 |
Mesh size(mm) |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
Rated speed(rpm) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
Power (kw) |
0.12 |
0.18 |
0.36 |
0.5 |
1.1 |
1.1 |
1.5 |
1.5 |
Amplitude |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |

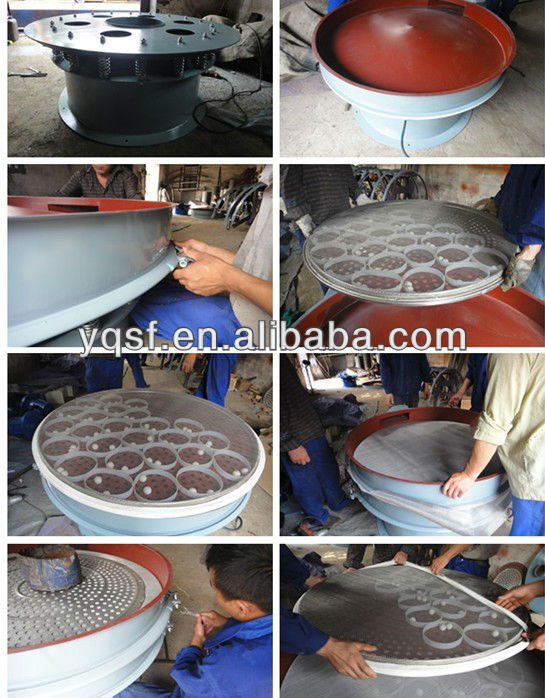

5. assembling details:
6.Packing details:
contact lynn for more details,thanks in advance...
Reference test video: http://www.xxyqsf.com/en/listInfo.php?nid=1
Condition: |
New
|
Type: |
Circular
|
Application: |
Food Processing
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
YongQing
|
Model Number: |
XZS-800
|
Voltage: |
220V/380V/415V/450V
|
Power(W): |
0.55-0.75KW
|
Dimension(L*W*H): |
800mm*800mm*H:1400mm
|
Weight: |
180KG
|
Certification: |
CCC,ISO
|
Warranty: |
12 months(2500 working hours)
|
After-sales Service Provided: |
No overseas service provided
|
Layer: |
1-5
|
Screen specification(mu/inch): |
2-500mesh(0.5-0.002inch)
|
Motor type: |
three-phase vertical motor
|
Noise level: |
73-80dB(without bounce balls)
|
Running trajectory: |
circular motion
|
Surface treatment: |
mirror polishing
|
Material: |
all stainless steel
|
HS code: |
8474100000
|
Frequency: |
50/60Hz
|
Height of basement: |
900mm
|
