chocolate bar Packaging Machine

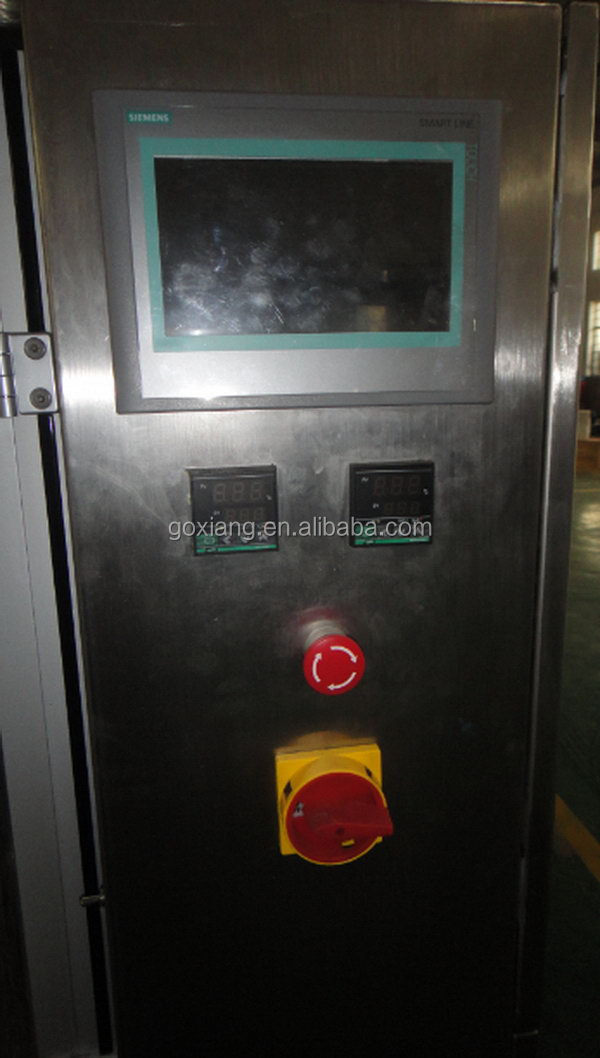

PLC control (Siemens),touch screen interface
Easy to operate and clean
High efficiency
2014 classical chocolate bar packaging machine
Brief Introduction:
1. Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3. Double filling working position,can filling two types materiel,such as:solid & liquid,two types liquid etc.
4. Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags
5. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
6. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
7. It can adjust the clips of the eight working position at the same time, just need adjust one of the screw which is control the wide size of bag, then the all clips will adjust to the same width. It can save the time and suitable for more different size of bags, especially suitable for the customer who often adjust the wide size of bag.
8. Use the plastic bearing, don’t need put on oil, less pollution.
9. Use no oil vacuum pump, avoid polluting the environment in the production.
10. The packing materials loss is low, what this machine used is the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
12. With different feeders,it can sutible for solid, liquid, thick liquid ,powder and so on
13. The packing bag suits in extensive range, such as multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Parameters of chocolate bar packaging machine:
| Model | GX8-200K | |
| Working position | eight-working position | |
| Pouch material | Laminated film, PE,PP | |
| Pouch pattern | Stand-up, falt, | |
| Pouch size | W:100-210mm L:100-350mm | |
| Filling Scope | Powder | 10-500g(The screw attachment is to be changed) |
| Granule | 10-1000g | |
| Weight Accuracy | Powder | Package weight less than100g, with an error less than ±2% 100 - 500g,with an error less than ±1% |
| Granule | ±0.1-1.5g | |
| Speed | ≤35pouches/min(The speed depends on the product status and flling weight)) | |
| Voltage | 380V 3phase 50HZ/60HZ | |
| Total power | 6.5KW | |
| Compress air | 0.6m 3 /min(supply by user) | |
Pictures of chocolate bar packaging machine:
For emergency,plz contact us directly at: +86 18721206379
chocolate bar packaging machine
| Type: |
Packaging Line
|
Condition: |
New
|
Application: |
sutaible for packing liquid soap,Food .medicine,agriculture ,etc
|
| Packaging Type: |
in bag
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
380V,380V 3phase 50HZ/60HZ
|
Power: |
6.5KW
|
| Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
GOFLYING
|
Model Number: |
GX8-200K
|
| Dimension(L*W*H): |
1800*1700*2300mm
|
Weight: |
800kg
|
Certification: |
CE&ISO9001
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
chocolate bar packaging machine
|
Other name: |
2014 chocolate bar packaging machine
|
| Texture: |
ss304
|
Bag requirement: |
All hot sealable bag
|
Controller: |
PLC
|
| Pouch material: |
Laminated film, PE,PP
|
Pouch pattern: |
Stand-up, falt
|
Certificate: |
CE&ISO9001
|
|
|
|
|
|
|
|
|
|
|
|
|
