2014 hot sell desiccated coconut machine,China Bailing price supplier

2014 hot sell desiccated coconut machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month desiccated coco

Payment Terms: US $2,000 - 150,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

desiccated coconut machine
1.high capacity
2.high dewatering ratio
3.easy maintenance
4.stable operation

Desiccated coconut machine description

Mainly consist : rotary body, feeding port, scatter plate device,driving devices,supporting device and sealing ring,discharge hole.

Driving device: gear and motor.

Supporting device: rolling ring,rali bearing.

The auxiliary equipments: hopper,firebox,belt conveyor, dust catcher, etc.The dust catcher we free charge for you.

Application of desiccated coconut machine :

rotary drier is widely used in mining industry, building material, metallurgy, chemical industry, cement industry, and etc. It is used for drying slag, limestone, coal powder, clay, sawdust, oil palm fiber, grass, river stone, Poultry dung, ores, rock sand and other different materials .

Operational principle of desiccated coconut machine :

The raw material enters the Dryer by electromagnetic vibrating feeder. There is also a feeding chute at the inlet of dryer to assit materials going down quickly. Meanwhile, the hot air generated by burner goes into the rotary dryer from heating furnace and the material get heated.

At the discharging side, the cyclone dust remover will be connected by the pipes to collect the dust from the dried material. The fuel will be gas. The dried materials will be conveyed to storage bin by screw conveyor or belt conveyor.

Main technical parameters of desiccated coconut machine :

model	The diameter(mm)	The length (m)	Slope (°)	Speed (r/min)	Power (kw)	Volume (m3)
0.6×8-12	600	8-12	3-5	8	4	2.26
0.8×10-10	800	10-12	3-5	7.2	4	5.02
1.0×10-12	1000	10-12	3-5	6.73	5.5	7.85
1.2×12-18	1200	12-18	3-5	5.8	11-15	13.31
1.5×12-18	1500	12-18	3-5	4.8	15-22	21.2
1.8×12-18	1800	12-18	3-5	3.2	185-30	48.22
2.2×12-22	2200	12-22	3-5	3	22-30	70.43
2.8×15-24	2800	15-24	3-5	2.59	30-55	147.8

Pictures of drum machine:

Feeding and discharging devices

Cyclon dust collector

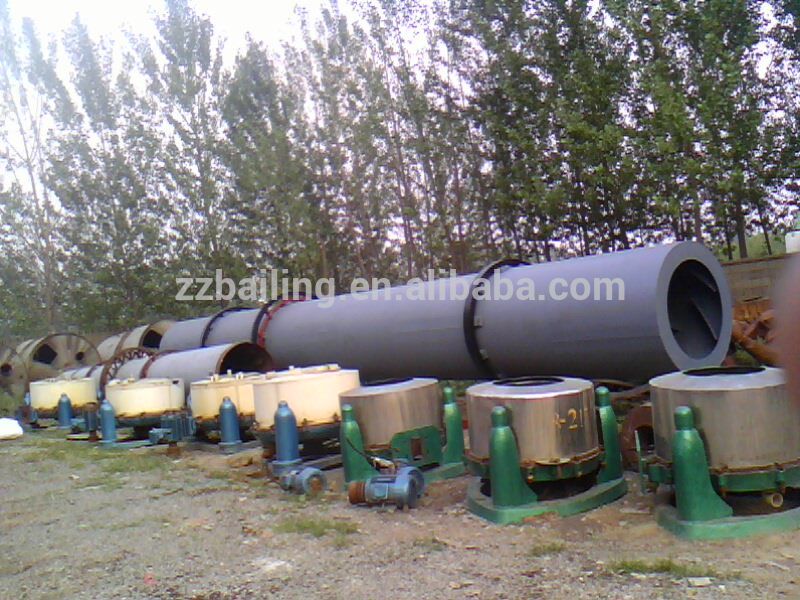

Rotary dryer at our client's site for reference

About our company:

Henan Bailing Machinery Co., Ltd is a professional manufacturer of various types of stone crushers for mining industry with nearly 20 years' experiences. We take high responsiblity for our customers and make every endeavour to provide excellent equipments and services. We've exported to over 40 countries, and our equipments are very popular especially in Mid east, Eastern Asia, Africa, South America. There are many quarry plants overseas, which you can visit to have a direct view about their performance and quality.

If you have any question or need, please contact me

Contact information:

Tel. : +0086 18650430392

Skype: romeohenan

QQ : 584198122

Wechat : Romeohenan

Condition:	New	Type:	Rotary Drying Equipment,rotary dryer	Place of Origin:	Henan China (Mainland)
Brand Name:	Bailing	Model Number:	bl	Voltage:	380V 50HZ
Power(W):	5.5-200KW	Dimension(LWH):	ALL	Weight:	ALL
Certification:	BV,CE,ISO,CCC	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas
Motor:	Chinese famous brand or as request	Capability:	0.5T/H-100T/H	OEM:	acceptable
Cylinder inclination:	2-5 degree	Color:	any color is available	volume:	2.26m³-147.8m³
