2014New cocoa powder packing film blown machine,China Aoxiang,AX price supplier

2014New cocoa powder packing film blown machine

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month

Payment Terms: US $6,000 - 60,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

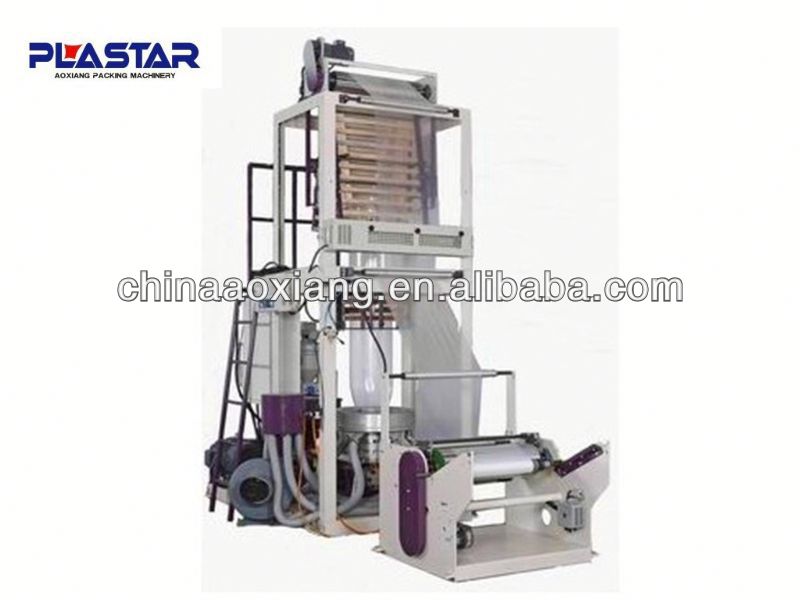

2014New COCOA POWDER packing film blown machine
1) Auto Liader
2) Air Cooling Device
3) Die Rotary Device

2014New 2014New cocoa powder packing film blown machine

Features :

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitride and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE. It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Main Usage:

Applicable for the materials as LDPE, HDPE, LLDPE,etc. It is widely used to manufacture composite film basic material, liquid film, comtractive film, protective film, cable film macromolecule adhesive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.

Aoxiang packing machines with the brand"Aoxiang", products including:

1. Blown film machines : double layer and 3 layers co-extrusion film blowing machine,

double die head film blowing machine, 3 layers co-extrusion film blowing machine, rotary die dead blown film machine, PVC film making machine, ziplock bag film blowing machine;

2. Bag making machines : bottom sealing bag making machine, side sealing bag making machine, courier bag making machine, double lane bag making machine, ziplock bag making machine, bags en roll making machine, etc;

3. Printing machines : rotogravure printing machine, flexographic printing machine, 1-8 colors for your choice.

4. Other machines: film folding machine, crushing & granulating machine, patch handle sealing machine, glue spraying machine, etc.

5. Machinery Accessories : material mixing machine, guesset bag making machine, holes punching die, corona treater etc.

The main packaging products we produce:

1. PE bag, PP bag, OPP bag, PP bag;

2. Carrier bags,T-shirt bag, handle bag, shopping bag, bottom-sealing bag;

3. Courier bag, zip lock bag, self-adhesive bag, side-sealing bag.

4. Styles available: stand up, gusset, zipped, heat-sealed, heat-cut, cold-cut, blown, sealed-in the-middle,three-side-sealed, with handle or hanger hole.

Technical Parameter:

Modle		SD-65
Suitable Material		LDPE LLDPE
Film Width		800-1500mm
Film Thickness		0.015-0.15mm
Max Extrusion Output		150kg/hr
Extruder
Screw Diameter		65mm
Screw L/D Length		28:01:00
Screw Material		Sacm-645/38 Crmoala
Cylinder Material		Sacm-645/38 Crmoala
Cylinder Cooling		550W*3
Mian Motor		37KW
Temperature Control		4
Average Power Consume		45kw
Type of die
Die Size		350/400mm
Temperature Control		3
Air Ring
Air Blower		5.5kw
Take Up Unit
Roller Width		165*1600mm
Take-up speed		50-60m/min
Take-up motor		1.5kw
Winding Unit
Type of die		Surface frication type
Winding motor		1.5kw
Winding speed		5-60m/min
Outline dimension(LWH)		6.82.67.0(m)

Condition:	New,new	Application:	Film	Plastic Processed:	PE
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	Yes	Place of Origin:	Zhejiang China (Mainland)
Brand Name:	Aoxiang,AX	Model Number:	45/55/65	Voltage:	380V
Power(W):	22KW	Dimension(LWH):	400028005200MM	Weight:	3500KG
Certification:	CE	Warranty:	1YEAR	After-sales Service Provided:	Engineers available to service machinery overseas
film materials:	LLDPE AND LDPE	width:	600mm	die head:	rotary die head
winder:	dpopuble winder	loader:	auto loader	cooling:	blower
machine quality:	best
