2015 Blow Moulding Machines lollipop sticks extrusion machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month Other

Update Time:2014-09-25

Contact Supplier

Product Description

Lass="description"> The largest capacity of the product can be 16L, and its production capacity is 60 to 70% more than the single station machine.

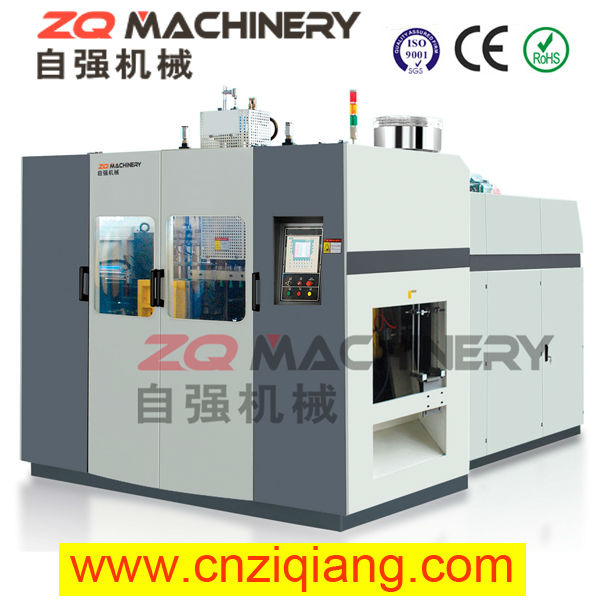

Extrusion Blow Moulding Machines

The 2L-16L double station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of ZQD-2L,ZQD-5L,ZQD-10L and ZQD-16L. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. The largest capacity of the product can be 16L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.

Setting:
Clamping------------Double station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system----------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic

Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.

After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.

2015 Blow Moulding Machines lollipop sticks extrusion machine

		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Material		PE,PP.	PE,PP.	PE,PP.	PE,PP.
Max.container capacity	L	2	5	10	16
Number of die	set	1,2,3,4	1,2,3,4	1,2,3,4	1,2,3,4
Output	pcs/hr	950×2	750×2	700×2	600×2
Machine Dimension	m	2.7×2.0×2.5	3.4×2.2×2.6	3.9×2.3×3	4.9×4×3.1
Total weight	ton	4	6.5	9.5	10
Accumulator head		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Number of die heating	zone	3	3	3	4
Power of die heating	KW	4.2	5.8	6-7	6-7
Max die-pin diameter	mm	60	80	140	140
Center distance of twin-die	mm	130	160	240	260
Center distance of tri-die	mm	85	110	160	180
Center distance of four-die	mm	65	85	120	130
Clamping Unit		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Clamping force	KN	38	70	110	155
platen opening stroke	mm	135-370	145-510	230-600	230-600
platen size	mm	280×380	320×390	450×490	500×490
Max mould size	mm	300×320	350×370	520×500	600×500
Mould thickness	mm	135-210	155-300	235-380	235-380
Extruder Unit		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Screw diameter	mm	60	70	90	90
Screw L/D ratio	L/D	24:1	24:1	25:1	25:1
Extruding Volume	Kg/hr	60-80	100-120	130-160	130-160
Number of heating zone	zone	3	3	4	4
Extruder heating power	KW	5-6.6	6-8.2	8.2-9.3	8.2-9.3
Extruder driving power	KW	15-18.5	22-37	37-45	37-45

Note: The specifications are subject to change without notice for the further improvement.

!Note: Custom production accepted. Any client idea tried.

high quality,best bottle warmer hollow blow molding machinery,Made in ZQ,huangyan

Condition:	New	Application:	plastic container,etc.	Plastic Processed:	PE/PP/PA
Screw Design:	Double-screw	Automatic Grade:	Yes	Place of Origin:	Zhejiang China (Mainland)
Brand Name:	ZQ	Model Number:	ZQD-16L	Voltage:	380V,etc.
Certification:	CE,ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Company Profile

Name: Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd.

Main Products: blow molding machine,blow moulding machine,blowing machine,bottle blowing machine,bottle making machine

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 2003

Main Markets: Domestic Market, South Asia, Southern Europe, Northern Europe, Central America

Address: Eastern Jingsi Road, Western Industrial Area, Huangyan, Zhejiang, P.R.China

Established in 1990, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is a sole subsidiary corporation of Hongkong East Lianfeng International Co., Ltd. It is an enterprise professionally making blow moulding machines, extrusion machines, plastic moulds and plastic products.

With total investment of USD11,000,000, and covering an area of 50,000 square meters, we have been applying advanced technology in the overall production process. Specifically, the main products are falled into 3 catalogs, which are plastic machinery, plastic moulds and plastic products.
1) Plastic machinery: adopting foreign advanced technology and
management system, and taking advantage of our solid technical
power, we have been developing different kinds of plastic forming
process and machinery. In accordance with plastic features, we
developed series of shaping machinery to meet customers' demands,
such as 2-stage multi-functional blow moulding machines, large hollow
shaping machines, injection and stretch shaping machines. Because of
our quality products and reasonable price, we have gained great
reputation from customers both at home and abroad
2) Plastic moulds: the mould brand is based on high technical design
idealism and fine equipment
3) Plastic products: taking advantage of our own technology, we can
professionally make products to meet different customers' demands

Focusing on customers' satisfaction, and taking quality as the core, we are now looking forward to even greater cooperation with overseas customers. Please feel free to contact us for more details. more
