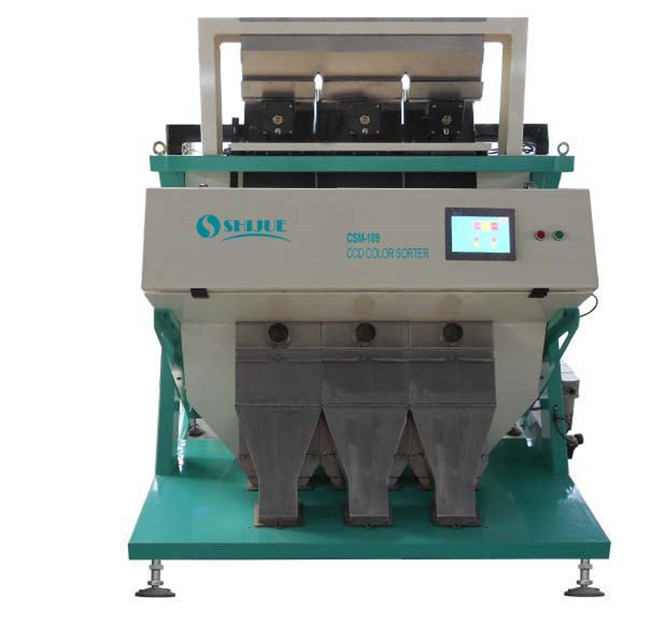

2048 Pixel color selection equipment for white and black grain sorting
Color Selection Outstanding Features
1. Big Production Capacity
2. High Definition, More Accuracy
3. High Sensitivity, Low Carryover Rate
4. Famous Single Ejector, Stable and Durable, more Easy Maintenance
5. Advanced Software with Special Algorithm, More Exact to Identify Impurity
6. Long Life LED Sources
7. Reliable Quality, Good After-sales Services
Color Selector Application
5000 pixel, 3CCD LED color sorter can sort various materials which seems to very difficult to sort by other color sorter, so great, so amazing, customer must try.
Color Selection Typical Features
Our color sorter machines are of high quality. With around 8 years experience of color sorting Technology R&D and machine manufacturing, we produce the china best color sorter. Our color sorter have the following typical features:
1. High reliability The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.
2. Unique 5000 pixel, 3 CCD, true color colorful CCD chips, high-speed, high resolution linear CCD camera, can distinguish the heterochromatic area smallest up to 0.025 mm2, very accurate.
3. Special intelligent algorithms, rapid and big data communication, together with 5000 pixel 3 CCD, implement special treatment for various materials to get a fantastic result.
4. With world Famous Single Ejectors, over 1000 times per second high-frequency, more long working life, low air consumption, guarantee big processing capacity, excellent rejection.
5. Latest LED light source. The latest LED light source, long life, energy-efficient.
6. Multi-language 10" Touch Screen, friend Human Machine Interface, easy and simple to operate.
7. Multiple application available. Various materials can be sorted, and one machine can be used for sorting several similar materials, more flexible.
Color Selection Technical Specification
| ITEM | 3R | 4R | 5R | 6R | 7R |
| Model No. | CSM-189 | CSM-252 | CSM-315 | CSM-378 | CSM-441 |
| Channels | 189 | 252 | 315 | 378 | 441 |
| Light source | LED | LED | LED | LED | LED |
| Pixel of camera | 2048 | 2048 | 2048 | 2048 | 2048 |
| Processing capacity (t/h) According to impurity |
3.0-6.0 | 4.0-8.0 | 5.0-10.0 | 6.0-12.0 | 7.0-14.0 |
| Sorting accuracy(%) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Carryover rate | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Main machine power(kw) | 1.8 | 2.2 | 2.6 | 3 | 3.6 |
| Air pressure(mpa) | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
| Air consumption (l/min) | 600-2000 | 700-2500 | 800-3000 | 900-3500 | 1000-4000 |
| Weight (kgs) | 900 | 950 | 1050 | 1150 | 1250 |
| Dimension (Lmm×Wmm×Hmm) |
1730×1550×1900 | 2030×1550×1900 | 2340×1550×1900 | 2650×1550×1900 | 2960×1550×1900 |
| Power supply (v/hz) | The voltage/ hertz can be adjusted as required. | ||||
Color Selection Certifications
After-sales service
Around all of the Globe, we show our presence!
We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
We have over 12 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers. We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: One year free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service, Establish user file for follow-up service.
Package
In wooden cases, insides with cushion blocking, very safte for shipping, air freight, road transport.
Factory profile
Anhui Color Sort Technology Co., Ltd., located in Hefei city, Anhui Province, China, is a high-new tech enterprise engaging in CCD color sorter from R&D, manufacturing to sale. The main products are series CCD color sorter machine with famous brand "better".
Our company pay more attention to quality, including machine hardware and sorting software. For hardware, we import world famous spare parts to guarantee our machine work stably in long time, we also use quality material to manufacture the machine, make our machine be durable; for color sorting software, we unite China most advanced university professor to research and develop latest sorting technology, by using these latest advanced technology, our machine quality has get to a higher level in the world. For example, we have advanced technology in target identification, data transmission and processing, and machine reaction, this makes our machine have strong data processing ability and big production capacity.
We have passed through ISO9001:2000 quality management certification, ISO14000 certification and CE certification.
We have complete sales network. Our color sorter machine have used in over 20 countries in the world, such as India, Thailand, Vietnam, Cambodia, Malaysia, United States, Canada, Denmark, Spain, Ukraine, Russia, etc..
We supply good after sales services. For each of our customer, we send engineer to install our machine, and test on site, let the machine work in best mode, train customer’s engineer for daily using and maintenance. Meanwhile, supplying quality warranty.
We are not big, but we are strong. Now our company is developing very quick, all our customers will enjoy our color sorter machine and world latest color sorting technology.
Vision Intelligence is our persistent goal. We work hard to supply more better color sorting solution to the world forever.
Thank you for your time.
