3 different sieves rotary cocoa powder shale shaker,China HENG SHUN price supplier

3 different sieves rotary cocoa powder shale shaker

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Month Remark: urgent

Payment Terms: US $1,000 - 6,500 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

1. Unique screen frame, quickly to change it
2. Outlet can be adjusted to any direction
3. No mesh blockage, high efficiency

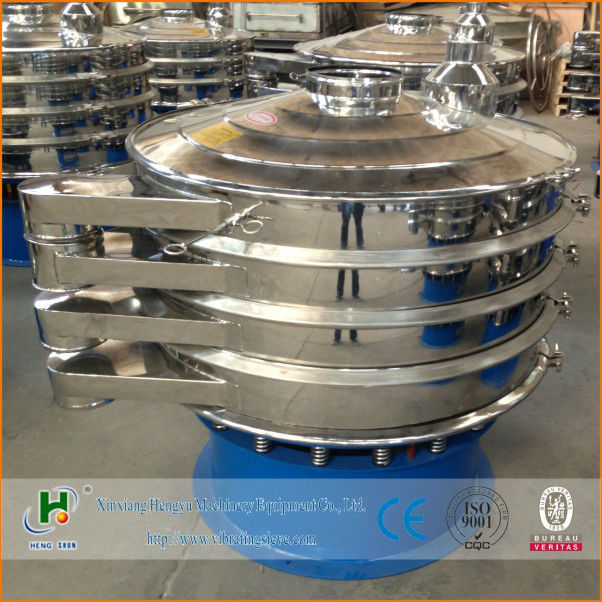

3 different sieves rotary cocoa powder shale shaker

Materials
There are there materials of sieving classifying filteration:

full carbon steel, full stainless steel, the parts contact are stainless steel as the left model .

Layers
As you request, we also can choose different layers of the sieving classifying filteration from1 layer to 4 layers.

Advantages
1. Sort materials into multi-levels at one operation.
2. With Self-cleaning device that help the processing materials through screen mesh easily.
3. With a small volume and light weight, sieve machine is easy to install and move.
4. ISO 9001:2008, CE certification, BV approved.

Technical parameters

Model	Effective dia. (mm)	Effective sieving area(m2)	screen	Layer	Powder(KW)
Model	Effective dia. (mm)	Effective sieving area(m2)	screen	Layer	Vibrating motor	Common motor
HY-400	Φ360	0.1017	5-500 mesh	1-4	0.18	--
HY-600	Φ560	0.2461			0.25	0.75
HY-800	Φ760	0.4534			0.55	1.1
HY-1000	Φ930	0.6789			0.75	1.5
HY-1200	Φ1130	1.0023			1.1	1.75
HY-1500	Φ1430	1.6052			1.5	2.2
HY-1800	Φ1730	2.3494			2.2	3.0
HY-2000	Φ1830	2.6288			3.0	3.0

Packing in trade

How can you get the right model?

We can supply certificates of origin and certificates of the invoice.

Just supply us the following information, then we can recommend the factory sieving classifying filteration for you .

1. Material: ________
The particle size distribution : _____
The maximum feeding material size: and what is the percentage of the various parts of the material? ________

2. Capacity: __________ t/ h?

3. Sieving aim: ______(a or b)?
a. Your aim is to purify the_________ e.g. remove the large particles or smaller than the screen size).
b. Gradation: Classify the __________into different grades.

4. Layer: _______layer?

5. Screen mesh aperture: ____________mm or mesh?

Welcome to visit our factory,
If you are interested in our products, please do not hesitate contact me now.

Contact information

Contact person: Linda Lu
Company name: Xinxiang Hengyu Machinery Equipment Co., Ltd.
Head Office address: No.8 Hengyu Street, Middle of Qinglong Road, Xinxiang, Henan, China
Tel: (0086-373) 3807161 Fax: (0086-373) 3807161 Mobile: (0086) 150 8312 3796

Condition:	New	Type:	Circular	Application:	Food Processing
Place of Origin:	Henan China (Mainland)	Brand Name:	HENG SHUN	Model Number:	HY-1200-3S
Voltage:	220/380/415V, 50/60HZ	Power(W):	1.75 KW	Dimension(LWH):	136013601275
Weight:	375KGS	Certification:	ISO 9001:2008, CE, BV Reports	Warranty:	12 Months
After-sales Service Provided:	Engineers available to service machinery overseas	Machine name:	3 different sieves rotary cocoa powder shale shaker	Materials:	stainless steel 304
Layer:	three	Diameter:	1000mm	Function:	sieving.screening.filtering
Mesh:	5mesh-500mesh	Surface treatment:	mirror polishing	Excellent design:	impact designing. no dust fiying
Customization:	accepted	HS Code:	8474.10

Company Profile

Name: Xinxiang Hengyu Machinery Equipment Co., Ltd.

Main Products: Linear Vibrating Sieve,Round Vibrating Sieve,Ultrasonic Vibratory Separator,Tumbler Screening Machine,450 Type Vibratory Separator

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2005

Main Markets: Domestic Market, Southeast Asia, North America, Southern Europe, Northern Europe

Address: No. 8 Hengyu Street, Middle of Qinglong Road, Xinxiang County

1) Manufacture sieving and conveying equipment
2) 4 years Gold Supplier certificated, 9 years of OEM and ODM experience
3) 28 years of experience of one engineer, 22 years of experience of one engineer
4) 119,097 square meters workshop area
5) Monthly production capacities: 150-200 sets
6) All goods examined before delivery by 4 QC staff
7) Delivery time within 5 working days
8) Exported to 20 counties and regions
9) ISO 9001:2008, CE, BV more
