3 effects corn steep liquor evaporator,China Grand price supplier

3 effects corn steep liquor evaporator

FOB Price:Price can be negotiated

Production Capacity:70 Unit/Units per Year

Payment Terms: US $1 - 1,000,000 / Unit

Update Time:2025-02-28

Contact Supplier

Product Description

1, Customized ,1 effect- 6 effect
2, Capacity:3-100t/hr
3, Multi patents, heating source: vapor
4, Save steam/power

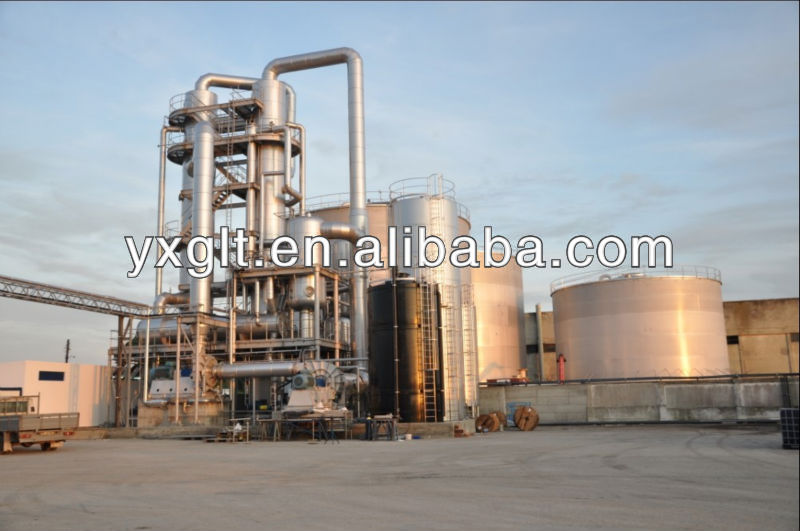

Evaporation system uses the method of falling film evaporation. the evaporation system can be made up of single-effect,2-effect,3-effect,4-effect,5-effect,6-effect according to the property of compressed material and customer's request.
It can be also used together with the coercive circulation Evaporator and crystallizer to deal with the concentration and product crystallization of high viscous and easy scaled material.
It is characterized by high efficiency of heat conduction, low power consumption etc.
It can widely use the waster heat (such as the drier's hot air and flue gas), the remaining heat (of condensing water, process water and flash steam) to form a waste heat evaporation machine unit.

Typical 3-effect evaparator's specification and coefficiency:

type		JMZ-3.0	JMZ-4.5	JMZ-6.0	JMZ-9.0	JMZ-12.0	JMZ-15	JMZ-20	JMZ-24	JMZ-30	JMZ-50
capacitykg/hr		3000	4500	6000	9000	12000	15000	20000	24000	30000	50000
Raw steam comsumption kg/hr		900	1350	1800	2700	3600	4500	4500	7200	9000	15000
vacuum	1-effect	0
	2-effect	448
(mmHg)	3-effect	640
temperature	1-effect	99
	2-effect	76
	3-effect	53
Steam pressureMPa		0.6-1.0absolute pressure

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Grand	Model Number:	JMZ
Type:	grain Processing Equipment"> Grain Processing Equipment	After-sales Service Provided:	Engineers available to service machinery overseas	heating source:	steam
drying environment:	vacuum	material:	stainless steel

Company Profile

Name: Yixing Grand Drying & Concentrating Equipment Co., Ltd.

Main Products: Tube Bundle Drier,Flash Drier,Screw Extrusion Drier,Disc Mill,Falling Film Evaporator

Business Type: Manufacturer

Total Employees: 501 - 1000 People

Established Year: 2000

Main Markets: Mid East, Eastern Asia, Western Europe, Central America, Northern Europe

Address: No.13 YangxiLily Road, Zhoutie Town

Yixing Grand Drying and concentrating equipment co., ltd. was founded in the mid of 1980s. We are one of the biggest enterprises specialized in manufacturing drying, concentrating and evaporating equipment in Chinese Yangtz river delta. Our company covers an area of over150, 000 square meters. We have cooperation with experienced designers from USA and Canada to design MVR evaporator and tube bundle dryer for our customers. We have offered many good products for Cargill, corn products and many other famous local customers like COFCO, the biggest food products supplier. Our company also took turn key project if customer requires. We are expanding every year and offer better equipments to our vast customers. more
