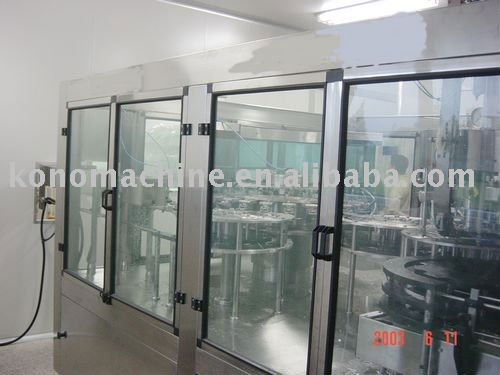

3-in-1 automatic fruit juice hot filling machine

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month

Update Time:2023-10-25

Product Description

automatic FRUIT JUICE hot Filling Machine
1)ISO9001&CE certified
2)Lss304 stainless steel material
3)3000-4000BPH capacity

automatic fruit juice hot filling machine, juice processing machine, orange juice making machine

automatic fruit juice hot filling machine technical parameter:

Model	RCGF16126	RCGF18186	RCGF24248	RCGF32328	RCGF404012
Heads of washing,filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-12
Production capacity	3000-4000BPH	5000-7000	8000-12000	12000-15000	16000-18000
Suitable bottle diameter	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa
Filling temperature	85-90°C	85-90°C	85-90°C	85-90°C	85-90°C
Filling type	Hot filling	Hot filling	Hot filling	Hot filling	Hot filling
Motor power	2..2+0.37kw	2.2+0.37kw	3+0.45kw	5.5kw	7.5kw
Stainless steel	SS304	SS304	SS304	SS304	SS304
Electric voltage	380V50Hz	380V50Hz	380V50Hz	380V50Hz	380V50Hz
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Frequency converters	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Touch screen	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens	Siemens
overall dimension	240016002500	250018002500	310023002800	380028002900	460028002900
Weight	2500kg	3500kg	4500kg	6500kg	8500kg

3-in-1 automatic fruit juice hot filling machine

If you need visual video of these fruit juice hot filling machine equipment, please feel free to contact us by email.

Product Type: Juice, Fruit Juice, Vegetables Ju...	Brand Name: KONO	Model Number: RCGF16-12-6 beverage treatment ju...
Place of Origin: Jiangsu China (Mainland)	Primary Ingredient: Aloe, Apple, Banana, Bean, ...	Type: Concentrate
Processing Type: Colored, Filtered, Fresh-Squee...	Feature: Normal	Certification: ISO, QS
Packaging: Bottle, Box, Can (Tinned), Cup	type: beverage treatment juice hot filling mach...	Spraying pressure: 0.2-0.25Mpa
Filling temperature: 85-90℃	Filling type: Hot filling	Stainless steel: SS304
