3-in-1 bottle juice filling machine,China price supplier

3-in-1 bottle juice filling machine

FOB Price:Price can be negotiated

Production Capacity:30 SETS per Month

Payment Terms: T/T

Update Time:2025-04-21

Contact Supplier

Product Description

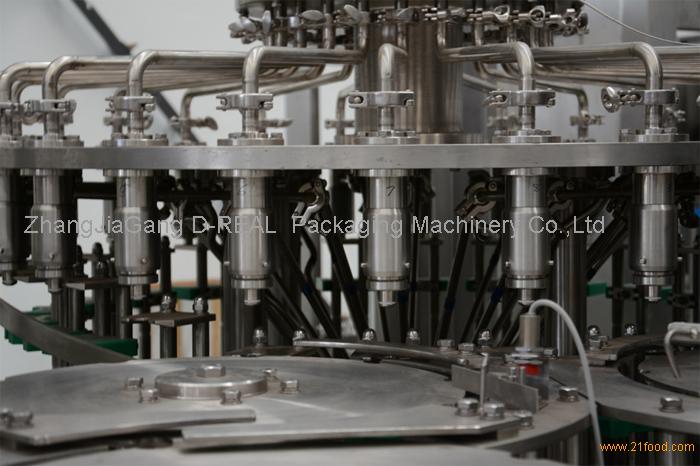

washing,filling ,sealing 3-in-1 automatic juice bottling machine RCGF 24-24-8

1) The automatic bottling machine is mainly used for hot filling machine and sealing of green tea, black tea, and fruit juice drinks.

2) Adopt PLC as center controller, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, and keep balance of filling pressure to insure stable liquid level.

3) Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.

4). Adopt advanced magnet clutches for capping with adjustable tensional moment to insure capping safely and reliably

model	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
production capacity(500ml)(b/h)	3000	5000-6000	8000-10000	12000-14000
filling precision	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)
feedback consumption	≤10%	≤10%	≤10%	≤10%
polyester bottle standard(mm)	(BottleDiameter)50-92;(Height):150-310	(BottleDiameter)50-92;(Height):150-310	(BottleDiameter)50-92;(Height):150-310	BottleDiameter)50-92;(Height):150-310
suitable cap shape	(Plastic Screw Cap)	(Plastic Screw Cap)	(Plastic Screw Cap)	(Plastic Screw Cap)
water pressure of washing bottle(Mpa)	0.18	0.18	0.18	0.18
wash pressure of washing bottle(kg/h)	800	1600	2500	3500
gas sourse pressure(Mpa)	0.6	0.6	0.6	0.6
gas consumption(m3/min	/	0.3	0.4	0.5
total power	5.88	6.68	7.68	9.18
total weight	2500	3000	4000	5000
dimensions(LWH)(mm)	2150×1500×2200	2600×1800×2200	3000×2180×2200	3600×2800×3150

Other Products

ultra-clean 4-in-1 filling machine

3-in-1 bottle juice filling machine

full auto water bottling machine

Full auto 5 gallon water filling machine

Company Profile

Name: ZhangJiaGang D-REAL Packaging Machinery Co.,Ltd

Main Products: fruit and vegetable processing line, milk and dairy processing line, bottled juice processing line, juice sterilizer

Business Type: Manufacture

Total Employees: 50 ~ 100

Established Year: 2013

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,

Address: NO.680, Tingyi Road, Jinshan District, Shanghai

Who We Are

Established in 2005, Shanghai Beyond Machinery is developing into a solid engineering and high tech enterprise, who is mainly specialized in supplying turn-key projects for fruit&vegetable, milk&dairy, Biopharmaceutical, bone soup processing line to clients in domestic and overseas. The company combines with scientific research and development, process design service, engineering contracting, equipment manufacturing, installation, commissioning and trainee as an integrated.

Thanks to so many excellent staff in technical and marketing hardworking, through 15 years developing, we have grown bigger with 400 registered employees and 75,000 square meters workshop now. With strong hardware and software, we have the faith to keep providing excellent service to clients beyond their expectations.

We adhere to food hygiene regulations, strictly control equipment quality, distribute in a more flexible and invigorative working surrounding development, and help our customers more successful in the corresponding areas by offering better products and services.

We would like to cooperate with the same occupations to develop Chinese light industry machinery and welcome warmly our old and new customer’s visiting and viewing.

Beyond History and Milestone:

—In the Year of 2005, Our President Mr. Hu and 6 other venture Partners Set up Beyond.

—In the Year of 2007, We have our own workshop in Fengxian District. Set Up 300TPD milk processing line for Client; Business turnover reached $3.15 million.

— In The Year of 2009, We marched into the fruit Processing line. Built-up the largest date processing line in domestic. Turnover is $11.4 million.

— In the Year of 2010, 35TPH Orange juice Processing Line Exported to Ghana and 5TPH tomato sauce processing line exported to Australia. Turnover reached $14.28 million.

— In the Year of 2013, Setting up China’s largest herbal tea processing line for WangLaoJi, Turnover reach $17.14 million.

— In the Year of 2015, we exported the 5TPH pineapple Processing line to Kenya. And we moved to our new factory in Jinshan District. Business turnover is $25.7 million.

— In the Year of 2017, 5TPH Peach, Carrot and Blueberry Combined Processing line Exported to Georgia. Turnover is $38.28 million.

— In The Year of 2019, We Opened a new branch in Xuzhou, Jiangsu Province, The new workshop covered about 50,000 square meters to meet the increasing equipment capacity requirements. Business turnover is $44.28 million.

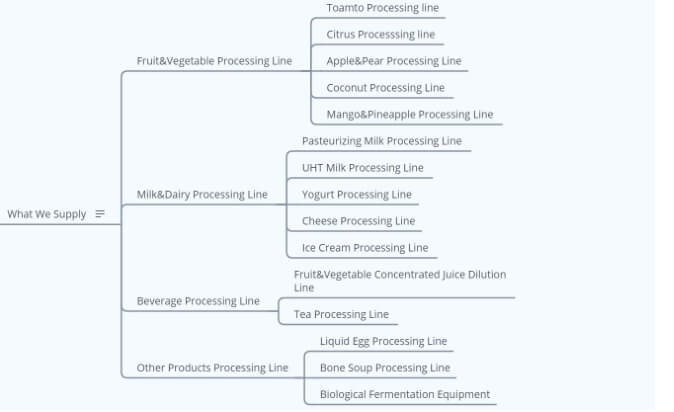

Product Category:

Project Workflow and Machine Parts Sample

Processing Equipment

Client Project

Exhibition

Product Patents
