3 in1 monoblock automatic glass bottle beer and red wine filling machine,China Winmark price supplier

3 in1 monoblock automatic glass bottle beer and red wine filling machine

FOB Price:Price can be negotiated

Production Capacity:1000 Set/Sets per Year 3 in1 monoblock

Payment Terms: US $10,000 - 20,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

hot sale Beer bottle filling plant /line
1.MITSUBISHI PLC
2.no leak,no drop
3.material:SS304
4.capacity:4000-5000b/h

3 in1 monoblock automatic glass bottle beer and red wine Filling Machine

We have developed the latest beer filling machine in accordance with the technological requirements for packing beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling Production Line for the beer breweries.

Main Features:

1.With high precision me chanical filling valves, our beer filling machine stops vacuumizing when there are no bottles .

2.The beer filling machine is equipped with external mechanical valve,inside which there is no spring or sealing element.

3.With high pressure frothing device ,it is capable of double vacuum-pumping.

4.The beer filling machine makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.

5.The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life.

6.In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.

7.With a full stainless steel magnetic hopper,the unscrambling, feeding and discharging of crown caps are all performed by magnetic force.The caps are free from deforming,and can flow smoothly in large quantities during transmission.

8.The capper has the function of automatic deloading,which helps lower the bottle breakage.

9.For the centering guide of our beer filling machine,we adopt double guide-bar mechanism ,with the function of pre-covering which allows stable and reliable bottle transferring.

10.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.

11.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

Main Parameters:

Item	BGF16-16-5	BGF18-18-6	BGF24-24-8	BGF32-32-10
Capacity	5000bph(500ml)	6000bph(500ml)	80000bph(500ml)	12000bph(500ml)
Rising heads	16	18	24	32
Filling heads	16	18	24	2
Capping heads	5	6	8	10
Bottle Diameter	Commonly 50-110mm (can adjustable)
Bottle Height	Commonly 150-340mm(can adjustable)
BOTTLE	Glass or Plastic bottle
Rising pressure	0.2-0.25Mpa
Overall size	213017002350	245018002350	278022002350	360026502350
Weight	3.3t	3.5t	4.5t	5.5t

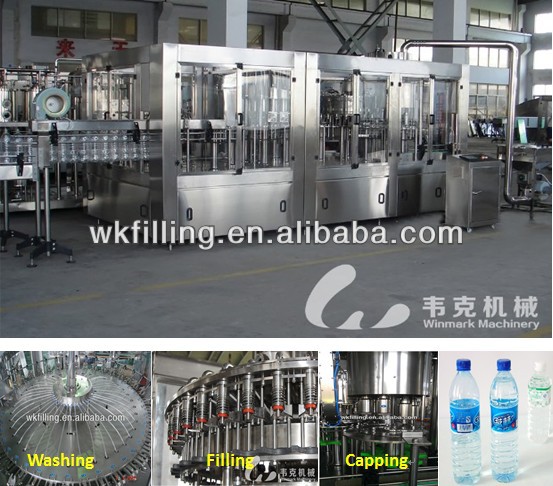

Picture shows:

Other type filling machine:

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Winmark
Model Number:	BGF	Voltage:	380V	Power(W):	3.8KW
Weight:	4500KG,3500kg	Dimension(LWH):	295021502400,245018002350mm	Processing Types:	CARBONATED DRINK
Processing:	FILLING MACHINE,Other	Certification:	CE ISO	Warranty:	1 year
After-sales Service Provided:	Overseas service center available	title:	3 in1 monoblock automatic glass bottle beer filling machine	colour:	silver
power:	5-10kw	processing type:	beer	driven type:	eletric
quality:	advanced technology from taiwan	material:	stainless steel 304

Company Profile

Name: Zhangjiagang Winmark Machinery Co., Ltd.

Main Products: Filling Machine,Water Treatment,Packing Machine,Carbonated Drink Production Line,Drinking Water Production Line

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Domestic Market, South Asia, Northern Europe, Western Europe, Eastern Asia

Address: Guotai Easten Plaza 706

Zhangjiagang Winmark Machinery Co., Ltd. is a joint venture. We are a professional manufacturer and exporter of middle-small type beer and drink filling equipment. We have a basic manufacturing base in local city.

Our company persists in taking markets as guidance, taking science and technology as head, taking the quality as main line and taking service as guarantee, to set up a complete quality guarantee system. We have passed ISO9001-2000 International Quality System Certification. We are equipped with perfect testing and inspecting facilities.

Our company has a high-quality technology development team and production experience. There are totally 20 special engineers working for developing and designing. Main techniques come from Italy, France and Germany and also combine Chinese real country situations. We have researched and developed high-starting and advanced technical liquid filling equipment. The automatic level could achieve the level of the end of 1990. Our company's after selling dept. specially takes charge of installation, debugging, maintaining and repairing our equipment. Also after selling dept. is the window for connecting clients. The sentence of "we're the clients" makes all service staff consider for users all the time, and put users in heart. Then they realize the exact meaning of "clients are god".

Our company supplies pure draft beer production lines with capacity 2,000-10,000BPH; common beer production lines with capacity 2,000-20,000BPH; PET bottle fresh draft beer production lines with capacity 2,000-20,000BPH; tea & juice hot filling production lines, pure water & mineral water filling lines, and carbonated drink production lines, with capacity 2,000-20,000BPH; can beverage production lines with capacity 0-280CPM; 3-5 gallon barrel water filling lines with capacity 50-600BPH, and all kinds of matching equipment. And we could supply all turnkey projects.

Our equipment users are over 200 all over more than 20 provinces, cities and municipalities in our country. Meanwhile, we export to Japan, the Middle East, Southeast Asia, South Africa, Russia, etc. Besides producing and selling equipment, we supply all kinds of technical services, help clients design the plant layout, answer clients' technical questions, teach the users techniques, direct operations, etc.
