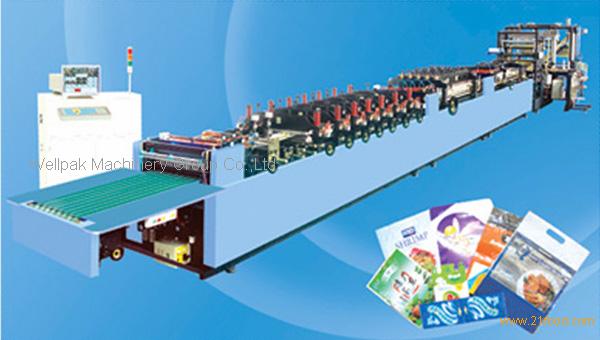

3-side Seal Bag Making Machine

FOB Price:Price can be negotiated

Production Capacity:UNLIMITED

Update Time:2010-08-10

Contact Supplier

Product Description

Applications and features:
This machine has many types and models. 3-servo motor driving, center sealing, zipper bag and standing pouches are available at request.
1. Double servo motors driving. Strong whole cast iron as side wall to insure top stability.
2. It employed an industrial computer with 15" color monitor for the control of unwinding tension---in feed speed---EPC--- Film storing tension---Assistant pull and length control compensation--- main pull length control and tracing compensation---Seal die temperature (TP8C)control --- Multiple feeding function---seal & cut speed, and others such as counting, repeat, alarm indicate and machine stop.
3. Pull length control and assistant pull and length control systems employed 2 sets of imported AC servo motors and controlled by the industrial computer.
4. Main seal & cut motor and unwinding motor employed 2 sets of imported V.F drives and controlled by the industrial computer.
5. Unwinder assembly (imported magnetic powder brake) has constant tension controlled by the computer.
6. Automatic transverse inspection and positioning, employed Germany photocells and linked to the computer.
6. Collect platform employed a single-phase capacitor to drive the motor for Repeat bag collection.
7. The not seal die employed an alloy of aluminum and magnesium. Strong, small distortion and top sealing quality.
8. The machine has multiple sized feeding function for super big sized bag making.
9. This machine has many types: for 3-side sealed bags, center sealed bags, zipper bags and standing pouches.
10. Technical upgrade will done without written notice.
Main Technical Parameters:

Model	800/1000/1200
Production	(1) Speed:160 repeats/min (2) Film Feed:36 m/min
Film sizes	W:400-1240 mm Dia.:600 mm
Bag shape and size	Bag width(W)75mm-600mm Bag length(L): Max. 1st long.seal L:500mm Max.2nd long. seal L:300mm(if more than 300 mm, use multiple feeding function Long. hot blade width(S2):10mm,20mm, Trans. hot blade width (S1):10,20,30,40,50
Heater, cooling plate and standard configuratin	Long. heater: L:640mm , 5 sets Long. cooling plate: L 510mm , 5 sets Trans. heater: L 640mm, valid 600mm , 3 Sets Trans cooling plate: L 640mm,Valid 600mm : 1 set
Film thickness	0.045-0.15mm(single layer)
Temp. control	16 lines
Temperature	0-300 degrees centigrade
Total power	33KW
Compressed air	0.6Mpa (6kgf/c2)
Weight	5000 KG
Dimensions	8000x1280x1800
Power supply	380V,AC+/-10%,50Hz,or as requested
