30B universal high efficiency grinding machine for black pepper,China YIQIU ZHONGYA price supplier

30B universal high efficiency grinding machine for black pepper

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $4,000 - 10,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

Universal Grinder
1.Certificate:ISO9001:2008.
2.Simple structure ,high output,easy cleaning.
3.The best grinding fineness.

30B universal high efficiency grinding machine for Black Pepper

Product Description

The machine has stable technical performance , high production capacity and beautine. It has large of application. It can get very ideal result to pulverize the drying fibre material. It is suitable for heat sensitivity materials such as Sugar, plastic powder and Chinese traditional medicine.

Principle

By means of relative motion between movable and fixd fluted discs,material is crushed through impact and friction

of the teeth and impact among the materials .Designde according to GMP standard and wholly made of stainless

steel.model 30B,moble 40B and model60Bcrushing chamber is equipped with water cooling jacket,with simple

structure,high output and easy cleaning,this machine is the most ideal crushing equipment at present

Features

Universal Grinder 1.Certificate:ISO9001:2000. 2.Simple structure ,high output,easy cleaning. 3.The best grinding fineness.

Technical parameter

Model	30B
Main shaft speed (r/min)	5300
Main motor power ( kw)	7.5
Clsoing fan motor power ( kw)	0.37
Draught fan motor power ( kw)	1.1
Inlet material diameter(mm)	10-40
Pulverizing fineness (mesh)	60-200(Optional adjustment)-General usage
Pulverizing capacity (kg/h)	50-250
Main engine temperature rising( °C )	≤65

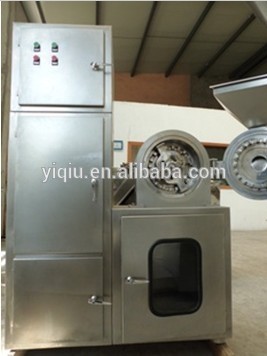

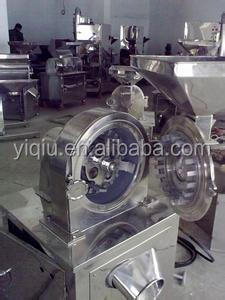

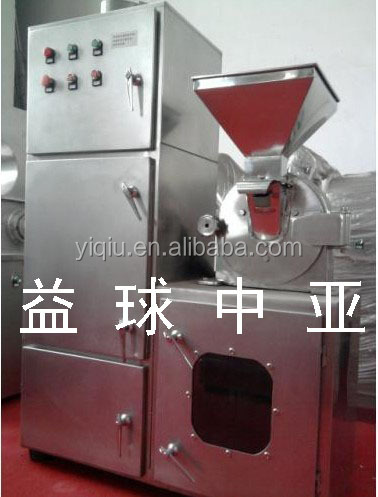

Detailed Images

Company Information

Condition:	New	Type:	Grinder	Product Type:	sugar
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	YIQIU ZHONGYA	Model Number:	30 B
Voltage:	220-440v	Power(W):	7.5kw	Dimension(LWH):	13507001700mm
Weight:	320kg	Certification:	ISO9001:2000	Warranty:	one year
After-sales Service Provided:	Engineers available to service machinery overseas	main shaft speed:	5300rpm	closing fan motor powder:	0.37kw
Feed grain degree:	10-40mm	pulverizing capacity:	50-250kg/hour

Company Profile

Name: Changzhou Yiqiu Zhongya Drying Equipment Co., Ltd.

Main Products: Dryer series,crushing series,mixing equipment,granulation equipment,conveying series

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 1996

Main Markets: Africa, South Asia, Southeast Asia, South America, Central America

Address: Liangzhuang Village, Jiaoxi Town, Wujin District

Changzhou Yiqiu Zhongya Drying Equipment Co., Ltd. is located in Jiaoxi Town, East Suburb of Changzhou. We are a key enterprise in the drying industry in China and also a specially-designated production unit of national pharmaceutical machinery, chemical equipment and foodstuff machinery.

For many years our factory has persisted in the principle of "Science and Technology as Forerunner, Market as Guider and Benefit of Customers as Core". Meanwhile our factory cooperates with several universities, colleges and institutes in the fields of drying equipment, pharmaceutical machinery, chemical equipment, foodstuff machinery and so on. The powerful-powerful combination has been achieved.

Drying equipment, pharmaceutical machinery, chemical equipment, foodstuff machinery and so on under "Yiqiu" Brand manufactured by our factory have been appreciated by customers for superior quality, favorable prices and first-rate after-sales service.

Our factory has model machines all the year round for customers to try. more
