40 year experience high quality factory price nuts/chocolate coating machine/sugar coating machine,China holy price supplier

40 year experience high quality factory price nuts/chocolate coating machine/sugar coating machine

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Month sugar coating m

Payment Terms: US $1,200 - 6,800 / Set

Update Time:2014-09-18

Contact Supplier

Product Description

sugar Coating Machine
1.Dia.of pot:300-1500mm
2. sugar or chocolate for nuts ,snacks .tablet
3. 3-600kg/hour

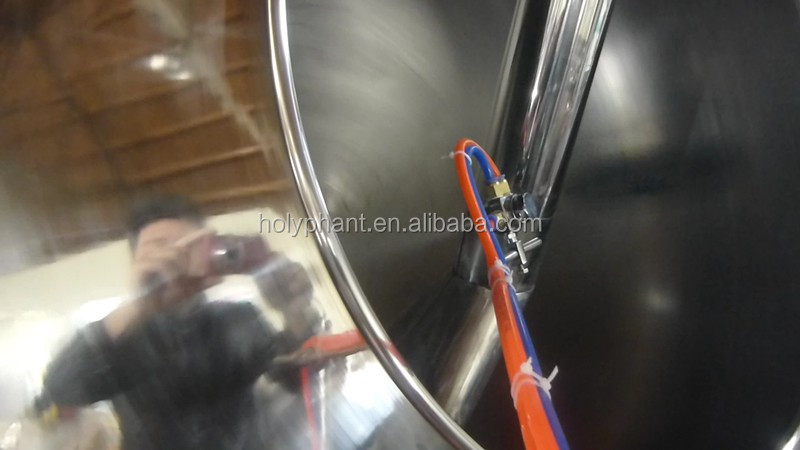

4. auto spray

sugar coating machine

Application of sugar coating machine :

This sugar coating machine used to sugar coating the tablets and pills for pharmaceutical and food industry. It is also used for rolling and heating beans and edible nuts or seeds.

Summary of sugar coating machine :

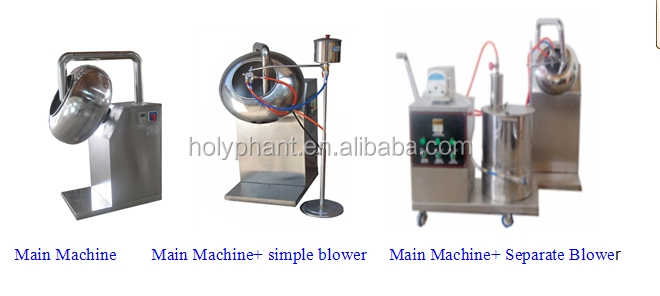

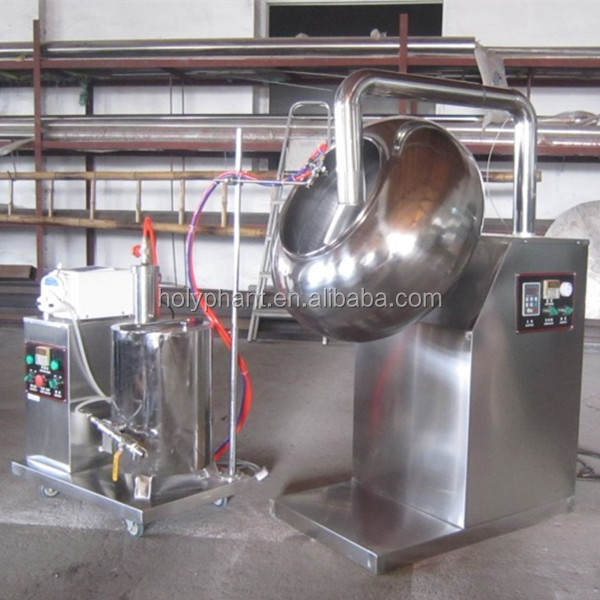

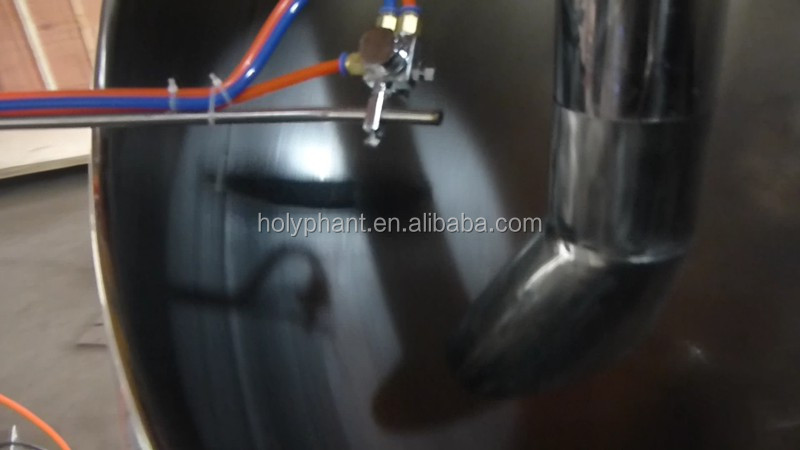

the sugar coating machine whose round pot is elevated, the Heater such as gas electrical heater can placed directly under the pot. A separated blower with electrical heater is provides with the machine. The pipe of the blower stretches into the pot for heating of cooling purpose.

This sugar coating machine can adjusted the capacity easily.

Main Data of sugar coating machine :

small type of sugar coating machine :

TYPE\ITEM	HY300	HY400	HY300A	HY400A
Diameter	300 mm	400 mm	300 mm	400 mm
Production Capacity	2 kg	5 kg	2 kg	5 kg
Scope	15°45°
Rotation Speed r/min	n1=42,n1=46		5-50
Main Motor0.55kw 380v	0.55kw,380v		0.55kw,380v
Heat	600w		600w
Fan	35w,220v
Overall Size (WDH)	440550765mm		485585800mm	750600800mm
Net Weight (kg)	85		90	155

big type of sugar coating machine :

Model	HY800	HY1000	HY1250
Dia of the sugar coating pot(mm)	800	1000	1250
Speed of the sugar coating pot(rpm)	32	28	30
Power of the main motor(kW)	1.1	1.1	2.2
Working capacity(kg/time)	30-50	50-70	90-150
Dimensions(LWH)(mm)	9259001500	110011001600	110010001600
Weight(kg)	230	250	300

Parameter	HY1500
Diamater of the pot(mm)	1500
Revolution(r/min)	25 Can be adjusted
Main power(KW)	2.2
Drum power(W)	370
Heating wire power(W)	3000
Capacity(kg/time)	300-400
Packing Dimension(mm)	130015001800
Weight(kg)	450
Full Material	SS304

We can maunfacture according to your demand too.

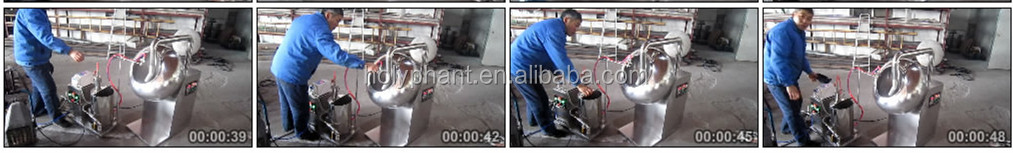

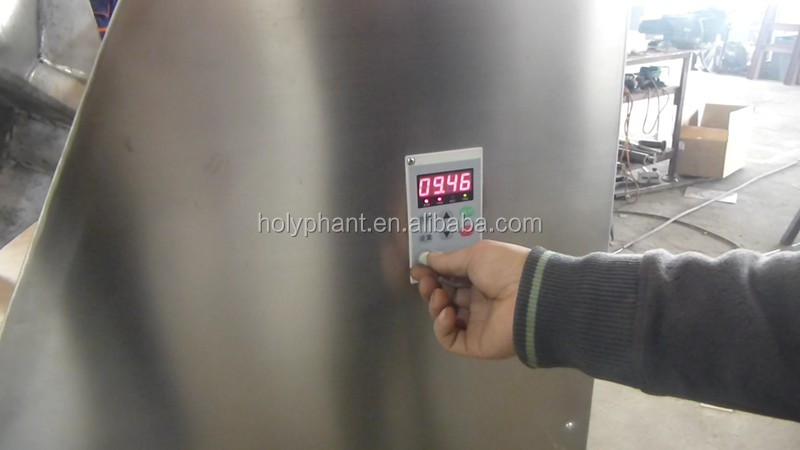

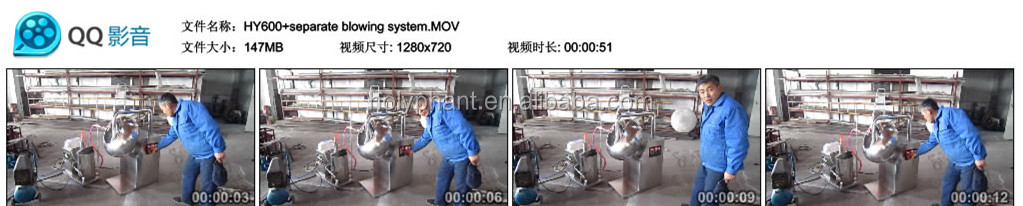

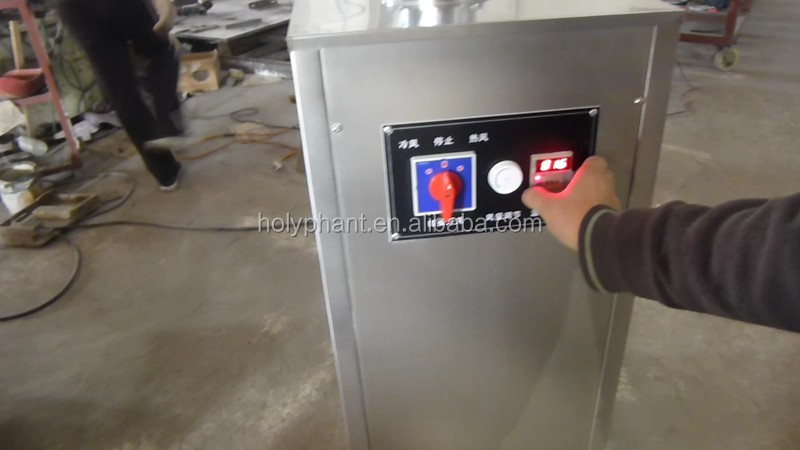

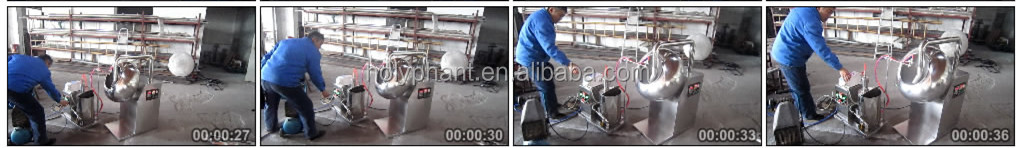

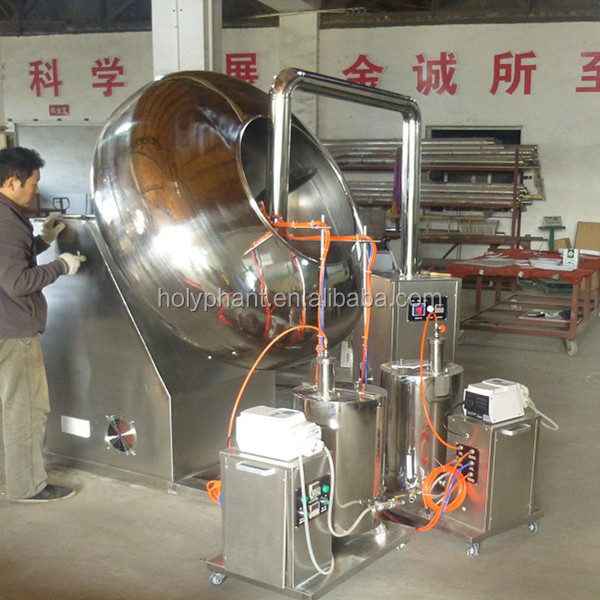

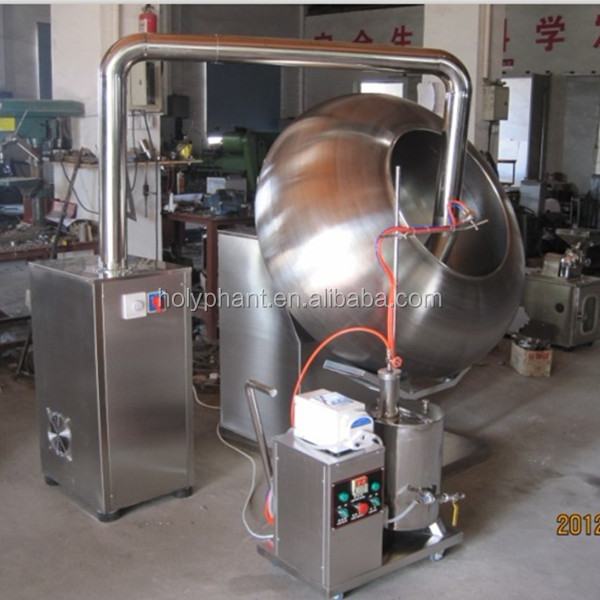

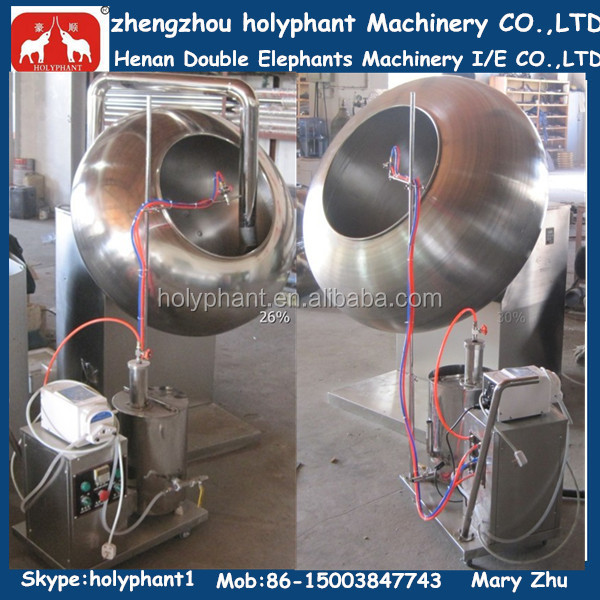

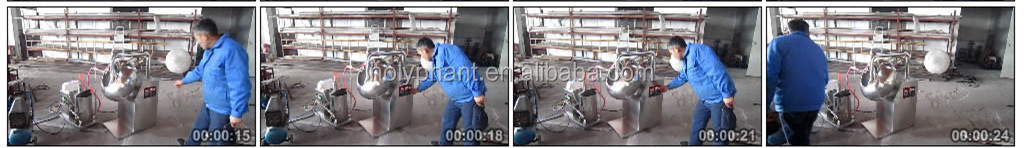

More pic of Sugar Coating Machine

Details of sugar coating machine:

Condition:	New	Place of Origin:	Henan China (Mainland)	Brand Name:	holy
Model Number:	HY sugar coating machine	Application:	sugar coating machine	Voltage:	220v or 380v
Power(W):	0.6-2.2kw according to different model	Weight:	30-300kg according to different model	Dimension(LWH):	sugar coating machine
Certification:	CE ,ISO,SGS	Warranty:	one year	After-sales Service Provided:	Overseas third-party support available
type:	sugar coating machine	equipment:	coating machine,heating system,blowing system and control system	certificate:	CE
Payment term:	30% prepayment	delivery time:	10-15 days after payment	video ,pic ,manual,:	available
contact skype(Mary):	holyphant1	quality:	high quality sugar coating machine	Price:	factory price sugar coating machine
