448 Channels LED CCD Color Sorter, Rice Color Sorter,China VISION price supplier

448 Channels LED CCD Color Sorter, Rice Color Sorter

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $20,000 - 40,000 / Set

Update Time:2021-12-03

Contact Supplier

Product Description

1.low waste and high capacity
2.low consumption
3.high accuracy
4.LED lamp
5.Have our own patented valve

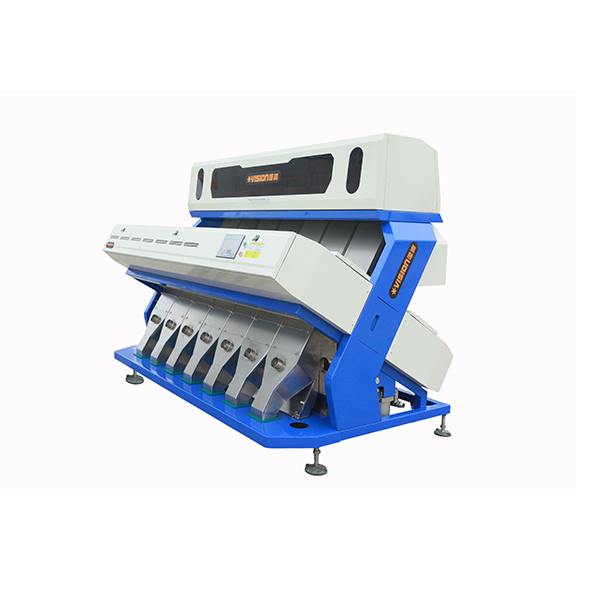

Description of Vision CCD Rice Color Sorter

VSN3000---G7R VISION rice CCD color sorter

1.The rice color sorter uses 2048 high performances CCD sensors with resolution up to 0.07mm2.

2.The rice color sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rice.

3.The high speed DSP technology provides the sorter with fast detection and high identification rate.The special rice detection algorithm is designed.

4.Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.

5.Overall unit adopts intelligent closed-loop control.

6.The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameters setting and easy operation.

7.High speed air valve is used to ensure quick response, low power consumption and long service life.

8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.

9.Failure alarm automation and modular construction makes easy repair.

Product brief description and advantages

1.low waste

2.low consumption

3.high accuracy

4.high throughput
5.Have its own patented valve

6. Superb After-sale Service

7. Professional Technical Guidance

8. High Quality Imported Parts

9. Self checking system2048 CCD camera and photo processing technology

VSN3000-R Series Rice Color Sorter Parameters

Model	VSN3000-G2R/G2A	VSN3000-G3R/G3A	VSN3000-G4R/G4A
Nos of Channels	128	192	256
Capacity(t/h)	1.5 — 3.0	2.0 — 4.0	2.5 — 5.0
Sorting Accuracy(%)	>99.8%	>99.8%	>99.8%
Optimized Carryover(Bad: good)	1 : 0.125	1 : 0.125	1 : 0.125
Main unit power	2.0	2.5	2.8
Air Supply Pressure(Mpa)	≥ 0.6	≥ 0.6	≥ 0.6
Air Supply Consumption(L/min)	800 — 1800	1000 — 2500	1500 — 2800
Weight(KG)	700	800	900
Dimension(L×W×H) (mm) A series	1125×15 90 ×18 40	1425×15 90 ×18 40	1725×15 90 ×18 40
Dimension(L×W×H) (mm) R series	1125×1518×1880	1425×1518×1880	1725×1518×1880

Model	VSN3000-G5R/G5A	VSN3000-G6R/G6A	VSN3000-G7R/G7A
Nos of Channels	320	384	448
Capacity(t/h)	4.5 — 8.0	5.0 — 10.0	8.0 — 12
Sorting Accuracy(%)	>99.8%	>99.8%	>99.8%
Optimized Carryover(Bad: good)	1 : 0.125	1 : 0.125	1 : 0.125
Main unit power	2.8	3.1	3.4
Air Supply Pressure(Mpa)	≥ 0.6	≥ 0.6	≥ 0.6
Air Supply Consumption(L/min)	1600 — 3500	1800 — 3800	2000 — 4200
Weight(KG)	1200	1400	1600
Dimension(L×W×H) (mm) A series	2025×15 90 ×18 40	2325×15 90 ×18 40	2625 ×15 90 ×18 40
Dimension(L×W×H) (mm) R series	2025×1518×1880	2325×1518×1880	2625 × 1518 × 1880

SorterParts : The above parameters vary with types, shapes and grain sizes of raw material and defect rate. Please inquiry the sales manager before you choose the right color sorter.

*Vision Color Sorter in Our Factory

*Vision Color Sorter Overseas: in customer's factory

* Newst LED Technology.

Long life-time of the LED lamp, 3~5 years. And the constant-current source make the light source more stable.

Careful Packing

You are welcomed to visit our factory with raw materials for testing use. More Information about the machine, please feel free to let us know. We will provide you optimal solution to grade-sorting in agricultural products processing.

Place of Origin:	Anhui China (Mainland)	Brand Name:	VISION	Model Number:	VSN3000-G7R
Type:	Grain Processing Equipment	After-sales Service Provided:	Engineers available to service machinery overseas	Channels:	448
Capacity:	6~12t/h

Company Profile

Name: Anhui Vision Optoelectronic Technology Co., Ltd.

Main Products: Rice CCD Color Sorter,Coffee Bean Color Sorter,Dehydrated Vegetable,Coarse Cereal Color Sorter,Plastic Color Sorter

Business Type: Manufacturer

Total Employees: 101 - 200 People

Established Year: 2009

Main Markets: Domestic Market, Southeast Asia, South America, North America, Eastern Europe

Address: No.11 of Yulan Road, Hi-tech Zone

Anhui Vision Optoelectronics Technology Co., Ltd. is a high-tech enterprise engaged in research, development, design and manufacturing of food and industrial color sorting equipment. Our company has a strong R&D team working many years for optoelectronics color sorter and CCD color sorter study, and possesses rich practical experience and strong research and development capability.

We enjoy technological advantages in digital optoelectronic detection represented by CCD sensors. The monochrome CCD color sorter researched and produced by our company is in leading status in domestic industries, and the color CCD color sorter initiates domestic market. Now the main products of our company include series of rice color sorters, cereals color sorters, tea color sorters, dehydrated vegetables color sorters, and so on, which can meet color sorter requirements of different customers.

What's more, according to our customers' practical requirements, our company would provide services of design, manufacture, installation and debugging, and technique training. For different materials and different color selection requirements, we provide efficient solutions. No matter where you are, we are ready!
