1 Certification:ISO9001:2000 and CE;
2Material: SUS 304&316,red copper
3.Service: install & debug equipment
4.Output: 500l/D
500L beer brewery equipment
1. 500L micro beer brewing equipment is Suitable for bars, hotels, and restaurants etc. If you ask,'I am looking for mini equipment for housbrewing,
is it correct?' Then I suggest you the smaller capacity like 300L mini beer
equipment, 200L or smaller 100L and 50L.Housebrew equipment of 100L is especially more suitable and popular for individual.
2. For bars, hotels, restaurants, I recommend looks beautiful, attractive and elegant red copper brewing equipment, it can strongly arouse the desire of people to pay for the beer in it.
DETAIL
MASH
1.Mash&Lauter tank |
1 piece ; SUS304 or red copper; 500 L |
2.Boiling $ whirlpool tank |
1 piece ; SUS304 or red copper; 5 00L |
3.Miller mashine |
1 piece ;200kg/h |
4.Wort pump |
1 piece ; Stainless steel food deliver pump ; 3000L/h; |
5.Plate heat exchanger |
1 piece ; exchange board material SS304 |
6.Pipeline $ Valve VLV |
1 set ; Stainless steel g; Food grade SUS 304 |
7.Wort measuring meter |
1 set ; Stainless steel ; WNG/WNY(0 ~ 100 °C ) |
8.Venturitubes |
1 set ; Stainless steel |
9.Measuring cylinder |
1 set ; Stainless steel |
10.Saccharometer |
1 set ; Glass |
11.Rake |
1 set ; SUS 304 Lees out rake |
12.Operation Platform |
1 piece ; Stainless steel |
FERMENTATION
1. Fermentation tank |
6 pieces ;SUS304; 10 00L |
2. Yeast adding tank |
1 piece ; SUS 304; 2 0L |
3. Food tube |
35 m ; Include tube Joints and hose hoops |
4. Refrigerant pipelines |
1 piece ; PPR/ Stainless steel |
5. Keep warm tube |
1 piece ; polyethylene |
6. Electromagnetic put air out |
1 piece |
7. Electronic gauges |
6 sets |
COOLING
1. Ice water tank |
1 piece ; Stainless steel ; 1 0 00L |
2. Refrigerating unit |
1 set ; 5 P |
3. Circulate pump |
1 set ; carbon steel |
4. Pipeline& Valves |
1 set ; PPR/ Stainless steel |
CONTROL
1. Mashing control |
1set ;manual, semi-automatic, or full automatic ( PLC) |
2. Fermenting control |
|
3. Cooling control |
|
4. Cleaning control |
CLEANING
1. Washing pump(moving) |
1 piece ; Stainless steel ; 3000l/h |
2. Alkali tank |
1 piece ; Stainless steel ; |
3. Sterilization tank |
1 piece ; Stainless steel ; 100L |

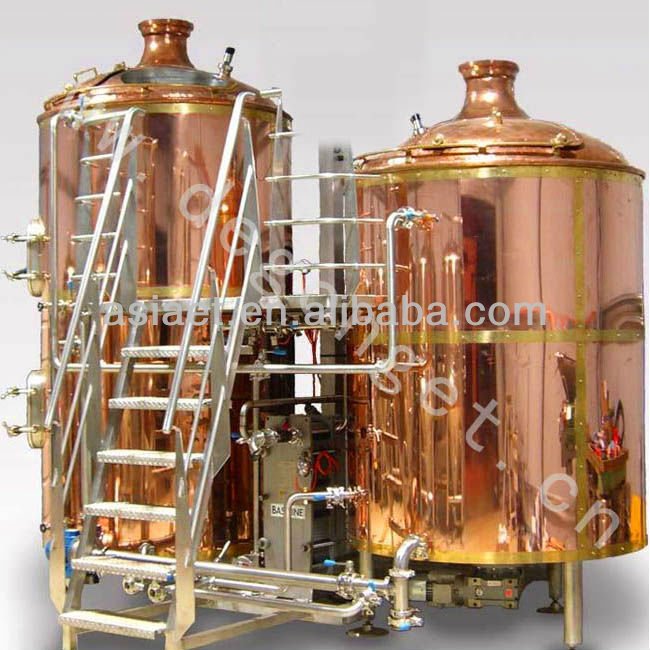

The mashing system(red copper material)
The mashing system (SUS304 Stainless steel material)
The fermentation system (fermentation tanks)
Processing: |
Fermenting Equipment,100% TIG welded and sanitary
|
Condition: |
New
|
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
DEGONGET
|
Model Number: |
DEGONGET-500L
|
Processing Types: |
Alcohol
|
Voltage: |
380V / 220V adjustable
|
Power(W): |
3phase/380v/50Hz Or customered
|
Dimension(L*W*H): |
Occupy about 35m2
|
Certification: |
ISO9001&CE
|
Warranty: |
3 years warranty for our all products
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Heating method1: |
electric
|
Heating method2: |
Natural gas
|
Control: |
Semi-automatic control
|
Daily output: |
500L
|
Surface treatment: |
Mirror polished
|
Cleaning: |
CIP
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
