WFJ-60super micro mill
Through the ISO9001-2008 system certification
1 main use
WFJ super micro mill is suitable for super fine grinding of low hardness materials such as food, chemical industry, pharmaceutical, feed, tobacco, calcium carbonate, plant fiber, dye, paint, pesticide, etc..
2Structure and working principle
WFJ ultra mill is a kind of vertical reflection type micro grinder, can simultaneously complete micro milling and powder separation process two. It is composed of a machine body, a frame, a feeding device and a crushing device, a discharging tube, a transmission device and a motor and other components, supporting by the host, dust collector, high-pressure centrifugal fan, an air lock device, cyclone collector and electric control cabinet etc. the set of air turbine unit powder. In the case of non stop, can be arbitrarily adjusted size. Uniform size of the product, the fineness of up to 10-5um, the machine has a self cooling function.
(for example: chemical. In traditional Chinese medicine. The root class. Size. Corn, rice, pepper, pepper, lettuce, soybean, soybean meal, garlic, star anise, cinnamon, dried vegetables, hawthorn, ginger, garlic, sugar. Saccharin. Grains, dried small shrimps, pumpkin powder, spices)

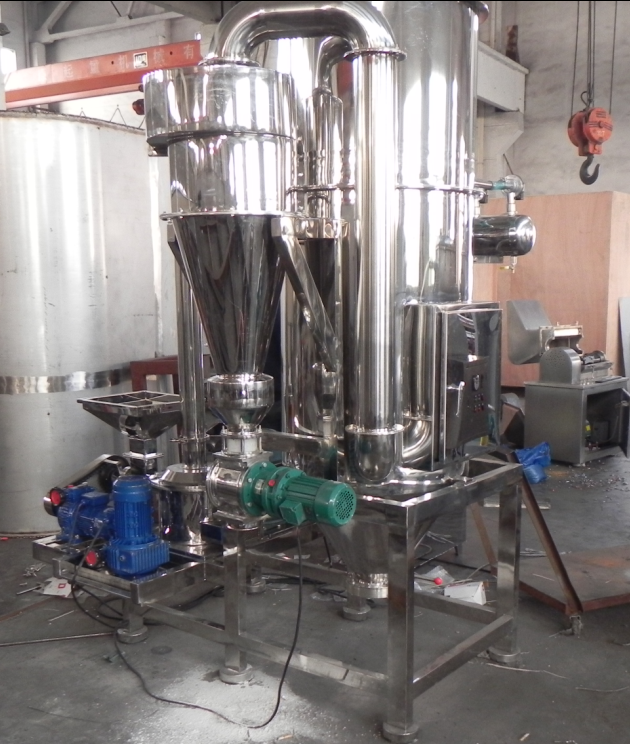

machine picture
WFJ 30/60/80
drawing picture
Parameter
model |
WFJ-80 |
WFJ-60 |
WFJ-30 |
Spindle speed(r/min) |
2800 |
2800 |
3800 |
Dust collector motor (KW) |
30 |
30 |
18.5 |
Crushing motor(KW) |
55 |
45 |
22 |
Graded motor(KW) |
5.5 |
5.5 |
4 |
Feed motor(KW) |
1.5 |
1.5 |
0.75 |
Output motor(KW) |
1.5 |
1.5 |
0.75 |
fineness(mesh) |
100-320(adjust) |
80-320(adjust) |
60-320(adjuest) |
Cutting tool material |
96 Silicon alloy |
||
Material hardness |
HRC60~62 |
HRC60~62 |
HRC60~62 |
Wall thickness of pulse bag filter |
3.5mm |
3.0mm |
2.5mm |
production(kg/h) |
200~1500 |
200~1000 |
150~800 |
size |
7600×2400×4830 |
7200×2100×3500 |
6640 × 1300 ×3960 |
material |
SUS304 |
SUS304 |
SUS304 |
weight(kg) |
3800 |
3700 |
1500 |
WFJ 8
1.feeding motor
moudle |
power |
speed ratio |
Output speed |
Speed range |
MB-W04Y-CS |
0.37KW |
1:5 |
1400rpm |
40-200rpm |
2.Crushing motor
mould |
power |
Output speed |
Y160M1-2 |
5.5KW |
2930rpm |
3.Graded motor
mould |
power |
Output speed |
Speed range |
MBL07Y-C5 |
0.55KW |
1400rpm |
40-200rpm |
4.wind off motor
mould |
power |
Speed range |
YS7144-4 |
0.55KW |
40rpm |
5.Centrifugal blower
mould |
power |
speed |
Full press |
flow |
9-19 |
2.2KW |
2900rpm |
4447pa |
2062m3/h |
Parameter
style |
WFJ-8 |
production (kg/h) |
10-60 |
Feeding mesh(mm) |
< 8 |
Out put (mesh) |
80-320 |
power (kw) |
13.5 |
Spindle speed(r/min) |
-5800 |
size(mm) |
1350 × 1250 ×2100 |
