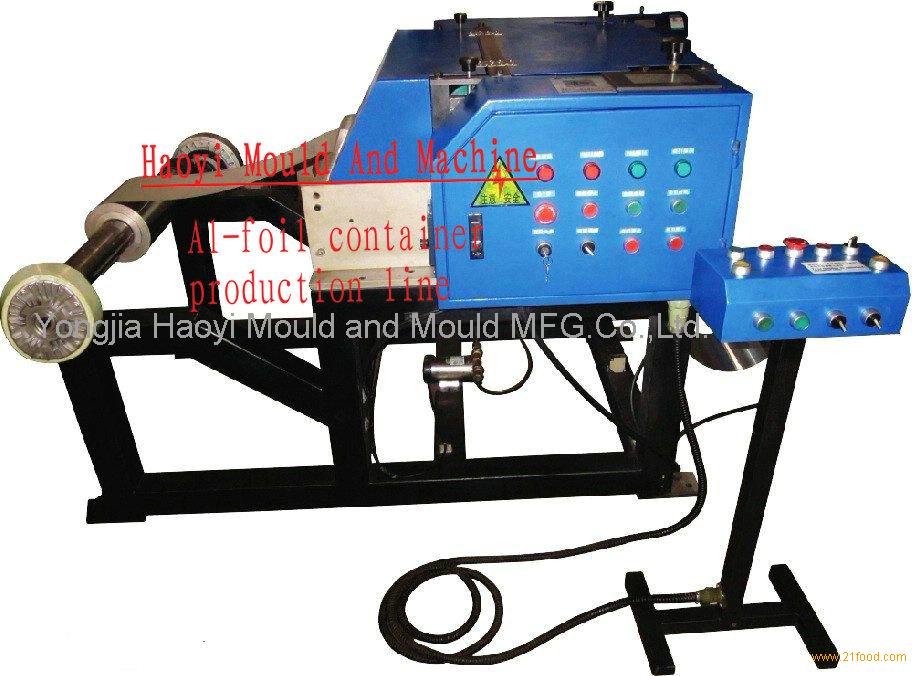

aluminum foil container machine feeder,China HY price supplier

Feeder is a important part of production line,is used for punch raw material
 and set length and feeding automatically,also have uprush and press gas,

disinfection automatically,wash products and embossing.It can adjust pressure''s speed,

inching/continue,air blast angle and auto-lubrication.

Product features:

Auto-Hydraulic feeding faction(select by favorites)

Obturatorspindle and feeding by air operated

Double magnetic powder tension control system to make the tension control more smooth

Punching Oil auto-recirculating system,is good for series of alu-foil container''s production,and save gas.

Closed fuel tank,layout resonable

Using high wear-resisting of silicon roller,so that the machine can work longlife.

complete machine linkage,adopt touchscreen and PLC computer control, accuracy higher

Portable type command Control consol,so that operation is much easier and more convenience

Simplified style tracking system,good for prodution

Technical data：

Max rack weight:3T

Max rolling diameter:1200MM.

Max feeding width;580MM.

Feeding speed:10-60M/MIN

Length range:30-999MM

Accurancy of feeding; ±0.6MM

Machine power:4Kw

Net weight;1200KG

Size:1540*1250*1100MM(L*W*H)
