ASTM E4 Bi-direction tensile tester of medical patches,non-woven fabrics SYSTESTER China,China SYSTESTER price supplier

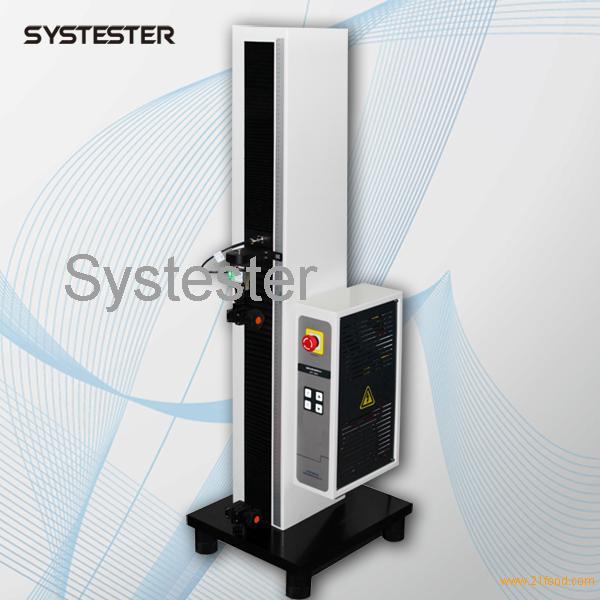

ASTM E4 Bi-direction tensile tester of medical patches,non-woven fabrics SYSTESTER China

FOB Price:Price can be negotiated

Production Capacity:10000PCS

Payment Terms: TT/LC

Update Time:2016-08-02

Contact Supplier

Product Description

Brand: SYSTESTER

Application

ASTM E4 Bi-direction tensile tester of medical patches,non-woven fabrics SYSTESTER China apply to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style/90/180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

Main feature:

1. Controlled by computer.

2. High performance servo drive.

3. Bi-direction test.

4. Highly accurate load cell.

5. Selectable load range: 500N, 1000N, 2000N, 3000N, 5000N.

7. Software interface is friendly, easy to operate.

8. ISO, ASTM standards test available, Non-standard test available.

9. Various analysis functions.

10. Overload, limit protection.

11. Test speed can be preset freely through software.

Technical indexes:

Load cell range	5N,50N,100N,250N,500N,1000N,1500N(personal customization available)
Accuracy	1
Displacement resolution	0.001mm
Test speed	0.01~700mm/min
Travel distance	1100mm
Sample width	38mm customization
Sample thickness	8mm customization
Dimension	380mm(L) 450mm(B) 1309mm(H)
Power supply	AC 110V 60Hz
Net wight	88KG

ASTM E4 Bi-direction tensile tester of medical patches,non-woven fabrics SYSTESTER China

Standards

ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, GB1040, GB8808, GB4805, GB7753, GB 7754, GB 453, GB/T17200, GB/T16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, JIS P8113, QB/T2358, QB/T 1130

Relative product:

SYSTESTER micro-peeling tester, Automatic coefficient of friction tester, Thickness tester SYSTESTER China etc.

Other Products

Automatic (SYSTESTER)water vapor permeability tester of plastic films

ASTM standard water vapor transmission rate tester of aluminum foils and laminated films

Computer control air transmission rate tester (SYSTESTER) oxygen gas permeability tester

ASTM F2054 standard Package strength tester of paperbag (SYSTESTER) leakage tester of cans
