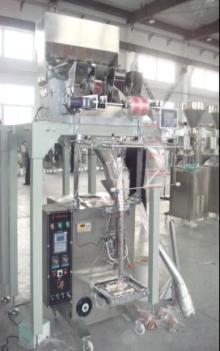

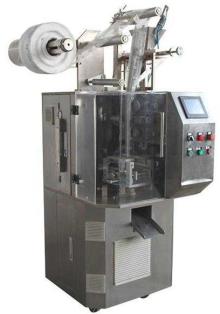

Auto Ketchup Filling Machine

FOB Price:Price can be negotiated

Production Capacity:100

Payment Terms: FOB

Update Time:2012-07-07

Contact Supplier

Product Description

Applications:
1. It is suitable for automatically packaging of viscous products as tomato sauce, lotion, noodle jam, edible oil ,meat jam and broth.
2. The process of bag making measuring, filling, sealing, counting and hot pressing codes can be done automatically.
3. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE,PET/PE,NYLON etc.

Features:
1. All stainless steel cover meets to GMP standard.
2. The machine is suitable for hot filling and assembling attemperator depend on customer’s
requirement.
3. Automatic adjustment of pouch size and filling range.
4. Automatic self-support lubricating system, the machine can work 24 hours.
5. The operation facility is controlled by American Intel computer, all function is displayed with digital screen.
6. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ±2%.
7. The machine can be equipped with a product stirrer and heated jacket for high temperature product packaging.
8. Rotary valve and plunger pump is used in this machine to avoid material blocking the feeding pipe
9. Ink printer and Conveyor are as an option.

Technical Data:

Item

TSE-DXDJ-40II

TSE-DXDJ-150II

Bag size

(L) 55-110mm/(W)30-80mm

(L) 70-150mm/(W)70-115mm

Capacity

40-100 bags/min

35-80 bags/min

Filling range

40ml (max)

150ml (max)

Power

220V,50HZ,1.5KW

220V,50HZ,1.9KW

Weight

340 KG

360 KG

Other Products

Sugar Powder Packing Machine

Automatic Pillow Packing Machine

Tea Packing Machine

Coffee Packing Machine

Company Profile

Name: Taian Shelley Engineering Cor., Ltd

Main Products: packaging machine,tea bag packing machine,food packing machine

Business Type: Manufacture

Total Employees: 50 ~ 100

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: Greatwall street, Tai'an City, Shandong Province, China

Tai'an Shelley Engineering Cor., Ltd, located in Taian, Shandong Province, China, is a company incorporating design, manufacture, service and supporting a complete line of machinery for powder, granular and sauce material packing demands. The machinery is widely used in the packaging of food Products, pharmaceuticals, chemicals, cosmetics, etc. Till now, Machinery has been sold to more than forty countries in the world.

The major Products include:

1. Combined Weighing Full Automatic Packing System

2. Solid Measuring and Packaging Production Line

3. Semi-auto Packaging Machine Combined by Chain

4. Volume Metering Auto Packaging Machine

5. Spiral Powder Full Automatic Packing System

6. Automatic Miniature Vertical Packing Machines

7. Automatic Multifunction Pillow Packing Machine

8. Rotary Pillow Packing Machine

9. Down-paper Pillow Packing Machine

10. Fully Automatic Weighing and Packing Unit

11. Double-Hopper Automatic Weighing and Subpacking Unit

Based on our tenet of "straight-out management notion, outstanding quality products, and favorable after-sales services", we have gained extensive recognition among our customers from at home and abroad and built up long-term relationships with them..

We promise to offer the best quality products, the most reasonable price and the most professional and quickest after-sales services for our clients! We are looking forward to establishing relationships with you in the near future.

Item	TSE-DXDJ-40II	TSE-DXDJ-150II
Bag size	(L) 55-110mm/(W)30-80mm	(L) 70-150mm/(W)70-115mm
Capacity	40-100 bags/min	35-80 bags/min
Filling range	40ml (max)	150ml (max)
Power	220V,50HZ,1.5KW	220V,50HZ,1.9KW
Weight	340 KG	360 KG
