Auto saffron packing machine JT-420W
1.Food Packaging Machine
2.Electrical part is SIEMENS
3.Automatic

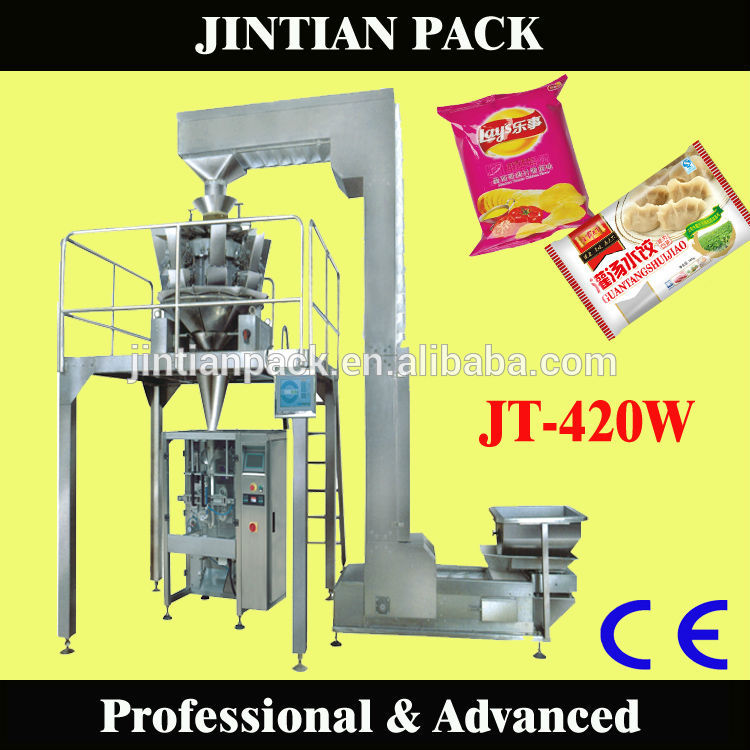

Auto saffron packing machine JT-420W
Automatic packing machine JT-420W including:
JT-420 packing machine
JT-10 Multihead weigher
JT-130 Finished products conveyer
JT-350 Z-shaped Elevator
JT-2-2 Platform
Automatic packing machine JT-420W---Application:
Suitable for many kinds of products ; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.
Automatic packing machine JT-420W--- Specification
JT-420 Automatic vertical packing machine
Technical characteristics:
1. It is controlled by a micro computer,just touching the screen,and the operation is simple .
2. PLC computer system , function is more stable and don’t need to stop machine.
3. Temperature independent control system ,precision degree can get to±1°C.
4. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing Material.
5. Packing type diversification , pillow sealing, standing type ,punching etc.
6. Bag–making , sealing, packing, print date in one operation.
Technical parameters
| Type |
JT-420 |
| Bag length |
50-300mm(L) |
| Bag width |
50-200mm(W) |
| Max width of roll film |
420mm |
| Packing speed |
5-60bags/min |
| Measuring range |
150-1200ml |
| Air consumption |
0.65mpa |
| Gas consumption |
0.3m³/min |
| Power voltage |
220VAC/50Hz |
| Power |
2.2KW |
| Dimension |
(L)1080mm*(W)1300mm*(H)1400mm |
| Deadwight of machine |
600kg |
JT-10 Multihead weigher (Automatic packing machine)
Technical characteristics:
1.High precision data-type weighing sensor realizes precise weighing.
2.IP65 grade water-proof and dust-proof design. It’s clear with all stainless steel parts. Full sealed design prevents accumulation of material.
3.It can fine the opening and closing speed of hopper door according to the feather of items to be weighted.
4.With powerful digital automatic counting function.
Technical parameters:
| Type |
JT-10 |
| Measure number |
10 |
| Range of single weighing |
10-1000g |
| Quantity precision |
0.1-1.5g |
| Average tolerance of single bag |
0.2-0.7g |
| Weighing speed |
50-100bags/min |
| Hopper capacity |
1300ml |
| Hopper type |
Double hoppers without memory |
| Preliminary programs |
99kinds |
| Net/gross |
300/370Kg |
| Overall size |
(L)1680×(W)1210×(H)1140mm |
JT-130 Finished products conveyer
JT-350 Z-shaped automatic material elevator
Technical parameters:
| Model |
JT-130 |
JT-350 |
| Convey speed |
800mm |
3750mm |
| Power |
40W |
750W |
| Convey Measure |
200mm/min |
4T/H(Rice) |
| Overall size |
1300(L)×430(W)×890(H)mm |
3000(L)×650(W)×3750(H)mm |
JT-2-2 Platform
Technical parameters:
| Model |
JT-2-2 Platform |
| Maximum Loading Weight |
2T-3T |
| Equipment Size |
2000mm*2000mm*2000mm |
| Net Weight |
350kg |
Packaging size:
| Name |
G/N |
Packaging size |
Total |
| JT-420 packing machine |
660kg 600kg |
(L) 1600mm * (W) 1250mm * (H) 1600mm |
3.2CBM |
| JT-10 multihead weigher |
300kg 220kg |
(L)1240mm×(W)1180mm×(H)1460mm |
2.2CBM |
| JT-130 conveyor |
100kg 80kg |
(L)1730mm×(W)580mm×(H)760mm |
0.76CBM |
| JT-350 elevator |
300kg 250kg |
(L)2060mm×(W)1060mm×(H)1050mm |
2.3CBM |
| JT-2-2 platform |
330kg 280kg |
(L)2060mm×(W)1910mm×(H)500mm |
2.0CBM |
| Type: |
Other
|
Condition: |
New
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
|
| Packaging Type: |
Stand-up Pouch,Bags,Film,Pouch
|
Packaging Material: |
Plastic,Paper
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Pneumatic
|
Voltage: |
220V
|
Power: |
4KW
|
| Place of Origin: |
GUA,Guangdong, China (Mainland) China (Mainland)
|
Brand Name: |
Jintian
|
Model Number: |
JT-420W
|
| Weight: |
1000kg
|
Dimension(L*W*H): |
1080(L) X1300(W) X1400(H)mm
|
Certification: |
CE
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Machine material: |
Stainless steel or mild steel
|
Types of seals: |
KIS horizontal,vertical,45°
|
| Packing material: |
OPP/CPP,CPP/PE,MST/PE,PET/PE
|
Bag formats: |
Pillow bag,flat bottom bag etc.
|
Measuring range: |
Within 5kg
|
| The machine color: |
according to customers' require
|
Range of application: |
Liquid,powder,granule etc.
|
Research capacity: |
Design for every client
|
| Type of machines: |
Vertical and pillow packing machine
|
