Autoclave Reactor, Rotary Reactor, Chemical Reactor

FOB Price:Price can be negotiated

Production Capacity:10Set/Sets,per mouth

Payment Terms: L/C,T/T,Western Union

Update Time:2023-07-28

Contact Supplier

Product Description

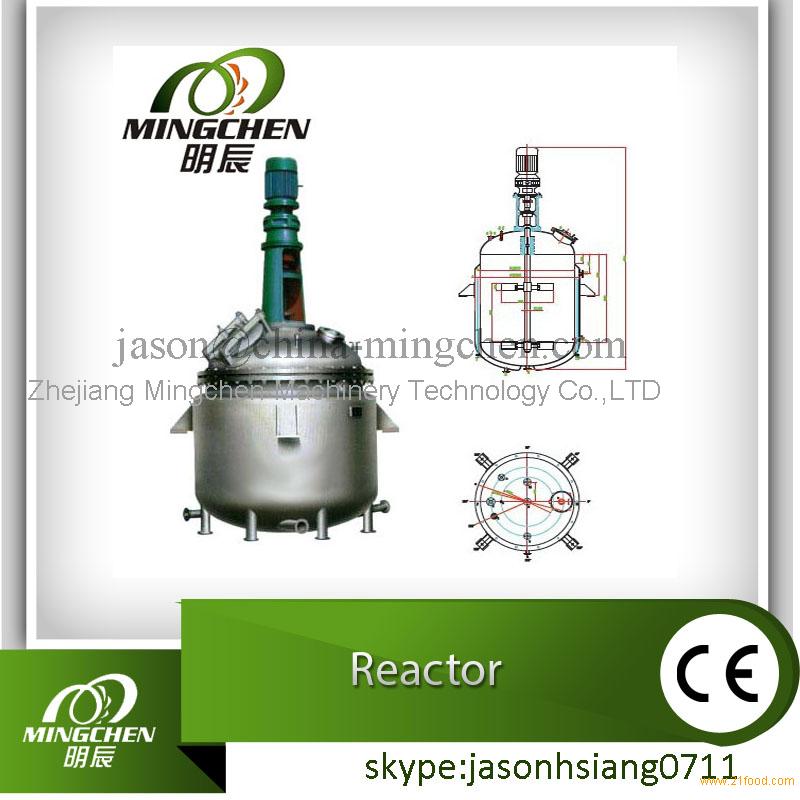

WJG Series Sanitary Stainless Steel Reactor

Packaging & Delivery

Packaging Details:	Wooden box( according to customers' requirement)
Delivery Detail:	30-60days (according to concrete situation)

Introduction of Sanitary stainless steel reactor

(1) WJG series Reactor is used in pharmacy, chemical project, fine chemicals and composed chemical industry.

(2) The Material of reactor adopts SUS304 or SUS316L.The pot body has jacket,and the jacket structure is of standard jacket, outer circular pipe jacket and Milo plate HONEY net jacket to be closed. It can be heated or cooled;inner surface adopts mirror polish,no dead angle,and closed design to ensure material in asepsis condition.

(3) The conic tip processed by spinning pressure,up to cGMP standard. The agitator of reactor adopts sanitary mechanical seal, container insulation adopts polyurethane or alumina silicate, joint adopts ISO standard quick open clamp,sanitary and easy,transferring sledge processed by spinning pressure, outer surface adopts polish, sand-blast, dull polish or cold rolled original color subtopics, so to show the good quality of containers in everyoccasion.

(4) The reactor equips with asepsis respirator,CIP cleaning spray tip, sight glass, and flange quick open manhole.

Technical Parameters

Model	Capacity(L)	I.D.	DIAMETER OF JACKET	MOTOR POWER	REDUCER TYPER	R.P.M
WJG-30	30	400	500	0.6~1.1	M2	60~85
WJG-50	50	500	600	0.6~1.1	M3	60~85
WJG-100	100	550	650	1.1~1.5	M4	60~85
WJG-150	150	600	700	2.2	M6	60~85
WJG-200	200	650	750	2.2	M6	60~85
WJG-300	300	800	900	2.2	M6	60~85
WJG-500	500	900	1000	2.2	M6	60~85
WJG-800	800	1100	1200	4	M8	60~85
WJG-1000	1000	1200	1300	4	M8	60~85
WJG-1500	1500	1300	1400	4	M8	60~85
WJG-2000	2000	1400	1500	4	M8	60~85
WJG-2500	2500	1400	1500	7.5	BLB7.5-4-13	90
WJG-3000	3000	1400	1500	7.5	BLB7.5-4-13	90
WJG-3500	3500	1400	1500	7.5	BLB7.5-4-13	90
WJG-4000	4000	1500	1600	7.5	BLB7.5-4-13	63
WJG-5000	5000	1600	1700	7.5	BLB7.5-4-13	63
WJG-6000	6000	1800	1900	15	BLB7.5-4-13	100
WJG-8000	8000	2000	2100	15	BLB7.5-4-13	100
