FEATURES
Stepper motor controls the outer bag; precision of location and stabilization of bag length.
PID temperature adjuster; Accuracy of temperature control.
PLC controls the whole machine; sensitive touch interface displays; convenient operation.
Contact parts are made of SUS304 stainless steel; cleanness of bags.
Some working cylinders are imported with original packaging; accuracy and stabilization of functioning.
Additional device of this equipment can carry out horizontal cropping, Date printing, sealing and so on.
TECHNICAL DATA :
| FILLING RANGE |
3-15 ml |
| CAPACITY |
30-40 bag/min |
| INNER BAG SIZE |
W: 50-80 mm L: 50-70 mm |
| OUTER BAG SIZE |
W: 70-90 mm L: 80-120 mm |
| TAG SIZE |
W: 25mm L: 18-22mm |
| THREAD LENGTH |
155mm |
| TOTAL POWER |
220V/50HZ/3.5KW |
| DIMENSION(L*W*H) |
750*1360*1600 mm |
| WEIGHT |
500KG |
|
DIMENSION |
1290*780*180 |
| MATERIAL OF EQUIPMENT |
Stainless steel |
DETAILS:
Delivery:
Receiving 30% down payment, we arrange the production of the specific machine.
Production cycle is about 15 work days.
After the production finished, we notify customer to pay the 70% commodity price and then we deliver the goods.
Transit time to port of loading is about 15 days.
FOB and T/T are adopted
Engineers available to service machinery overseas

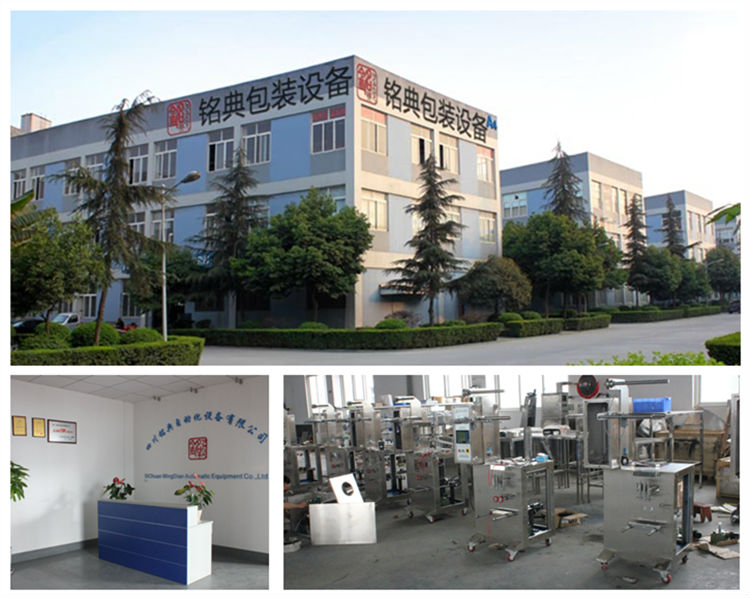

Sichuan Mingdian Automatic Equipment Co.,Ltd located in Chengdu city is a professional
manufacturer.
We specialized in fully automatic vertical packaging machinery, and integrates R&D,
manufacturing, sales and service altogether.
Our machines are widely used for automatic packaging of liquid, powder, granule and
viscous products in food, pharmaceutical, daily chemical and agrichemical fields.
With principle of Good Faith, Quality First, Top Technology for Development, our
company is devoted to be a global packaging machinery supplier.
Based on advanced packaging philosophy, professional R&D team and abundant
packaging experiences, we provide reliable, high efficiency and good quality vertical
packaging machinery to customers.
1. Payment: T/T in advance. 30% down payment, 70% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
3. Customization is available.
5. What’s the information should I let you know if I want to get a full quotation?
Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
6. When we create our own artwork design, what kind of format is available for you?
The popular format: AI, JPEG, CDR,PSD, TIF
7. Wooden case packed with machine and English manule
8. Transformer is provided
9. Technical manual in English is provided
10. The machine is stainless steel
11. In the line of exporting packing material
Sichuan Mingdian Automatic Equipment Co., Ltd, which located in beautiful Chengdu city, is a professional manufacturer specialized in fully automatic vertical packaging machinery, and integrates R&D, manufacturing, sales and service altogether. Our machines are widely used for automatic packaging of liquid, powder, granule and viscous products in food, pharmaceutical, daily chemical and agrichemical fields. With principle of Good Faith, Quality First, Top Technology for Development, our company isdevoted to be a global packaging machinery supplier. Based on advanced packaging philosophy, professional R&D team and abundant packaging experiences, we provide reliable, high efficiency and good quality vertical packaging machinery to customers.
