Automatic 3in1 soda water filling machine,China SANOFI price supplier

Automatic 3in1 soda water filling machine

FOB Price:Price can be negotiated

Update Time:2023-05-03

Contact Supplier

Product Description

Specifications

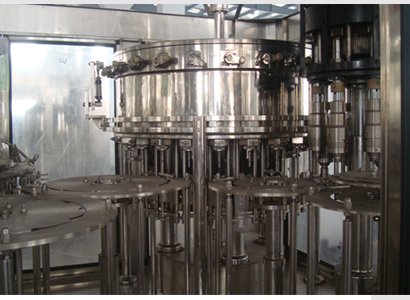

Automatic soda water Filling Machine include:3in1 washing,filling ,capping unit.
capacity:2000-20000B/H
Material :SS304

1.Automatic soda water filling machine use the heat-resisting rubber, has satisfied the user high temperature disinfection technological requirement:

2.carbonated drinks filling machine used the PCL programmable controller, realized entered machine the completely automatic control which from the jar finished to the packing to use the frequency conversion velocity modulation control, easy user adjustment accent to prepare, has satisfied the different craft to the productivity request; Used the equi pressure to fill installs the principle and the popular spring valve, had guaranteed the drink quality,
3 .used the advanced magnetic force meeting and parting adjustment to twist covers the moment of force installment, has guaranteed the sealing quality.

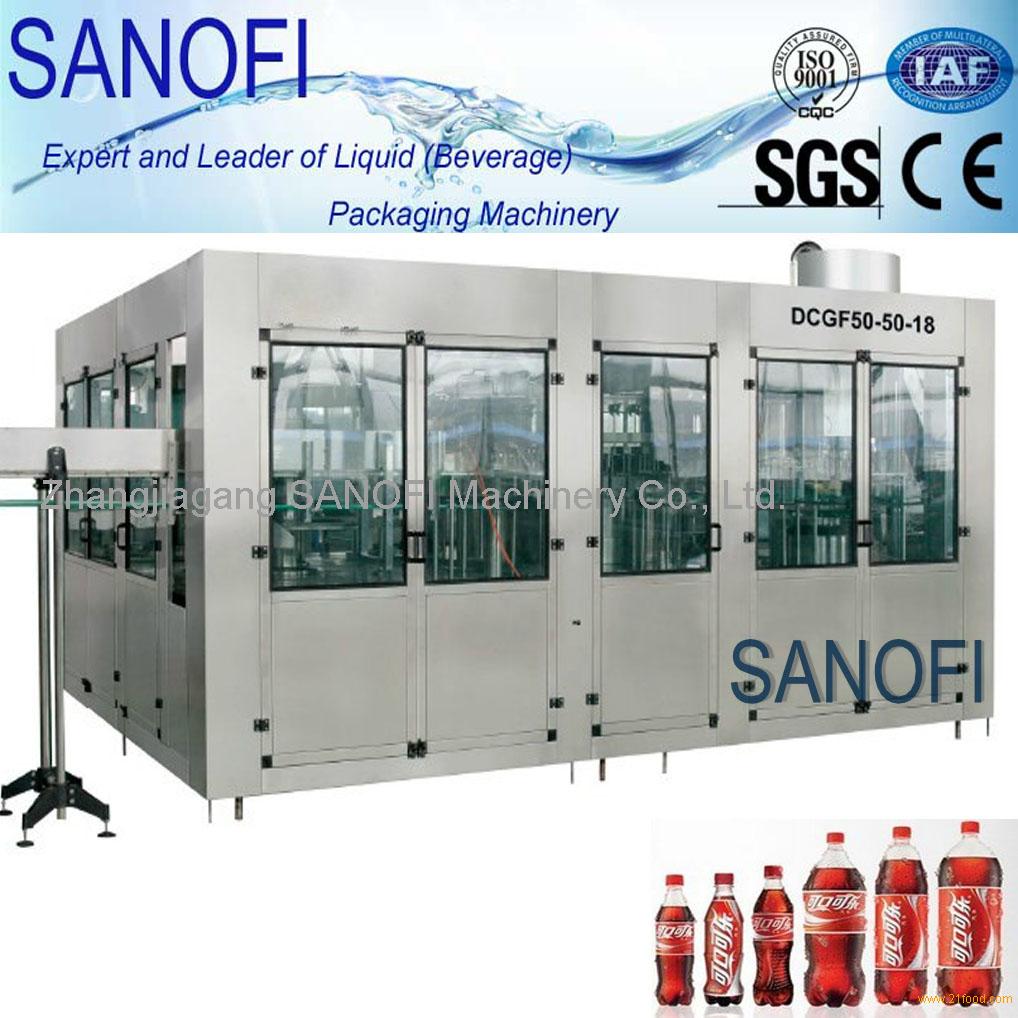

Automatic 3in1 soda water filling machine

Main technical parameters
Model	CGFD16126	CGFD18186	CGFD24248	CGFD32328	CGFD404010	CGFD505012	CGFD606015	CGFD808020
washing/filling/ capping heads	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	80-80-20
Specifications for bottle (mm)	Φ=50-100 H=170 330-1500ML			Φ50-Φ110 H=160-340
Capacity(350ML) B/H	2000- 4000	4000- 6000	8000- 10000	10000-12500	12500 -15000	16000 -20000	20000 -24000	26000 -32000
Filling temperature (°C)	0-5
Filling ways	Normal pressure filling
pressure (MPa)	0.2-0.25			0.2-0.25
filling pressure (MPa)	0.15-0.35	0.15-0.35	0.15-0.35	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
MotorPower (Kw)	1.5+0.55 +0.12	2.2+0.55 +0.18	3+0.55 +0.18	5.5+0.55 +0.18	7.5	11	15	19
Dimension (L×W×H) (mm)	2300×1600 ×2500	2600×1920 ×2550	3100×2200 ×2800	3850×3000 ×2850	4850×3800 ×2750	5750×3550 ×2750	6500×5500 ×2750	7680×6640 ×2650
Weight (kg)	2800	3650	4800	6800	8650	10500	12800	15000
