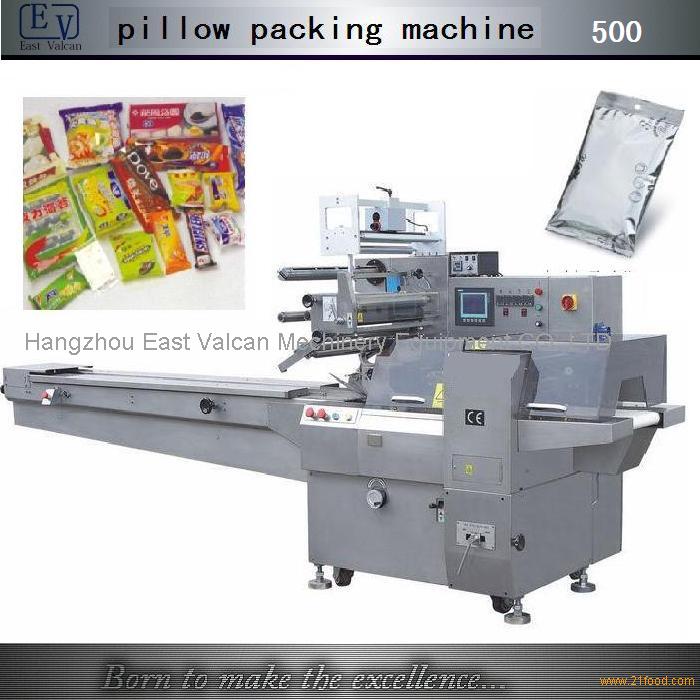

Automatic Biscuit packing machine
Application
This machine suits for packing grains,such as biscuit,bread,water ice,mooncake,medicine,knife and so on.
Description
1.Logical structure of machine,stable performace,and easy operation.
2.High accuracy photoelectric tracking system.Adopt high quality encoder and the first bag will be tracked.
3.When machine stops,horizontal sealing Cutter angle can be set freely,vertical sealing wheel open automatically,so that no product is scaled by high temperature.
4.Special designed bg forming device can be fast adjusted to fit differentsies of different products.
5.Lifting horizontal sealing device,convenient to adjust to get beautiful sealing.
6.Passive paper pulling device can freely adjust the tightness of the packing.
Technical parameter
| standard type | extended type | |
| packing speed | 20-200bag/min | 20-200bag/min |
| packing length | 90-180mm(two cutters) 150-360mm(one cutter) | 120-200mm(two cutters) 180-460mm(one cutter) |
| packing width | 200mm | 200mm |
| packing height | 70mm | 100mm |
| film width | 430mm | 500mm |
| power | 3.0kw | 3.0kw |
| weight | 1000kg | 1000kg |
| outline size | L3800*1150*1500mm | L3800*1150*1500mm |
Pictures
Evalcan Machinery & Equipment Co., Ltd. is a professional supplier in industrial machinery. Special in designing, developing and producing of food machinery, packing machinery and accessary equipments. Over the years, EV has always been adhering to the development purposes of "customers first, quality first" and "attaching importance to customers' every penny investment", we always on the customers' grounds to customize the most appropriate products.
