Automatic Bottle Capper (CP-100A),China TPS. price supplier

Descriptions:

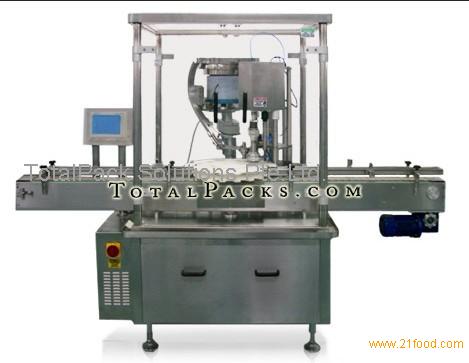

The CP-100A automatic rotary chuck capper is designed and used to secure caps to bottles. It is an ideal equipment for high torque capping operation with up to 50 caps per minute and widely used in the cosmetic, pharmaceutical, chemical, foodstuff etc industry.

Features:

Can used for both aluminum cap and plastic cap.
Can work for different kind of bottle size by changing the turntable.
Capper with no bottle, no cap mechanism.
Vibrating cap loading system.
Unique capping head with pneumatic adjustable clamp.
Adjustable cap holding pressure and amortize system ensures no damage to the cap surface.
All stainless steel construction to meet cGMP standard.
Simple and easy to change parts for different bottle and cap sizes.
2.4 meter conveyor is included together with the capper.
elevator is optional for big size caps.

Specifications:
Capper power supply: 220v 1phase or 110v 1phase. Optional.
Capping speed: 50 - 60 caps / min
Cap diameter: 10 - 60mm.
Cap height: 10 - 25 mm.
Bottle diameter: 15 - 100 mm.
Bottle height: 60 - 150 mm.
Capper dimension (L x W x H): 1900*1000*1900 mm.
Capper Weight: 500 kg.
