Automatic Carbonated Drink Bottle Filling Machine

FOB Price:Price can be negotiated
Production Capacity:50 Set/Sets per Year Automatic Carbona
Payment Terms: US $30,000 - 100,000 / Set
Update Time:2014-09-19
Product Description

Automatic Carbonated Drink Bottle Filling Machine
1.Used for carbonated drink
2.Capacity:2000~30000bph

 Automatic Carbonated Drink Bottle Filling Machine



1. The suspending bottle-neck cramping design assures whole production line more stable during the working process and it also avoids malfunctions caused by the different bottle thickness or height. The design also dramatically reduces the required quantities of interchange parts which make it more convenient to change different types of bottles on washing, filling and capping.

2. Advanced gravity filling technology from Germany and Italy is applied on the machine, which assure quick filling and high accuracy of liquid level control.

3. Magnetic torque is applied on bottle screw-capping. Constant screw capping power can be adjustable stepless and therefore will not hurt the bottles at all.

4. Horizontal swirl cap sorting device is applied to avoid damaging caps. No caps, no capping; No caps, feeding system run automatically.

5. Human-machine interface touch-screen and PLC control system are adopted on the machine. Liquid level in the tank is controlled automatically. No bottles, no filling, no capping.

6. All parts connected with water are made of food grade stainless steel.

7. All main components makers are world-known manufacturers



Technique parameter:

Model:

DCGF18-18-6

DCGF24-24-8

DCGF32-32-12

DCGF40-40-12

Capacity :500ml

5000

8000

12000

15000

Bottle shape:

roud or square

PET bottle: (mm)

(Bottle Diameter):φ50-.φ110mm   (Height):150-340mm

Cap:

PE srew cap

Filling precision:

≤±5mm

Filling pressure:(Mpa)

0.15-0.35

0.15-0.35

0.15-0.35

0.15-0.35

Rinsing pressure:(Mpa)

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

Filling volume :(L)

3.5

4

6

8

Overall size:(mm)

2450*1800
*2350

2780*2200
*2350

3600*2650
*2350

3800*2950
*2400

Weight: (kg)

3500

4500

5500

6500

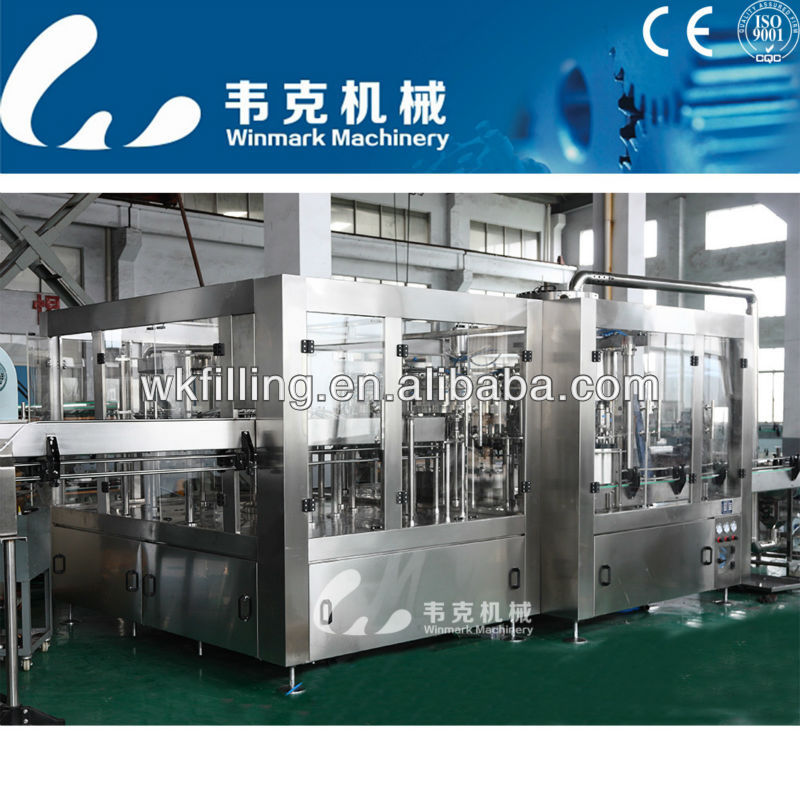

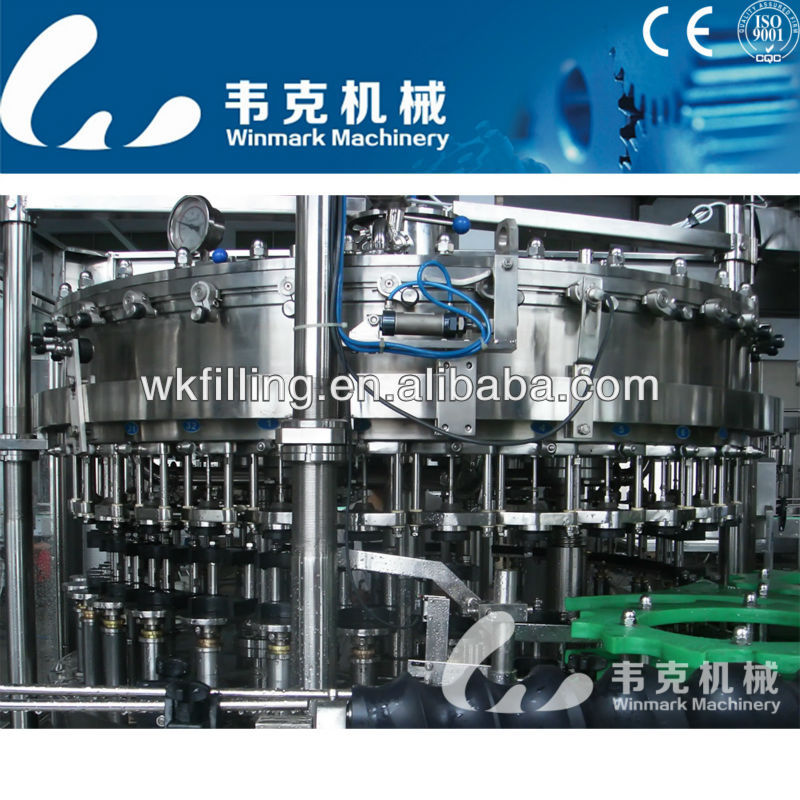

  the picture of the carbonated drink filling machine:

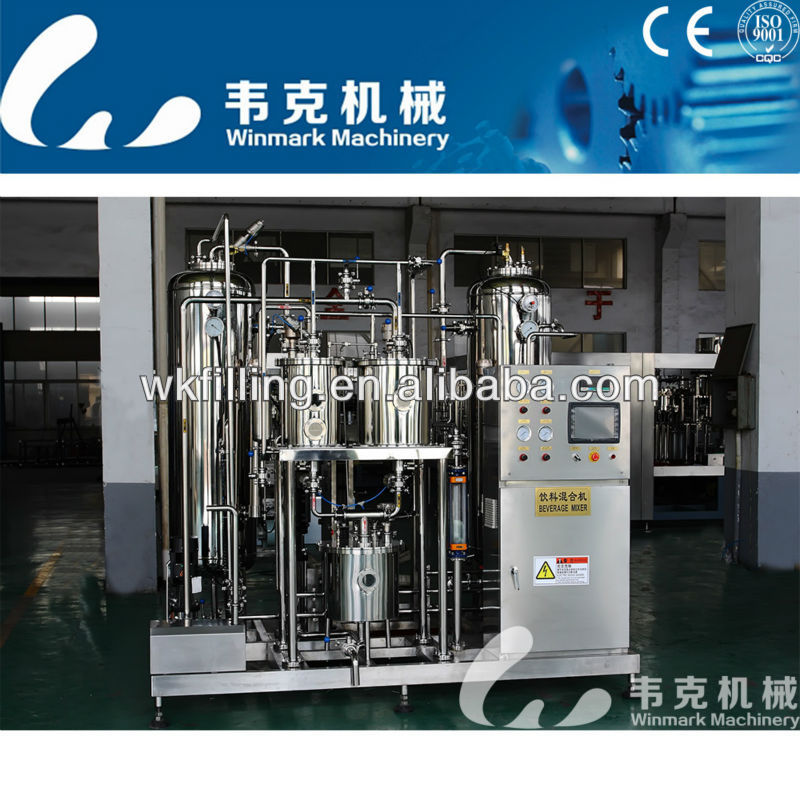

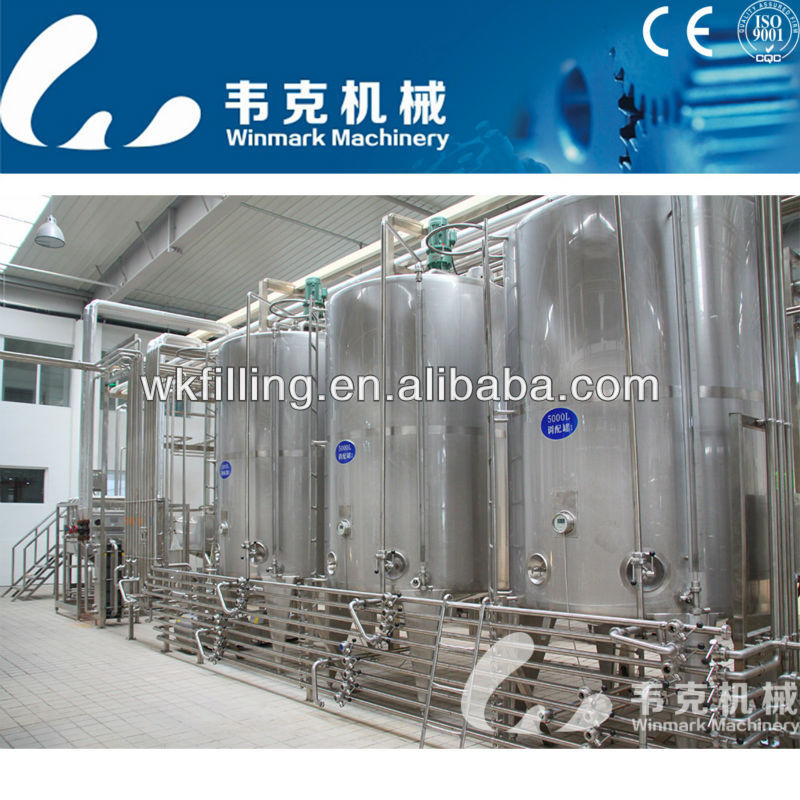

About pretreatment system of the carbonated drink filling:

the flow chat:  sugar melting tank→ syrup filter→ beverage pump→blending tank→carbonated beverage mixer →chilling system











Zhangjiagang Winmark automatic carbonated drink bottle filling machine

> Package&Delivery





How to get your suitable machine or production line ?







Please reply to the following questions, do it and give your answers to us as possible as you can.



1.What kind of products will you produce?



2. What kind of product sze: volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .



3. What is the capacity(per hour) you want ?



4. Single machine or whole production line .



5. Your power supply



then we can offer you more detailed quotation and other information you need .







What Winmark Machinery Co.,Ltd can offer you ?







Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water Treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.







Winmark Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line installation to operator training and other after-sales services .

Condition:
New
Place of Origin:
Jiangsu China (Mainland)
Brand Name:
Winmark
Model Number:
DCGF
Voltage:
380V
Power(W):
3.8KW
Weight:
4000KG
Dimension(L*W*H):
2950*2150*2400
Processing Types:
JUICE
Processing:
FILLING MACHINE,Other
Certification:
CE ISO,CE ISO
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
AutomaticCarbonatedDrinkFillingMachine:
Automatic Carbonated Drink Bottle Filling Machine
packing type:
bottles
control:
PLC control
driven type:
eletric
quality:
technique from Taiwan
capacity:
2000bph-20000bph
material:
stainless steel304
applicable:
200ml-2L
Other Products
Company Profile
Name: Zhangjiagang Winmark Machinery Co., Ltd.
Main Products: Filling Machine,Water Treatment,Packing Machine,Carbonated Drink Production Line,Drinking Water Production Line
Business Type: Manufacturer, Trading Company
Total Employees: 11 - 50 People
Established Year: 2012
Main Markets: Domestic Market, South Asia, Northern Europe, Western Europe, Eastern Asia
Address: Guotai Easten Plaza 706
Zhangjiagang Winmark Machinery Co., Ltd. is a joint venture. We are a professional manufacturer and exporter of middle-small type beer and drink filling equipment. We have a basic manufacturing base in local city.

Our company persists in taking markets as guidance, taking science and technology as head, taking the quality as main line and taking service as guarantee, to set up a complete quality guarantee system. We have passed ISO9001-2000 International Quality System Certification. We are equipped with perfect testing and inspecting facilities.

Our company has a high-quality technology development team and production experience. There are totally 20 special engineers working for developing and designing. Main techniques come from Italy, France and Germany and also combine Chinese real country situations. We have researched and developed high-starting and advanced technical liquid filling equipment. The automatic level could achieve the level of the end of 1990. Our company's after selling dept. specially takes charge of installation, debugging, maintaining and repairing our equipment. Also after selling dept. is the window for connecting clients. The sentence of "we're the clients" makes all service staff consider for users all the time, and put users in heart. Then they realize the exact meaning of "clients are god".

Our company supplies pure draft beer production lines with capacity 2,000-10,000BPH; common beer production lines with capacity 2,000-20,000BPH; PET bottle fresh draft beer production lines with capacity 2,000-20,000BPH; tea & juice hot filling production lines, pure water & mineral water filling lines, and carbonated drink production lines, with capacity 2,000-20,000BPH; can beverage production lines with capacity 0-280CPM; 3-5 gallon barrel water filling lines with capacity 50-600BPH, and all kinds of matching equipment. And we could supply all turnkey projects.

Our equipment users are over 200 all over more than 20 provinces, cities and municipalities in our country. Meanwhile, we export to Japan, the Middle East, Southeast Asia, South Africa, Russia, etc. Besides producing and selling equipment, we supply all kinds of technical services, help clients design the plant layout, answer clients' technical questions, teach the users techniques, direct operations, etc.
