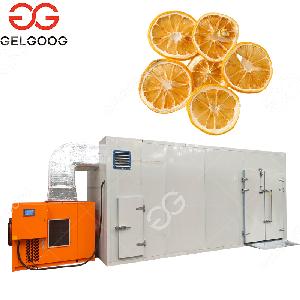

Cassava Chips Drying Machine Description
This Cassava Chips Drying Machine also called Heat Pump Fruit Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. The industrial fruit drying machine adopts medium and low temperature for drying, It is suitable for all materials that drying temperature lower than 80°C. such as fruits, dehydrated vegetables, Cereals, seafood,meat products, spices, wood, incense and so on. After drying, the fruit's original color, shape, and nutrient content can be completely retained.
Cassava Chips Drying Machine Parameter
| Item
|
Heat Pump Dryer Parameter
|
|||
| Model
|
GG-3P
|
GG-7P
|
GG-15P
|
Unit
|
| Environment temperature
|
-10-43
|
-15-43
|
-15-43
|
ºC
|
| Drying temperature range
|
30-75
|
30-75
|
30-75
|
ºC
|
| Rated power
|
4
|
12
|
21
|
Kw
|
| Maximum power
|
10
|
18
|
33
|
Kw
|
| Power supply form
|
380/3/50
|
380/3/50
|
380/3/50
|
V/Ph/Hz
|
| Temperature control accuracy
|
±1
|
±1
|
±1
|
ºC
|
| Electric heating power
|
6
|
6
|
12
|
Kw
|
| Controller
|
Single chip microcomputer/PLC+color screen control
|
|||
| Noise level
|
≤75
|
≤75
|
≤75
|
dB(A)
|
| Capacity
|
100-200
|
300-700
|
800-1500
|
Kg
|
| Dehydration capacity
|
9
|
21
|
43
|
Kg/h(=50ºC,80%)
|
Cassava Chips Drying Machine Advantages
1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 20-80°C, Max 80°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise
