Packing regular objects
1.Touch screen, dual frequency control
2.Saving time and film
3.Advanced technology, good quality
TCZB-250B Automatic chocolate bar Packing machine
Specifications:
Type |
TCZB-250B |
TCZB-250D |
TCZB-250S |
Film Width |
Max.250mm |
Max.180mm |
|
Bag length |
65 - 280mm |
90 - 220mm |
45-90mm |
Bag width |
30 - 110mm |
30-80mm |
|
Product height |
Max.40mm |
Max. 55mm |
Max.35mm |
Film roll diameter |
Max.320mm |
||
Packing speed |
40 - 230 bag s /min |
60-330 bag s /min |
|
Power |
220V,50/60HZ,2.4K W |
||
Machine size |
(L)3770×(W)670×(H)1450 |
||
Machine weight |
650Kg |
Optional Devices:
1:Date coder
2:Alternative sealing patterns and notch
3:Full Stainless

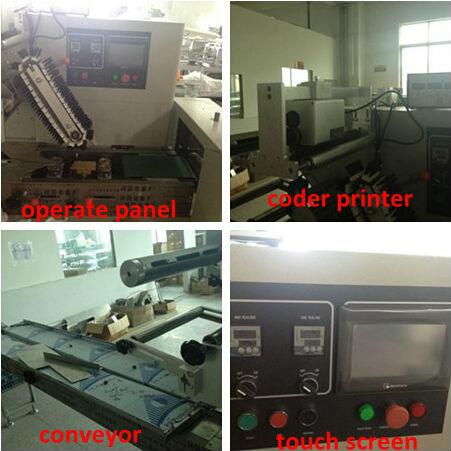

4:Touchable Screen
5: Filled with air device
6: Release the air and punching

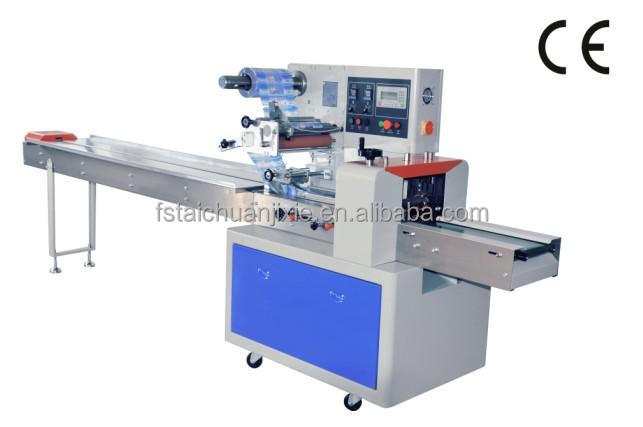

Automatic Horizontal packing machine TCZB-250B
can pack : Chocolate,Cereal.Candy,vegetables,furit.cutlery,fork,knife,bakery,chocolate bar, ice lolly,snack bar,biscuits ice cream etc...
Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting..
3. Self diagnosis failure function, clear failure display..
4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate..
5. Separate PID control to temperature, suitable for various packing materials..
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film..
7. Simple driving system, reliable working, convenient maintenance..
8. All the controls are achieved by software, convenient for function adjusting and upgrading..

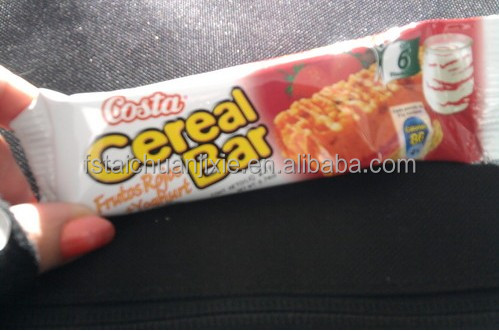

Packaging samples:
Machine press-packing :
Company Information
Foshan Taichuan Packaging Machinery Co., Ltd is located in Foshan, Guangdong. We are a professional high grade packer-manufacturing company and specialized in developing, designing and producing high efficient packing machinery series.
Our major products include automatic flow packing series, pillow packing machine and vertical packing machine series. Our products are widely suitable for food, medicine, chemicals, fodder, toys, hardware fittings, etc. The quality of our products is guaranteed by our advanced technology and imported quality material.
Spirit of our company, "Only provide the most suitable machine." Our products have been sold to more than 30 countries and regions with very competitive price and advantaged function to meet for different demand in both national and international area.
Our company strictly of management, sustained innovation and courteous service to win the trust of customers come from all over the world.
Welcome to contact us for more information about our products and services.

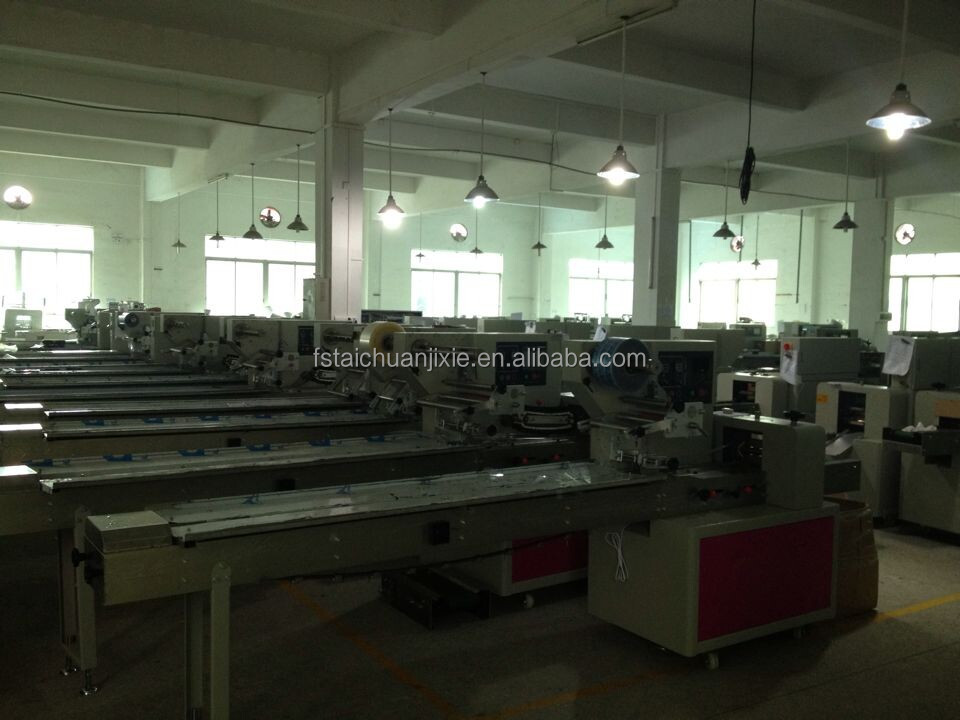

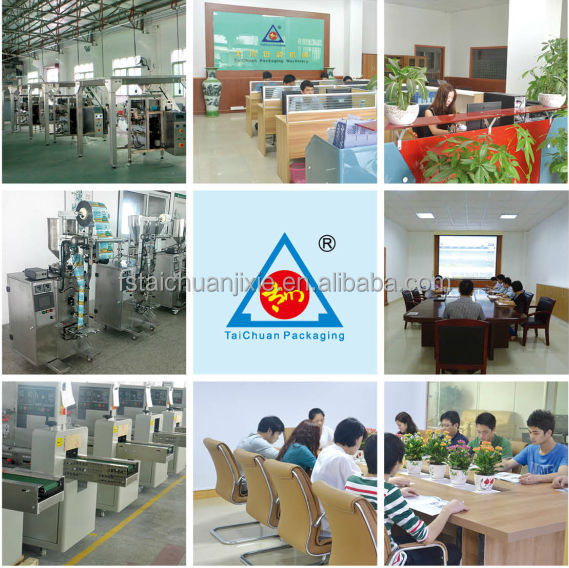

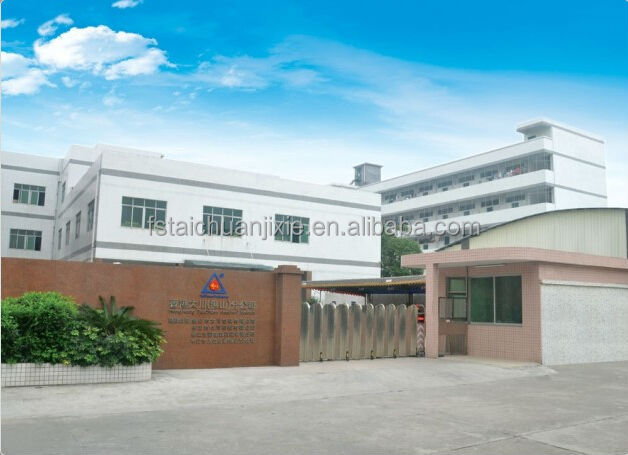

Factory picture:
Cooperation with me,we will become good partners
Type: |
Multi-Function Packaging Machine
|
Condition: |
New
|
Function: |
Wrapping
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
|
Packaging Type: |
Film
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
2.4KW
|
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
TAI-CHUAN
|
Model Number: |
TCZB-250B
|
Dimension(L*W*H): |
3770*670*1450mm
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Price terms: |
FOB,EXW ,CIF
|
INVERTER/PLC: |
Panasonic
|
SCREEN: |
Touch screen
|
Advantage: |
Saving time and film
|
Packing Material: |
OPP/CPP PT/PE KOP/CPP ALU-FOIL
|
Packing speed: |
40-230 bags/min
|
Control: |
PLC or Double Driving
|
Shape of sealed bag: |
Back sealing
|
Film material: |
Laminated film
|
All parts contacted with product: |
Stainless steel
|
