Automatic chocolate bar packing machine,China Chlbao chocolate bar packing machine price supplier

Automatic chocolate bar packing machine

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Year Brand New

Payment Terms: US $4,600 - 5,500 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

chocolate bar packing machine
1Imported Panasonic PLC control .
2high speed:max 200bags / min .
3CE;high quality with good pr

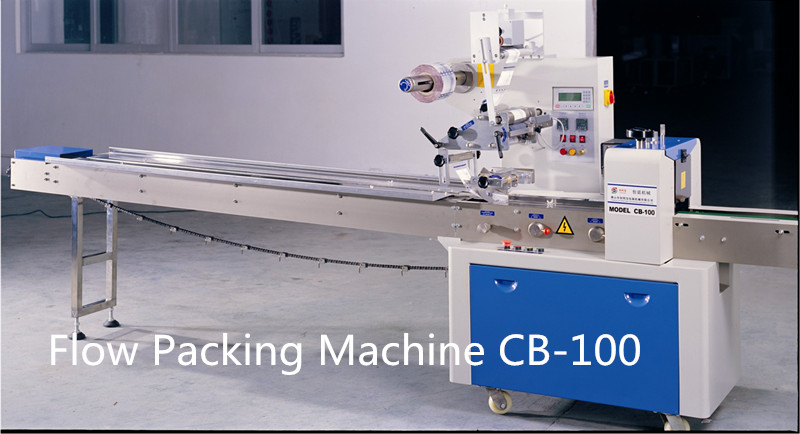

Automatic chocolate bar packing machine

Scope of application

Suitable for regular products like moon cake, biscuit, bread, candy, medicine, daily article, hardware, carton, tray etc

Sample display

Functional Description

The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine GMP health requirements.
Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
Machine can be turned off by position; fault is self-diagnosed and displayed clearly.
Counting automatically, the packaging production’s counting is accuracy.
Machine design and convey system is simple. The machine is convenient to maintain.
The machine can be equipped with gas charging device and production date code system according to client’s packaging requirements.

Technical Specifications

Model	CB-100
Single knife	Bag size: L (120-290) × W (30-100) × H (3-35) mm
Single knife	Speed: 100 bags/min
Double knife	Bag size: L (60-145) × W (30-100) × H (3-35) mm
Double knife	Speed: 200 bags/min
Thickness of film	30-70 um
Width of film	≤220 mm
Dimension of film roll	outer diameter ≤300 mm inner diameter ≤75mm
Power requirement	220V, 50HZ, 2.75KW
Machine size	L 3900* W 850* H 1500
Machine Weight	550KG
Optional device	printer, gas charging device, feeder, tidier

Origin of each Components

Touch s creen: Siemens/Germany Switch series: Schneider/French

PLC controller: Siemens/Germany Module: Siemens/Germany

Servo motor: TECO/Taiwan Inverter: Schneider/French

Relay: Omron/Japan Date printer: Dikai/Shanghai

S olid phase : Schneider/French P hoto-sensor: SICK/German

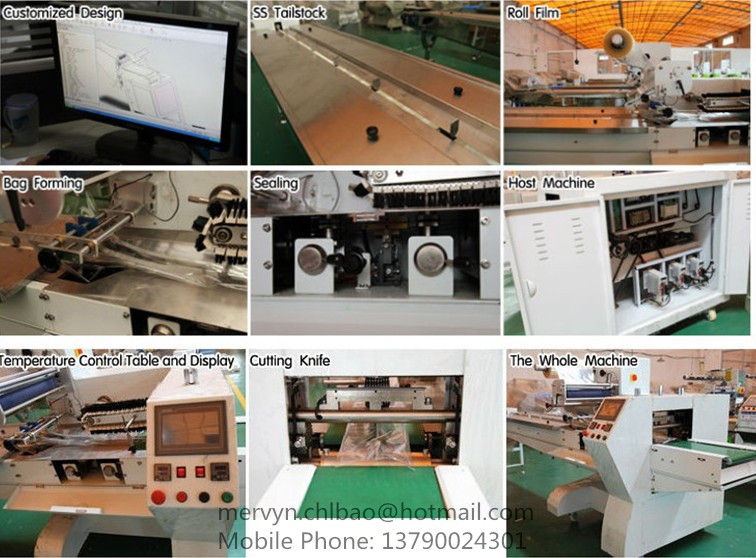

Product Details

Heater bar : 2pcs Hex driver : 1set

Solid-state relay : 1 pcs Adjustable wrench : 1pcs

Cutter : 2pcs Screwdriver : 2 pcs

EACH CLIENT CAN ENJOY THE FOLLOWING SERVICES

1) Free consultation service before, during, and after sales;

2) Free project planning and design services;

3) Free debugging of equipment until everything is functional;

4) Free management of equipments' long distance shipping;

5) Free training of equipment maintenance and operating personally;

6) Free new production techniques and formulas;

7) Provide 1 year complete warrantee and lifetime maintenance service

- With more than 15 years expertise and experience.

- Embrace flexibility and professionalism.

- No lowest price but always value for money.

- We treat our staffs and suppliers as respectful partners.

- We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.

- Provide customized services for special orders according to specifications.

Long-term customers are happy customers and repeated customers:The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use and reliable equipment.

Type:	Other	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Machinery & Hardware,Textiles
Packaging Type:	Bottles,Stand-up Pouch,Bags,Film,Pouch	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V 380V	Power:	2.75KW
Place of Origin:	Guangdong China (Mainland)	Brand Name:	Chlbao chocolate bar packing machine	Model Number:	CB-100
Weight:	550kg	Dimension(LWH):	39008501500MM	Certification:	CE,SGS,BV
After-sales Service Provided:	Engineers available to service machinery overseas	Useal Range:	Food and Non-food	Convertion:	Imported Panasonic PLC control .
Motor:	chocolate bar packing machine With Yongkun	Screen:	chocolate bar packing machine With Touch Screen	Frame:	chocolate bar packing machine With Carbon Steel
Printer:	chocolate bar packing machine With Dikai	Function:	Configue The defense package	Temperature Control:	Intelligent
Charcterisit:	Anti-cut Material Functions	Key Word:	chocolate bar packing machine
