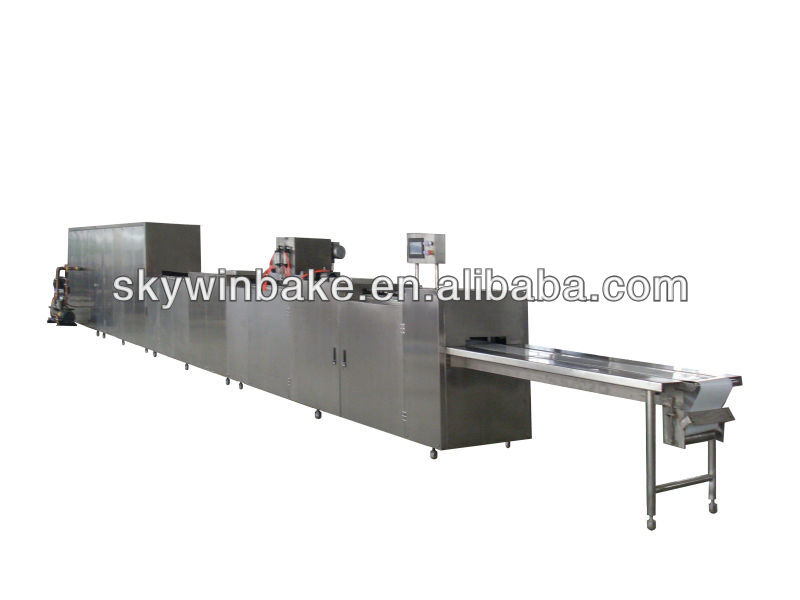

automatic chocolate bar production line,China skywinbake price supplier

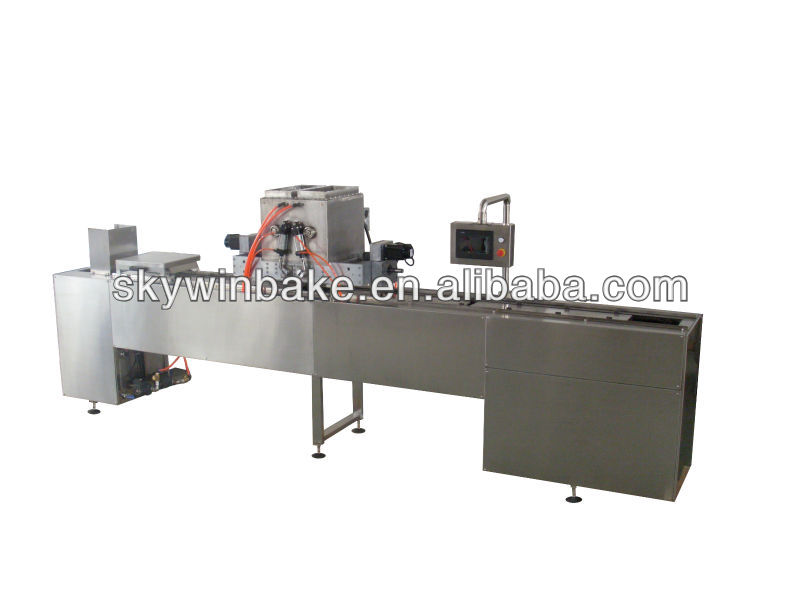

The machine is a special equipment for chocolate casting form. Besids pure chocolate, chocolate with filling, multi-colours and multi-tastes can be produced. The machine set of the second baking mold, pouring three times, three vibration, three cooling, transmission, automatic ejection in one multi-casting machine.

This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.

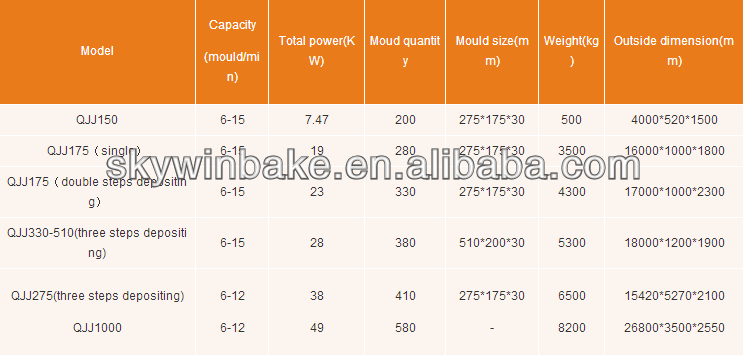

Main parameter:

Production ability: 10-20 moulds/minute

Mould dimension: With lug: 280× 200× 300mm

Without lug: 275× 175× 30mm

General power: 31.5KW (include refrigerate machine)

Weight: 5200KG

Outside dimension: 1700(include 200cm length transportation table)*100*235cm
