Specifications:
1.Adjustable bag size and packing speed.
2.25-180bags/min.
3.CE certificate.

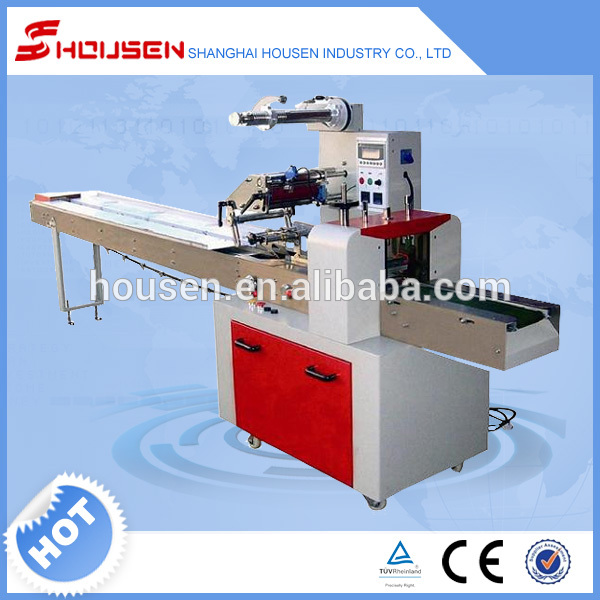

Packing samples of Automatic chocolate bar Wrapping Machine
Applications
Packing various kinds of regular objects such as: Cookies Napkin, biscuits, women healthy products, medical products, daily appliances,soap, hardware parts handkerchief, disposable tableware , products in tray, etc.
Advantages
1. Reliable and stable system, low maintenance, programmable controller.
2. Video-display contains length of packing film, speed, output, temperature of packing etc.
3. Adopt PLC control system, reduce mechanical contact.
4. Frequency control, convenient and simple.
5. Bidirectional automatic tracking, color control patch by photoelectric detection
6. The main electrical elements adopt well-known international brands.
Parameters
| Model |
HSH-120 |
HSH-320 |
HSH-450 |
| Max film width |
240mm | 420mm | 520mm |
| Bag making length | 60-160mm | 80-200mm | 100-300mm |
| Bag making width | 35-100mm | 40-150mm | 30-170mm |
| Bag making height | 5-35mm | 5-50mm | 5-80mm |
| Packing speed | 35-180bags/min | 25-180bags/min | 35-180bags/min |
| Power | 220V 50Hz 3.4KW | 220V 50Hz 3.4KW | 220V 50Hz 4.8KW |
| Dimension | 4000×920×1600mm | 4000×1020×1600mm | 4000×1020×1600mm |
| Weight | 500KG | 550KG | 600KG |
Machine details
Optional devices
1.Ribbon printer
2.Air compressor
3.Nitrogen filling device
4.Gusset device
5.Hole punch device
Packing details:
Basic Service
1. T echnical support
2. L oading inform
3. V ideo for debugging
4. C ustomers' require ments is welcome
Company info:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Packing Machine | 40 Sets / Month | 350 Sets |
| Market | Revenue(Previous Year) |
Total Revenue (%) |
|---|---|---|
| North America | confidential | 1.0 |
| South America | confidential | 10.0 |
| Eastern Europe | confidential | 15.0 |
| Southeast Asia | confidential | 5.0 |
| Africa | confidential | 10.0 |
| Mid East | confidential | 3.0 |
| Central America | confidential | 10.0 |
| South Asia | confidential | 10.0 |
| Domestic Market | confidential | 36.0 |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s)Used | Condition |
|---|---|---|---|---|
| Vernier Caliper | Shanghai | 3 | 3.0 | Acceptable |
| Outside Micrometer | Guilin, 0.01mm | 2 | 3.0 | Acceptable |
| Micrometer Caliper | 00000315 | 3 | 2.0 | Acceptable |
|
Assembly |
Performance Test |
Packing |
| Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date--Expired Date | |
|---|---|---|---|---|---|
|
CE |
Ceprom Product Certification Body | 175-CI-32012 | Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y | 2012/01/11 --- 2049/12/31 | |
Welcome to your inquiry, will reply in 24 hours!!!
| Type: |
Wrapping Machine,Other
|
Condition: |
New
|
Application: |
Food
|
| Packaging Type: |
Bags,Film,Foil
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
3.4KW
|
| Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
HOUSEN
|
Model Number: |
HSH-320
|
| Dimension(L*W*H): |
4000*1020*1600mm
|
Weight: |
600KG
|
Certification: |
CE
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Production Capacity: |
25-180bags/min
|
Bag Width: |
40-150mm
|
| Bag Length: |
80-200mm
|
Packing Height: |
5-50mm
|
Packing Material: |
OPP/CPP PT/PE KOP/CPP ALU-FOIL
|
| Warranty: |
one year
|
Language: |
English
|
