automatic chocolate deposit production lines chocolate bar making machine,China LST price supplier

automatic chocolate deposit production lines chocolate bar making machine
FOB Price:Price can be negotiated
Production Capacity:10 Set/Sets per Year
Payment Terms: US $1 - 40,000 / Set
Update Time:2014-09-28
Product Description

this is the idol equipment of producing pure chocolate, center filled chocolate, two heads chocolate and biscuts chocolate.

Specifications

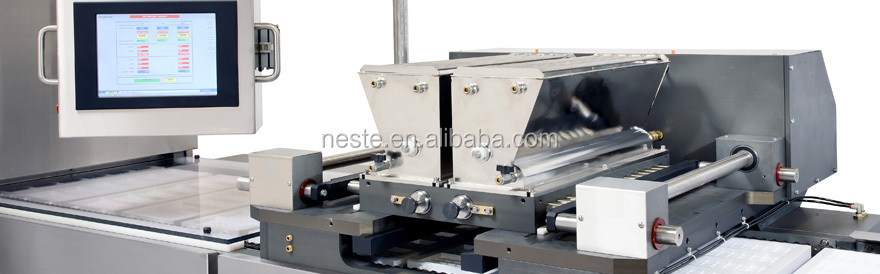

moulding machine:
1. fully automatic or semi-automatic

2.Can adjust the production batch size

moulding machine

Applications :

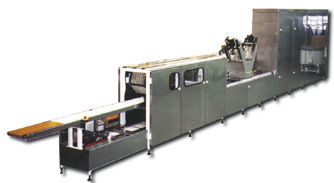

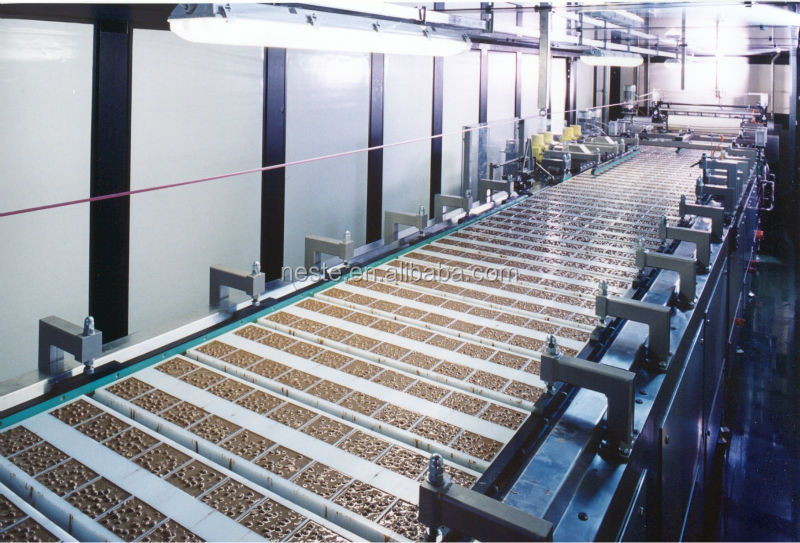

1.The molding line is for chocolate deposit forming.

2.The whole process is   fully automatic  including depositing, mould plate vibrating, cooling, demoulding, conveyingand plate heating.

3. You can choose one head semi-automatic type, two heads orthree heads for molding line for different products.

4.This line is suitable for   pure chocolate, center filled chocolate, two-color chocolate, four-color chocolate,and amber or agate chocolate .



Specifications

chocoalte equipment /chocolate making machine
electrical control

automatic mould depositing

automatic mould heating

.Small Capacity Professional Chocolate Equipment /chocolate making machine

(Capacity: 50~70 kgs/h  10hours x50Kgs/h=200~700 Kgs/shift)



This small equipment the professional equipment for producing chocolate. The tempered chocolate Paste is filled by depositor to the heated moulds, then vibrated to throw off the air bubble in chocolate and make chocolate to get uniform distribution. After these processes, chocolate will have the required outlook and the best quality.

It can produce out good quality chocolate products such as central filling, small nuts pieces mixed (grain is less 3mm) chocolate and Pure chocolate products.



Model

LST-1000

Production capacity   ( kg/shift)

200~700

Speed of stroke       ( n/min)

6~12

Mould heating and fan power

6kw

Mould temperature

24~45

Vibrating motor power

1.1kw

Vibrating time

30~60s

Depositing motor power

1.5kw

Stirring motor power

0.5kw

Circulating hot-water power

4.5kw

Circulating pipe water pump power

0.5kw

Moulds size and numbers needed

300x225x30mm

100pieces needed

Compressed air consumption

Compressed air pressure

2.5m3/min

0.65Mpa

Gross weight            (Kgs)

800

Dimension

1.Mould heating unit:

L1700xW1045xH950mm

2.Depositing unit:

L1575xW1045xH1130mm

3.Vibrating unit:

L1500xW1045xH850mm

  automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine

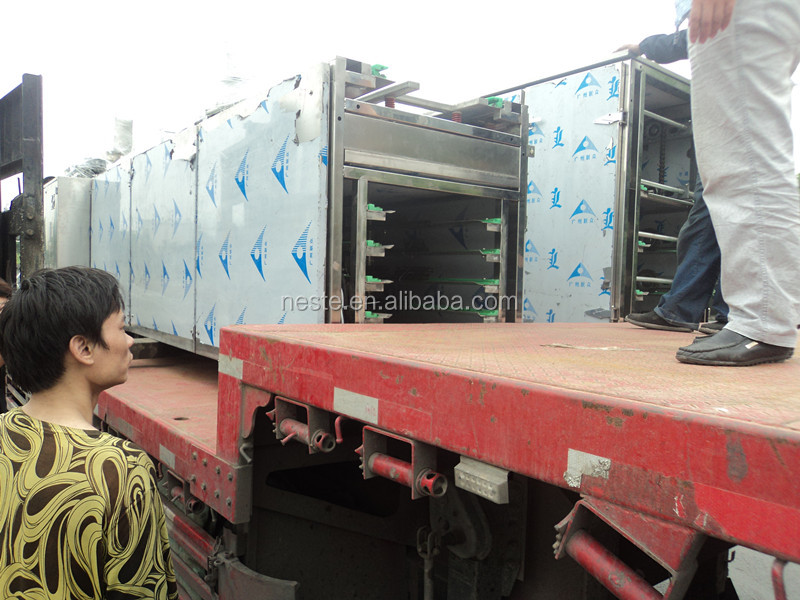

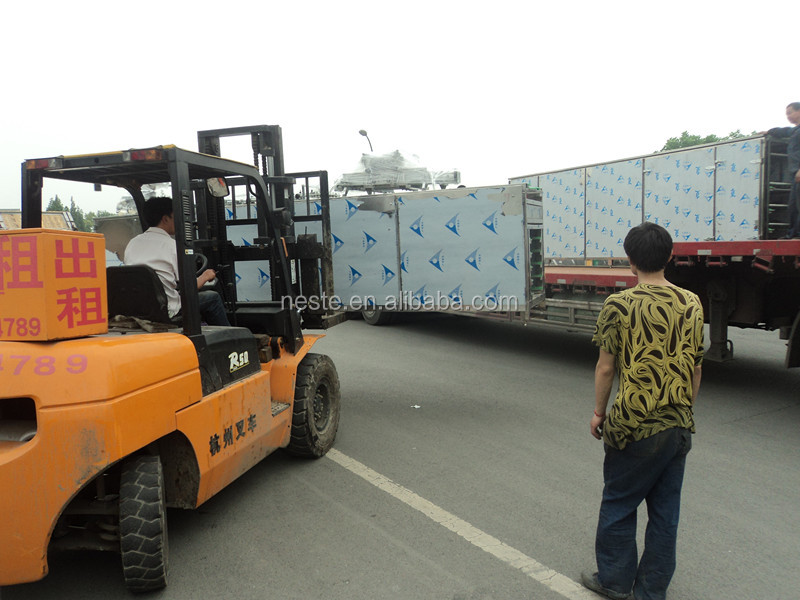

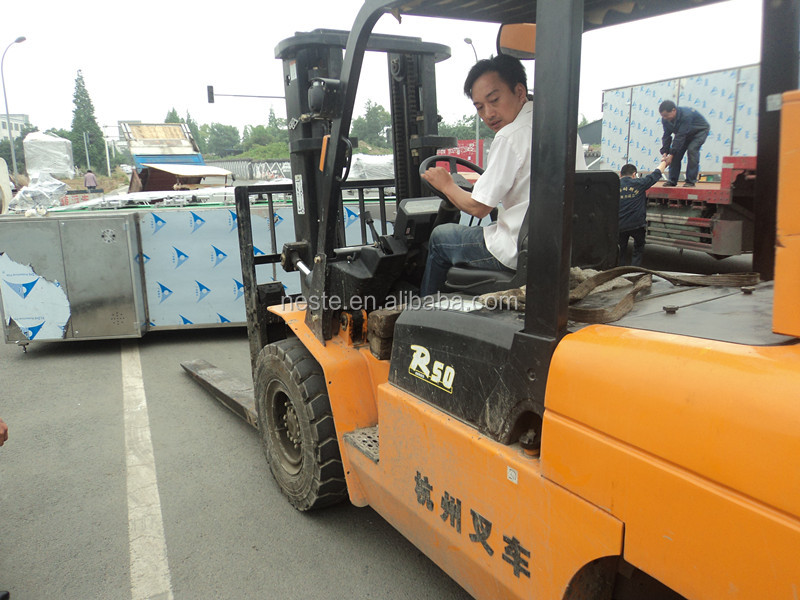

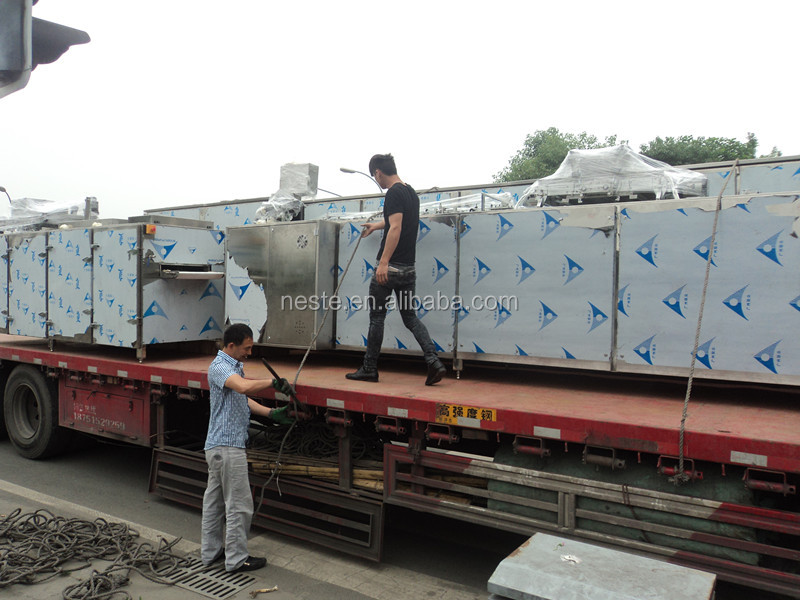

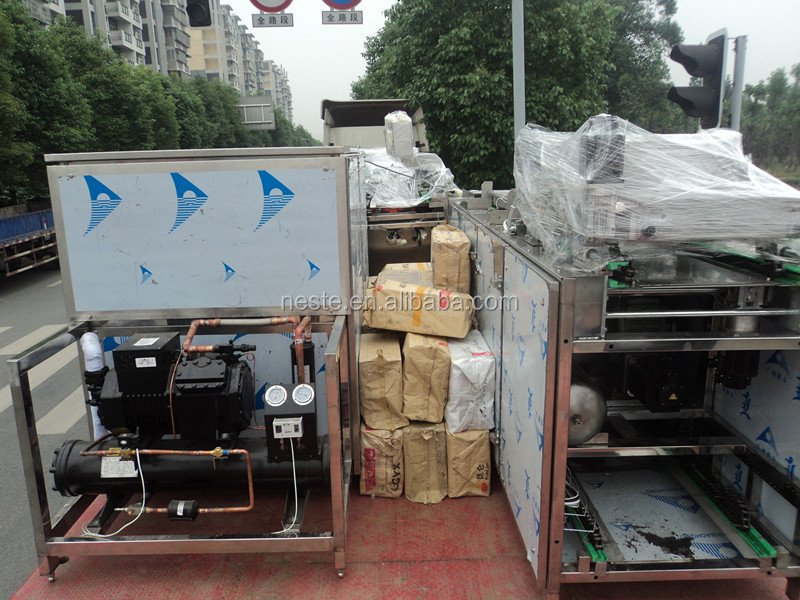

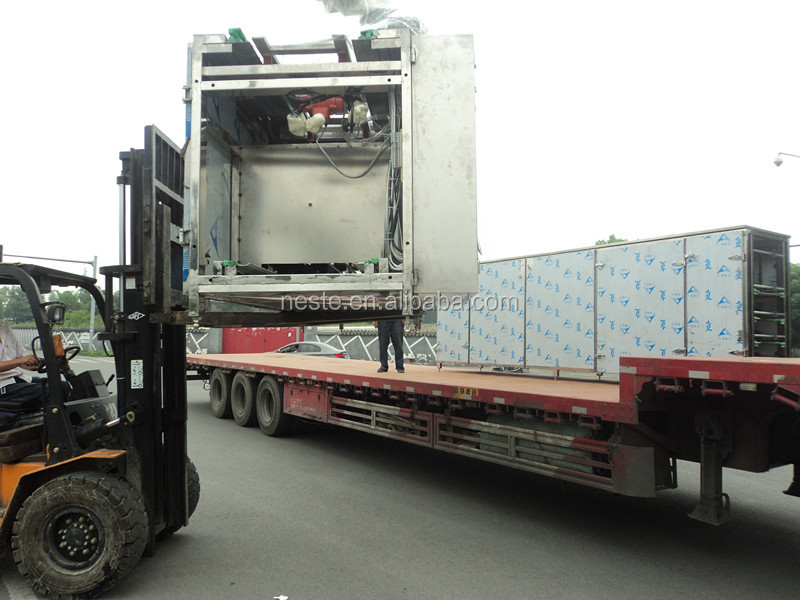

Packaging & Shipping



automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine automatic chocolate deposit production lines chocolate bar making machine



Condition:
New
Place of Origin:
Sichuan China (Mainland)
Brand Name:
LST
Model Number:
LSTJ2000
Application:
Biscuit
Voltage:
330/380V
Power(W):
24
Weight:
4000kg
Dimension(L*W*H):
18000*1500*1900mm
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Other Products
Company Profile
Name: Chengdu LST Science And Technology Co., Ltd.
Main Products: full-automatic chocolate depositing machine,oatmeal chocolate molding equipment,cereal chocolate molding production line,chocolate enrobing production line,Chocolate pouring line
Business Type: Manufacturer, Trading Company
Total Employees: 11 - 50 People
Established Year: 2013
Main Markets: Domestic Market, South Asia, Eastern Asia, Mid East, Africa
Address: 4 Group, Zhangjianian Village, Dragon Industrial Port, Qingyang District
Our company is a high-tech enterprise with many professional engineers and advanced production lines of chocolate food machinery. We are engaged in research and design, projection consultation, development and manufacturing chocolate food machinery. Our company was established in 2009, and we have more than 5 years experiences in this field. more
