Automatic Cocoa Powder Filling Machine for Packaging(FDA&cGMP Approved)

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Update Time:2014-09-20

Contact Supplier

Product Description

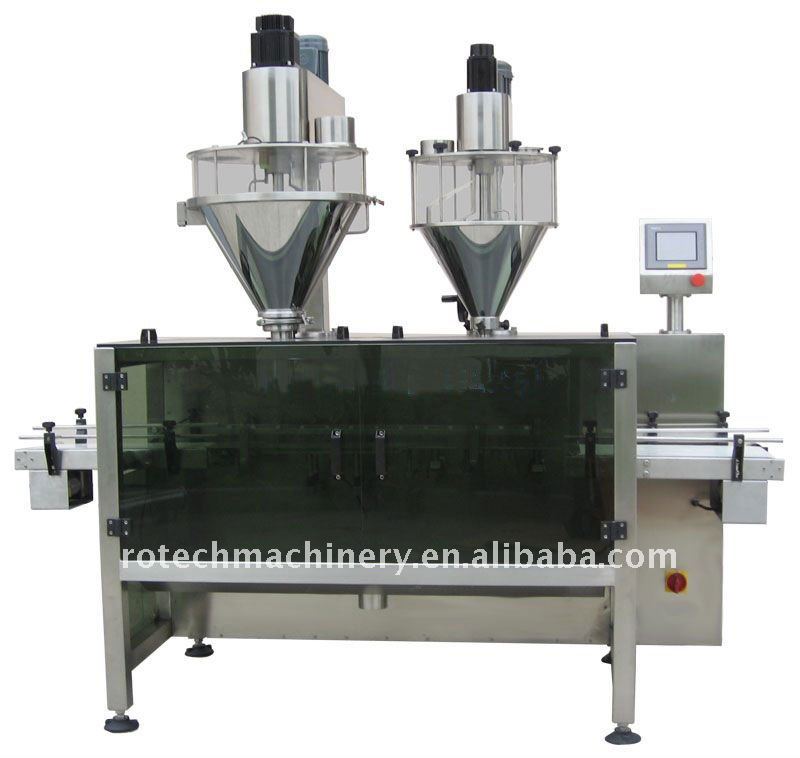

Automatic COCOA POWDER Filling Machine for Packaging(FDA&cGMP Approved)
Rotech Automatic Powder Filling Machine is widely used

Automatic Cocoa Powder Filling Machine for Packaging

Desi gn and Manufacturing According to FDA&cGMP Standard

DESCRIPTION

This machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in packing milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Main Features

1. Double fillers, Main & Assist filling to keep work in high-precision.

2. Pneumatic can-up and horizontal transmitting is controlled by computer system, be more accurate, more speed.

3. Servo motor and servo driver control the screw, keep stable and accurate

4. Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.

5. PLC & touch screen make it be easy of operation.

6. Fast-respond weighing system make the strongpoint to rea

7. The handwheel make the exchange of different filings to be easily.

8. Dust-collecting cover meet the pipeline and protect environment to pollution.

9. Horizontal straight design make the machine in little area

10. Settled screw setup make no metal pollution in producing

11. Process: can-into → can-up → vibration → filling → vibration → vibration → weighing & tracing → reinforce → weight checking → Can-out

TECHNICAL DATA

Measuring Mode	Dual auger filling & weighing
Filling Weight	100 - 2000g
Container Size	φ:30 -140 H: 50 - 280mm
Filling Accuracy	100 - 500g,≤±1g; >500g, ≤±2g
Filling Speed	Above 45 cans/min(#502); Above 50 cans/min(#307,#401)
Total Power	3P / 208V-415V 50/60Hz
Air Supply	3.3KW
Total Weight	450kg
Air Supply	6kg/cm2 0.3m3/min
Overall Dimensions	2250×1000×2100mm
Hopper Volume	50L(main) 35L(Assist)

Type:	Filling Machine	Condition:	New	Application:	Food
Packaging Type:	Cans,Bottle,Carton,as required	Packaging Material:	Plastic,Paper,Metal,Glass,as required	Automatic Grade:	Automatic
Driven Type:	pneumatic,electric	Power:	3.3 kW	Place of Origin:	Shanghai China (Mainland)
Brand Name:	Rotech	Model Number:	DCS-2B-3	Filling Weight:	100 - 2000g
Filling Accuracy:	100 - 500g,≤±1g; >500g, ≤±2g	Filling Speed:	Above 45 cans/min(#502); Above 50 cans/min(#307,#401)	Hopper Volume:	50L(main) 35L(Assist)
