Automatic cocoa powder filling machine/ powder packaging machine,China JENPACK price supplier

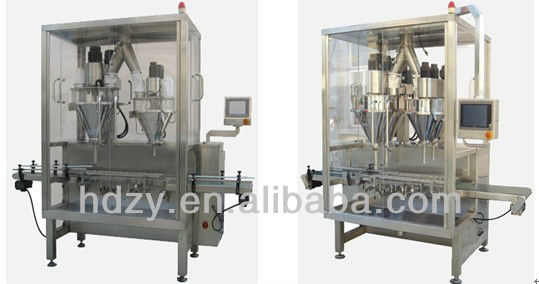

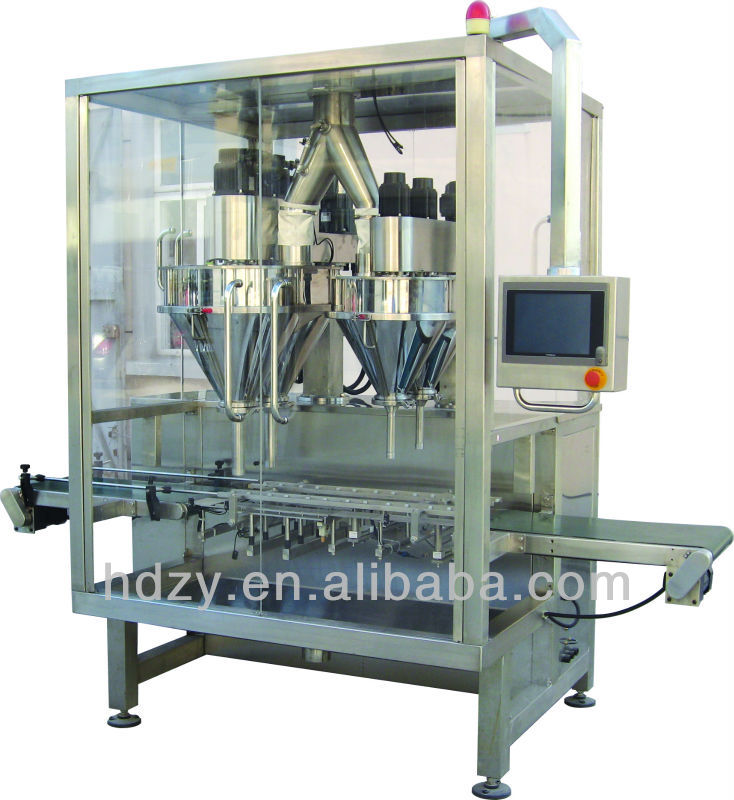

Automatic cocoa powder filling machine/ powder packaging machine

FOB Price:Price can be negotiated

Production Capacity:6 Set/Sets per Month

Update Time:2014-09-20

Contact Supplier

Product Description

1.Two Twins Hoppers with high speed and accuracy.
2.Filling weight range:100-2000g.
3.High output: 80-100 cans/min.

Descriptive abstract
This series machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on

Main Technical Date

Model	JN-SL-520
Dosing mode	Double lines dual filler filling with online weighing
Filling Weight	100 – 2000g
Container Size	Φ60-135mm; H 60-260mm
Filling Accuracy	100-500g, ≤±1g; ≥500g,≤±2g
Filling Speed	Above 100 cans/min(#502),Above 120 cans/min(#300 ~ #401)
Power Supply	3P AC208-415V 50/60Hz
Total Power	5.1 kw
Total Weight	650kg
Air Supply	6kg /cm 0.3cbm/min
Overall Dimension	2920x1400x2330mm
Hopper Volume	85L (Main) 45L (Assist)

Main features

1. It consist of four filling heads and two in a group , in two separated lanes .

2. The whole filling process was composed of two stages:1st stage Bulk fill to pre-set value approx 90% of the total and the 2nd stage top-up fill to target value.

3. Total PLC control with integrated HMI.

4. No container-No fill ,so no wastage of powder.

5. Pneumatic cans clamping system eliminates chances of cans transfer until cans gets filled.

6. Filling Procedure: Feeding and clamping Cans → Lifting Cans→ vibrating cans →Bulk fill → vibrating Cans → vibrating cans → weighing & tracking(Load cell)→ Top-up filling →weight checking(load cell) → Reject or accept(Reject unqualified filled containers )

7: With filling head height adjuster which is controlled by handwheel.

8: With linear design make the machine a space saver.

Packaging Machine" data-width="600" data-height="800" ori-width="600" ori-height="800" />

Type:	Other,Powder packaging machine	Condition:	New	Application:	Food,Medical,Chemical
Packaging Type:	Cans,Bottles	Packaging Material:	Metal	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V 50/60Hz	Power:	5.1kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JENPACK	Model Number:	JN-SL-520
Weight:	650kg	Dimension(LWH):	292014002330mm	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Dosing mode:	Double lines dual filler filling with online weighing	Filling Accuracy:	100-500g, ≤±1g; ≥500g,≤±2g
Air Supply:	3P AC208-415V 50/60Hz	Hopper Volume:	85L(Main) 45L (Assist)	features:	stainless steel structure
