Automatic cocoa powder packing machine,Powder Filler Machine,powder filling machine,China JENPACK price supplier

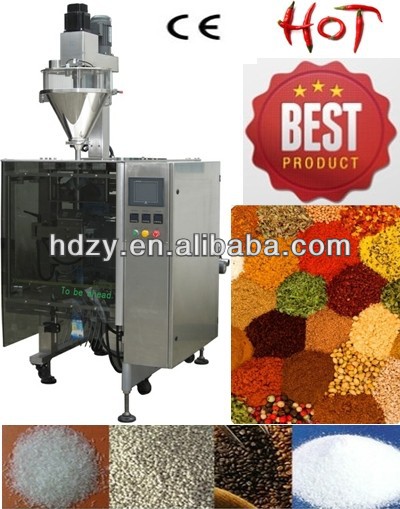

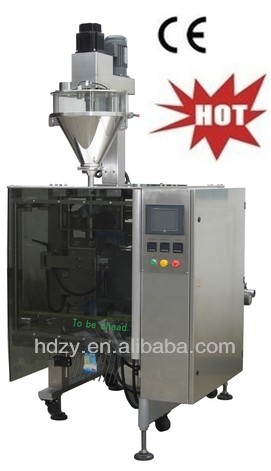

Automatic cocoa powder packing machine,Powder Filler Machine,powder filling machine

FOB Price:Price can be negotiated

Production Capacity:12 Set/Sets per Month

Update Time:2014-09-20

Contact Supplier

Product Description

Lass="description"> High speed ,
Servo conrol
Plc, Touch screen system
Intelligent temperature control system

Descriptive abstract

This machine completes the whole packing procedure of measuring, loading materials, bagging, Date printing, charging (exhausting) and products transporting automatically as well as counting. can be used in powder and granular material. like milk powder, Albumen powder,solid drink, white sugar, dextrose, Coffee powder, and so on.

Specifications

Model	JN3A+ZL420	JN3B+JW520
Dosing mode	Auger Filler	Auger Filler
Bag Sizes	L:80-300mm W:80-200mm	L:100-320mm W 100-250mm
Packing Speed	25 – 80 bags/min	25-70 bags/min
Packing Accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1%	100-500g, ≤±1%; >500g, ≤±0.5%
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total Power	4.7kw	4.4kw
Total Weight	630kg	900kg
Air Supply	6 kg /m ² , 0.15m ³ /min	6 kg /m ² , 0.25m ³ /min
Overall Dimension	165013002580mm	143012002600mm
Hopper Volume	35 L	50L

Main features
Simens PLC controller, Neumatics brand festo

Touch screen interface for easy operation.
Intelligent temperature control system.
Servo drive for film pulling system.
Photo sensor for automatic tracking eye marks.
Date printer and film feeding system synchronous working.
Servo motor drive screw, split hopper could be easy open and clean.

Stainless steel structure

Type:	Filling Machine,Multi-Function Packaging Machine	Condition:	New	Application:	Food,Medical,Chemical
Packaging Type:	Bags	Packaging Material:	Metal	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V	Power:	4.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JENPACK	Model Number:	JN3A+ZL420
Dimension(LWH):	165013002580mm	Weight:	630KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Body shell:	Stainless steel 304	Packaging Type::	Stand-up Pouch,Bags,Film,Foil
Function:	Filling,Wrapping,Sealing

Company Profile

Name: Shanghai Hongde Zhiye Packaging Technology Co., Ltd.

Main Products: Semi-automatic Auger Filling Machine,Automatic Back Sealing Packing Machine for powder,Vertical automatic Form Filling Seal Machine,powder packing machine,box machine

Business Type: Trading Company

Total Employees: 11 - 50 People

Established Year: 1999

Main Markets: Southern Europe, Northern Europe, Central America, Western Europe, Mid East

Address: 982 of Thomas town,lane 900 Sanxing road,Songjiang district Shanghai,China

Our company, established in 1999, is specialized in designing packing lines and supplying packaging machines according to different material characters to meet different packing requirements. Our initial offering was an economical and highly reliable machine for powder and granular material and fluid material filling/packaging, featuring the simplified and non-sense design that can accurately dispense products with the minimum setup, maintenance and operator intervention.

We have rich experience in different forms of material packaging, whether your products are free flow or non flow, in fine powder form or granular form, liquid or cream. From pre-made containers to bags forming together with filling, small size or big size, you can find all suitable machines here. Our main products are listed as follows:

Auger filling machines for powder and small granular filling
Line weighers for granular material filling
Liquid filling machines
VFFS for different types of bag making when filling
Label machines for self adhesive labels and sleeve labels
Capping machines for Press caps and screw caps
Feeding machines, such as screw conveyors, vacuum feeders and baffle conveyors
Other equipment, such as blender mixers, heat sealers, sewing machines, carton machines, stock hoppers, etc. for the whole packaging lines

You can get high quality packing machines and the first-class sales services here with affordable prices. We promise, we do. The only thing that you should do is just give chances to us and then you will find the difference.
