Automatic Continuous Stretch-packaging Machine For Hard Box Filling Up,China Xiaokang price supplier

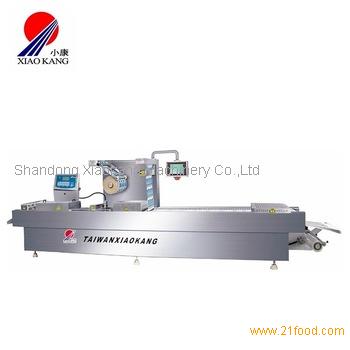

Automatic Continuous Stretch-packaging Machine For Hard Box Filling Up

FOB Price:Price can be negotiated

Production Capacity:100pcs/month

Payment Terms: FOB Qingdao

Update Time:2024-02-19

Contact Supplier

Product Description

1. Technical Data:

Upper film width： 393-394mm ，

Lower film width： 422mm
Vacuum ： ≤200Pa，

Compressed air： ≥0.6MPa

The filled gas pressure：≥0.2MPa

Air interface： ∮12PU tube
Cooling water： ≥0.15Mpa，

Power supply： 380V/50HZ
Total Power： 18KW，

Overall Dimensions： 6000×950×1860mm

Total weight： 2200kg

2. Configuration：

l Japan MITSUBISHI computer control

l Mitsubishi 10.4 inches large version GT2310 color Human-machine interface touch screen, push-pull type for control panel.

l Mitsubishi servo system controls stepper speed with high speed and precision.

l REGINA (European famous brand) chains Imported from Italy.

l Mitsubishi computer temperature control system, intelligent heating function, precise temperature control.

l Imported electrical equipment.

l Pneumatic parts adopt Japanese SMC valve terminal type pneumatic system.

l The original German (Busch) ra0203d environmental protection vacuum vacuum packaging machine with high vacuum degree without pollution special vacuum pump, Air capacity is 200 cubic meters per hour，The highest vacuum pump vacuum can reach 0.1 mbar，Germany (Busch) ra0111f high vacuum forming vacuum pump

l Imported photoelectric tracking system, available colorized tectorial membrane, guarantee for design position precisely.

l The whole machine is made of 20mm thick aluminum magnesium alloy plate structure

l Forming, sealing and lifting adopt pneumatic lever independent lifting locking system.

l Combination sealing mould, integral sealing cushion, and sealing-heating plate are multiple heating tube inlay.

l Cross-cutting knife operates independently and controlled by computer. This system can be turned on or off through the touch screen.

l The upper and lower film use the new control system.

l Equipped with imported automatic recycle system for wasted and scrap.

l Equipped with warning and protection system for power default phase, reverse phase and overtension, and lubrication of machines, which can help for operator use and adjust easily.

l Forming, sealing, horizontal knife and longitudinal knife are all equipped with safety protection system and safety cover. System can automatic stopping in case of emergency. At the meanwhile, screen can show faults of system and appropriate solutions.
