Automatic Corn flakes/Breakfast cereals machine/Extruder/Processing Line,China PX price supplier

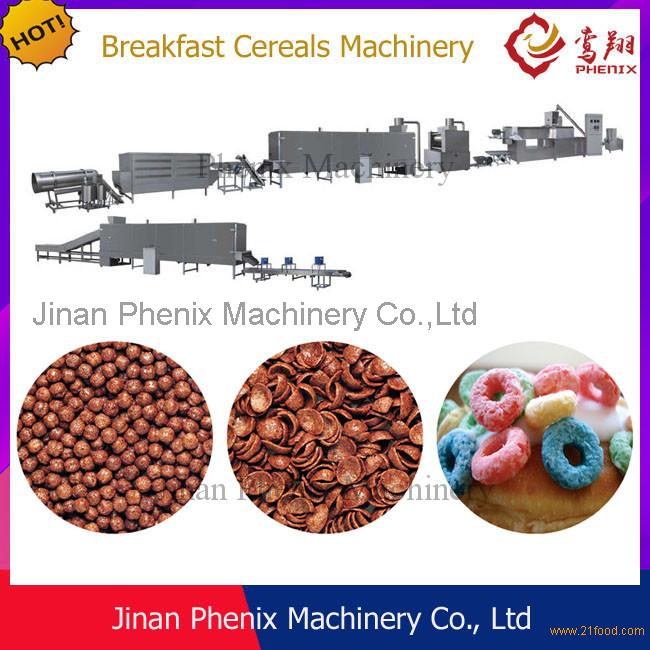

Breakfast cereal machine

1. Description:

Breakfast cereals machine uses grain as the basic raw material. By the processing line it is processed to flakes instant food which is pressed by particle. The outstanding feature is that it is rich in composite carbon compounds and dietary fiber. At the same time,cereals can not only strengthen much trace element, such as vitamins and minerals, but also add cocoa and sugar, such as honey,maltose, etc. After adding into coffee,milk,yogurt,or functional drinks, we can directly eat it. Children can also eat it as sweet and brittle leisure snack food.

2. Raw materials: adopts corn, rice, wheat, oat, barley etc as ingredients

3. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

4. Capacity: 150kg/h, 240kg/h, 500kg/h

5.Flow chart: Mixing system---Extrusion system---- -Drying system----Sugar coating system---Drying system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel

8. Technical Parameters

Model     Installed power      Real power     Output    Dimension

PX65      111.5kw  63kw      100-150kg/h   26000x1200x2200mm

PX70      145kw     86kw      200-240kg/h   29000x1500x2200mm

PX85      120kw     127kw     400-500kg/h   33000x3500x4300mm

9. Package: Outside package: Standard export wooden case. Inner package: stretch film
